PB 19542LT (960120122-01) - Poulan Pro Lawn Tractor (2012-08) SEAT Parts Diagram

Lawn Tractor

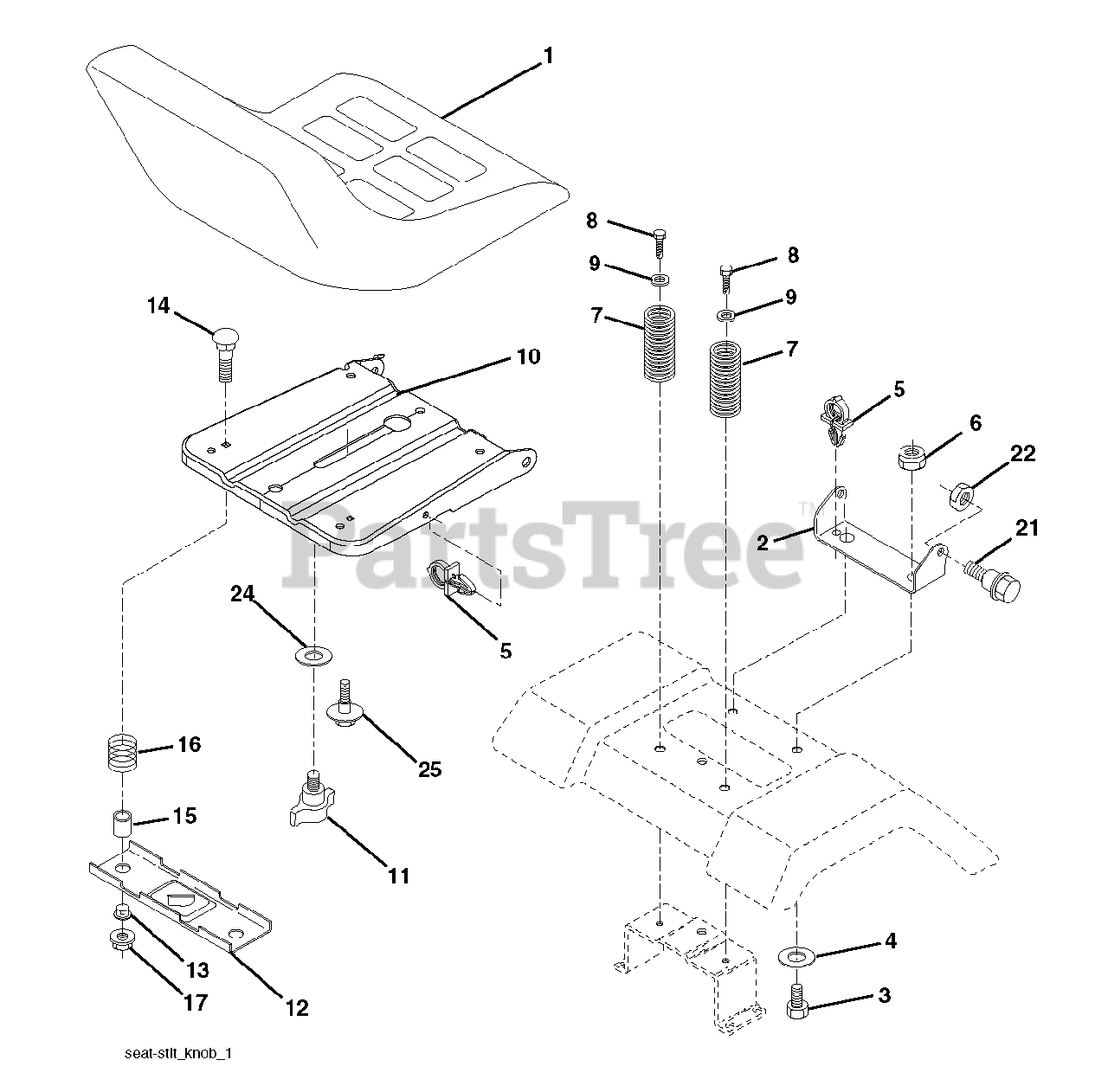

SEAT Parts Diagram

  • Title

1

Poulan 532188712

(Superseded to 532401043)

$

$

Not available

2

Poulan 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 871110616

BOLT, HEX 3/8-16X1

$4.99

$

In Stock, only 2 left!

0

4

Poulan 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

5

Poulan 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

9

Poulan 819131614

(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 532195530

PAN.ASM.SEAT.1SLOT

$21.99

$

Usually ships in 3-10 days

0

11

Poulan 532166369

KNOB.SEAT.ADJ.WINGNUT

$10.99

$

In Stock, only 1 left!

0

12

Poulan 532174648

BRKT.MNTNG.SWITCH.SEAT.BLACK

$10.99

$

Usually ships in 3-10 days

0

13

Poulan 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0

16

Poulan 532121250

SPRING

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

21

Poulan 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

25

Poulan 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0
