PB 195 H42 LT (960420036-02) - Husqvarna 42" Lawn Tractor (2008-01) Mower Lift Parts Diagram

42" Lawn Tractor

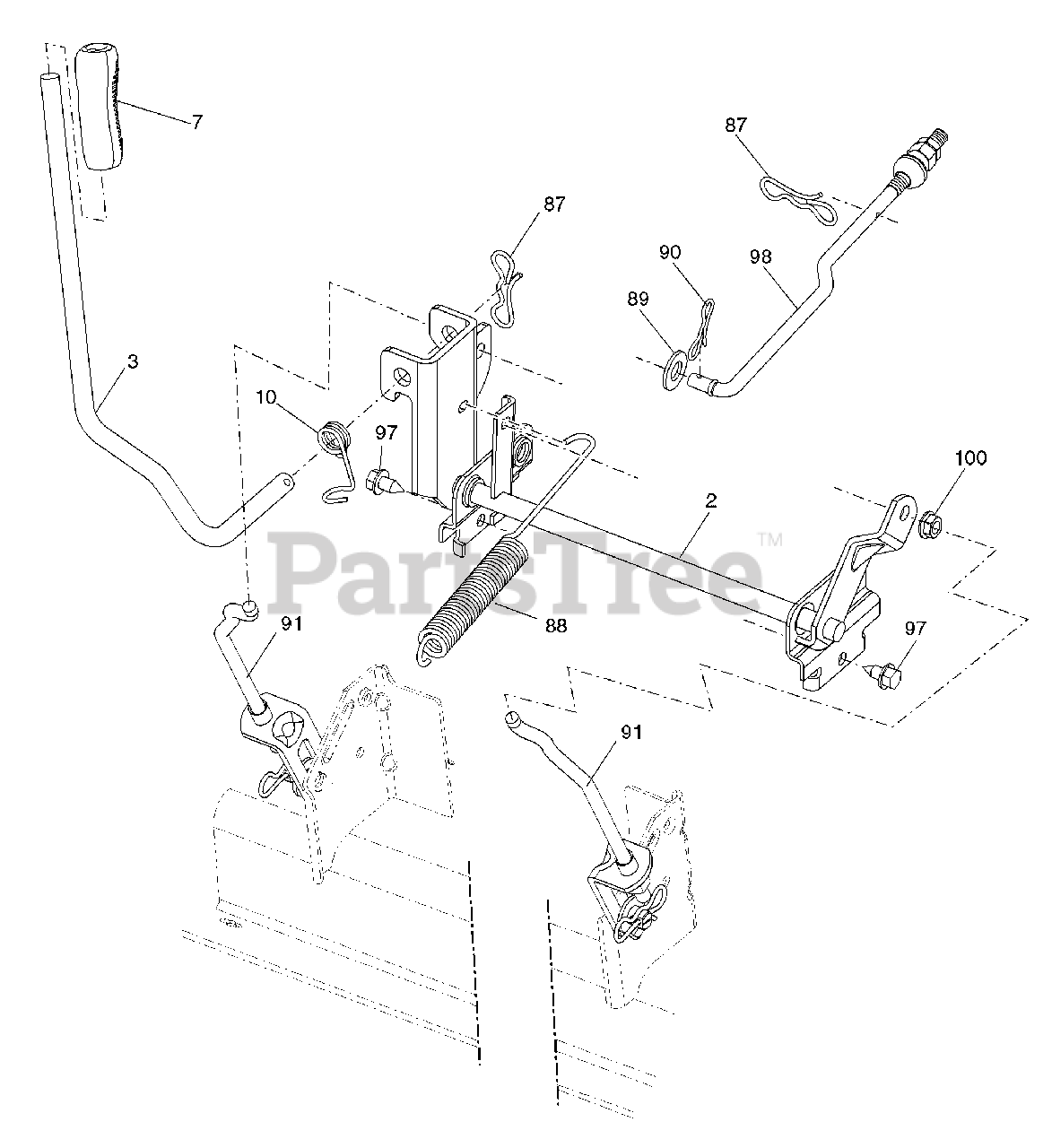

Mower Lift Parts Diagram

  • Title
2

Husqvarna 195223

Shaft Asm., Lift

$

$

Not available

3

Husqvarna 195231

Lever Asm., Lift RH
(Superseded to 532195231)

$

$

Not available

7

Husqvarna 196492X421

Grip, Lever

$

$

Not available

10

Husqvarna 196314

Spring Torsion
(Superseded to 532196314)

$6.49

$

In Stock, only 2 left!

0

87

Husqvarna 194209

Pin Cotter 7/16 Bow Tie Lock
(Superseded to 532194209)

$3.99

$

In Stock, Qty 7

0

88

Husqvarna 410710

Spring Lift Assist
(Superseded to 532410710)

$11.99

$

In Stock, Qty 6

0

89

Husqvarna 19191912

Washer Clear Zinc
(Superseded to 819191912)

$6.49

$

In Stock, Qty 10

0

90

Husqvarna 194208

Pin Cotter 5/16 Bow Tie Lock
(Superseded to 532194208)

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 195181

Link Lift Susp Mower Rear
(Superseded to 532195181)

$

$

Not available

97

Husqvarna 17000612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

98

Husqvarna 195270

Link Lift Susp. Front Mower
(Superseded to 532195270)

$11.99

$

In Stock, Qty 11

0
