PB 195 H42 LT (960420036-01) - Husqvarna 42" Lawn Tractor (2007-05) Steering Parts Diagram

42" Lawn Tractor

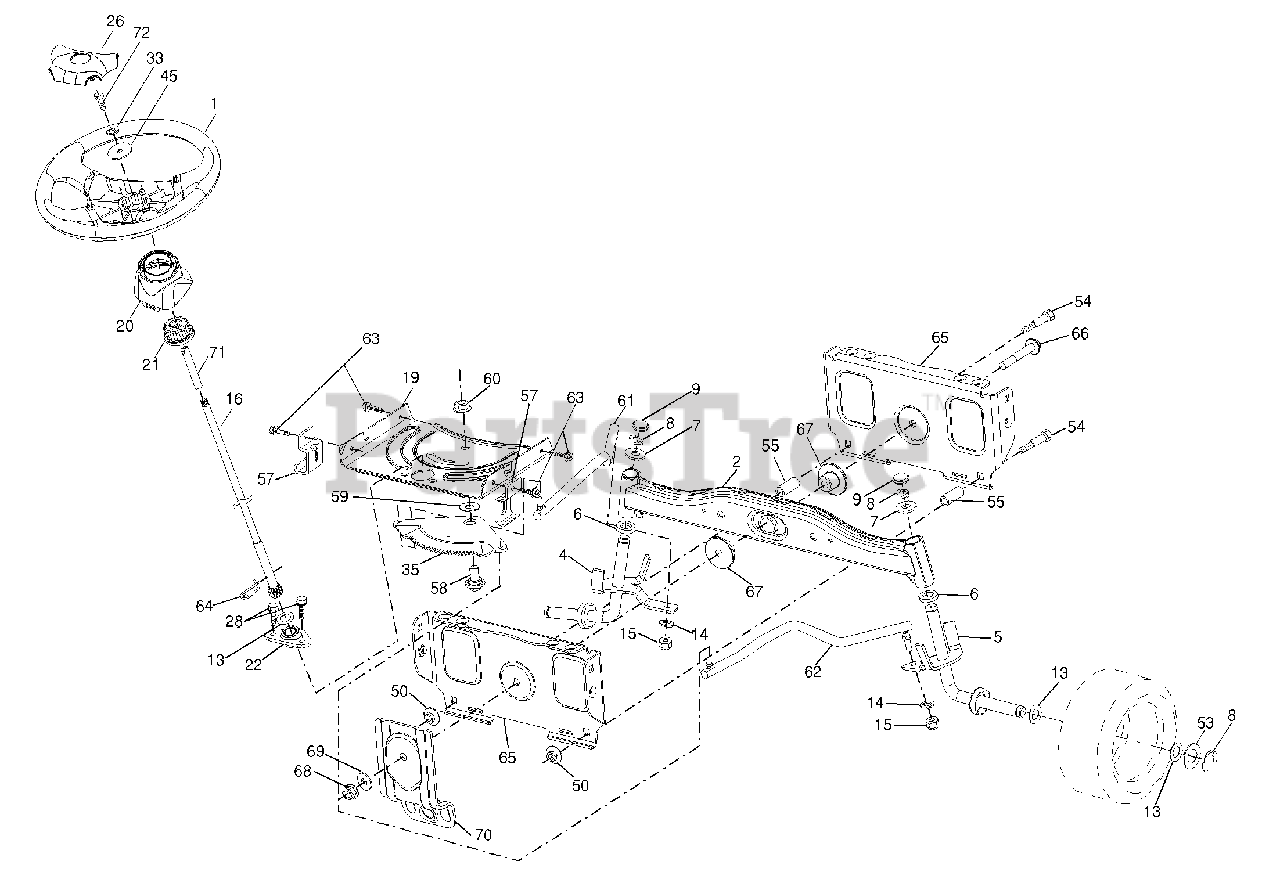

Steering Parts Diagram

  • Title
1

Husqvarna 186093X428

Wheel, Steering
(Superseded to 584462001)

$

$

Not available

2

Husqvarna 184706

Axle Asm., Front

$

$

Currently unavailable

4

Husqvarna 403087

Spindle Asm., LH
(Superseded to 532403087)

$17.99

$

In Stock, Qty 12

0

5

Husqvarna 403088

Spindle Asm., RH
(Superseded to 532403088)

$9.99

$

In Stock, Qty 20+

0

6

Husqvarna 6266H

Bearing, Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Husqvarna 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 12000029

Ring, Klip #T5304-75
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 121232X

Cap, Spindle
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

13

Husqvarna 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 10040600

Washer Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 73540600

Nut, Crown Lock 3/8-24 unf
(Superseded to 873540600)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 196074

Shaft Steering

$

$

Not available

19

Husqvarna 194729

Plate Steering
(Superseded to 532194729)

$18.99

$

Usually ships in 3-10 days

0

20

Husqvarna 198375X428

Boot, Steering
(Superseded to 532411291)

$17.99

$

In Stock, Qty 18

0

21

Husqvarna 186737

Adapter, Wheel Steering

$

$

Currently unavailable

22

Husqvarna 194845

Bushing, Strg. Blk

$

$

Not available

26

Husqvarna 186095X428

Insert, Wheel Steering
(Superseded to 532194603)

$53.99

$

Usually ships in 3-10 days

0

28

Husqvarna 17000612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 10040500

Washer Lock 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 194732

Gear, Sector Plate
(Superseded to 532194732)

$31.99

$

In Stock, Qty 20+

0

45

Husqvarna 19113812

Washer 11/32 x 2-3/8 x 12 Ga.
(Superseded to 819113812)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 73900600

Nut Lock Flg 3/8-16 unc

$

$

Not available

53

Husqvarna 188967

Washer Hardened .793 x 1.637 x .060
(Superseded to 532188967)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 74760636

Bolt Hex HS 3/8-16 unc x 2-1/4
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 197636

Spacer Brace Axle
(Superseded to 532197636)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 407465

Bracket Upstop
(Superseded to 532407465)

$6.99

$

In Stock, only 1 left!

0

58

Husqvarna 194747

Bolt Shoulder Sector Pivot CFM
(Superseded to 532194747)

$9.49

$

In Stock, only 3 left!

0

59

Husqvarna 194748

Washer Thrust Sector Steering
(Superseded to 532194748)

$7.49

$

In Stock, only 3 left!

0

60

Husqvarna 73971000

Nut Flange Lock 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Husqvarna 194740

Draglink LH
(Superseded to 532194740)

$12.99

$

Usually ships in 3-10 days

0

62

Husqvarna 194741

Draglink, RH
(Superseded to 532194741)

$

$

Not available

63

Husqvarna 17000512

Screw 5/16-18 x 3/4

$

$

Not available

64

Husqvarna 199849

Retainer Clip Spring Steering
(Superseded to 532199849)

$6.49

$

In Stock, Qty 8

0

65

Husqvarna 194734

Brace Axle Front
(Superseded to 532194734)

$43.99

$

In Stock, only 1 left!

0

66

Husqvarna 71020748

Bolt Hex Fghd 7/16-14 x 3 Serr
(Superseded to 871020748)

$6.49

$

In Stock, only 4 left!

0

67

Husqvarna 194737

Bushing PM Front Axle
(Superseded to 532194737)

$

$

Not available

68

Husqvarna 73900700

Nut Lock Flange 7/16-14 Gr. 5
(Superseded to 873900700)

$7.49

$

In Stock, Qty 14

0

69

Husqvarna 199162

Washer 1.5 x .505 x .118
(Superseded to 532199162)

$6.49

$

In Stock, only 1 left!

0

70

Husqvarna 196197

Bracket Deck Susp. Front
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0

71

Husqvarna 196075

Shaft Ext. Steering
(Superseded to 532196075)

$18.99

$

In Stock, only 2 left!

0

72

Husqvarna 74780572

Bolt 5/16-18 x 4.5 Gr. 5

$

$

Not available
