PB 195 H42 LT (960420036-00) - Husqvarna 42" Lawn Tractor (2007-08) Seat Parts Diagram

42" Lawn Tractor

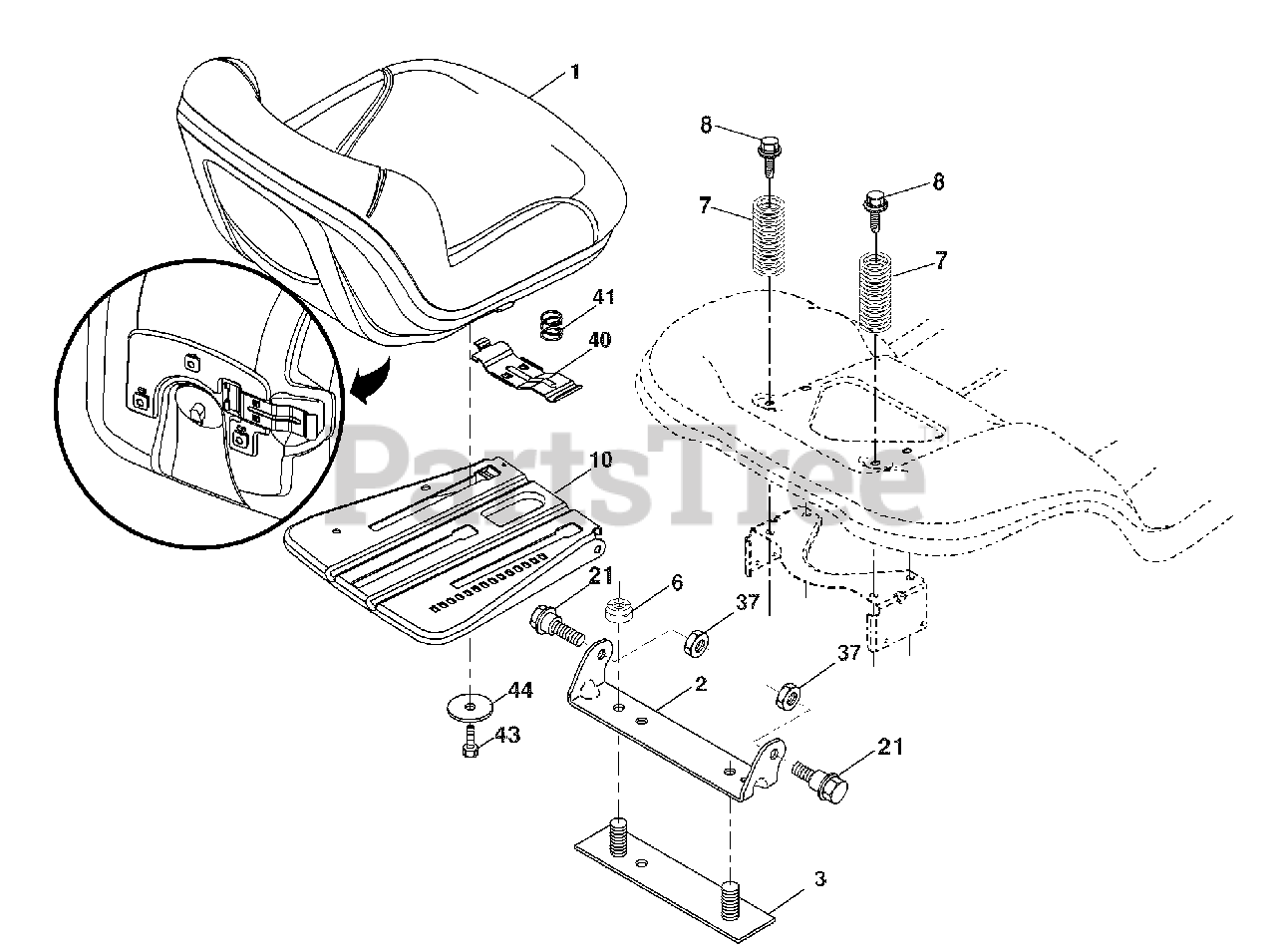

Seat Parts Diagram

  • Title

1

Husqvarna 406623

Seat
(Superseded to 532406623)

$193.99

$

Usually ships in 3-10 days

0

2

Husqvarna 180166

Bracket Pivot Fender
(Superseded to 532180166)

$13.99

$

In Stock, only 1 left!

0

3

Husqvarna 140675

Strap, Asm Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 73800600

Nut, Lock W/Ins. 3/8-16 unc

$

$

Not available

7

Husqvarna 124181X

Spring, Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 171877

Bolt 5/16-18 uncx 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 196977

Pan, Seat
(Superseded to 532196977)

$56.99

$

Usually ships in 3-10 days

0

21

Husqvarna 171852

Bolt, Shoulder 5/16-18
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 73800500

Nut, Lock 5/16-18 unc

$

$

Not available

40

Husqvarna 197661

Handle Slide
(Superseded to 584332801)

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 198200

Spring Latch
(Superseded to 532198200)

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 74760612

Bolt 3/8-16 UNC x 3/4
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 19133812

Washer 13/32 x 2 3/8 x 12 Ga.
(Superseded to 583789501)

$

$

Not available
