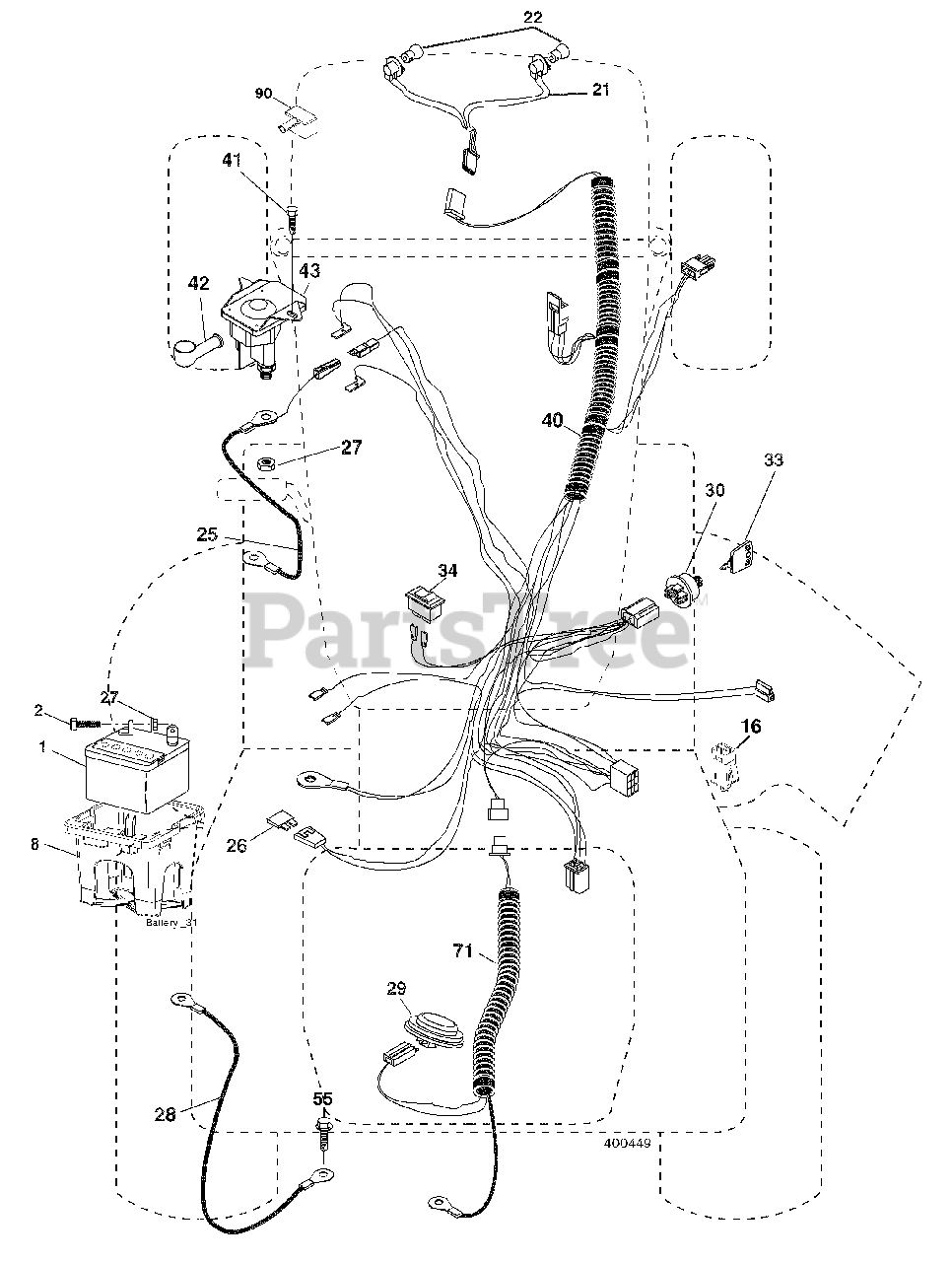

PB 195 H42 LT (960420036-00) - Husqvarna 42" Lawn Tractor (2007-08) Electrical Parts Diagram

42" Lawn Tractor

Electrical Parts Diagram

  • Title
1

$

$

Not available

2

Husqvarna 74760412

Bolt Hex Hd 1/4-20 unc x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 193228

Box Battery
(Superseded to 532193228)

$28.99

$

In Stock, only 1 left!

0

16

Husqvarna 176138

Switch Interlock
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

Husqvarna 183759

Harness Socket Light
(Superseded to 532183759)

$47.99

$

Usually ships in 3-10 days

0

22

Husqvarna 4152J

Bulb, Light # 1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 401662

Cable Battery 6 Ga. Red 14.5
(Superseded to 532401662)

$

$

Not available

26

Husqvarna 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 73510400

Nut Keps Hex 1/4-20 unc

$

$

Not available

28

Husqvarna 198885

Cable Ground 18" Rear Battery Blk 6 Ga.
(Superseded to 532198885)

$30.99

$

Usually ships in 3-10 days

0

29

Husqvarna 401545

Switch Seat
(Superseded to 532401545)

$39.99

$

In Stock, Qty 6

0

30

Husqvarna 193350

Switch Ign
(Superseded to 532193350)

$22.99

$

In Stock, only 1 left!

0

33

Husqvarna 140401

Key Ign Molded Generic
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

34

Husqvarna 110712X

Switch Light/Reset
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

40

Husqvarna 401098

Harness Ign
(Superseded to 532401098)

$120.99

$

Usually ships in 3-10 days

0

41

Husqvarna 17720408

Screw 1/4-20 unc x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 131563

Cover Terminal Red

$

$

Not available

43

Husqvarna 192507

Solenoid
(Superseded to 532192507)

$26.99

$

In Stock, Qty 19

0

55

Husqvarna 17060512

Screw 5/16-18 x 3/4

$7.49

$

Usually ships in 3-10 days

0

71

Husqvarna 400449

Harness Ign. Chass.
(Superseded to 532400449)

$40.99

$

Usually ships in 3-10 days

0

90

Husqvarna 400725

Cover Terminal
(Superseded to 532435395)

$6.49

$

In Stock, only 2 left!

0

92

Husqvarna 193465

Harness Pigtail Reverse Switch
(Superseded to 532193465)

$15.99

$

Usually ships in 3-10 days

0

93

Husqvarna 192540

Screw Plastic 10-14 x 2.0
(Superseded to 532192540)

$4.99

$

Usually ships in 3-10 days

0

94

Husqvarna 191834

Modual Reverse ROS
(Superseded to 532191834)

$37.99

$

Usually ships in 3-10 days

0
