PB 195 H42 LT (960420036-00) - Husqvarna 42" Lawn Tractor (2007-08) Drive Parts Diagram

42" Lawn Tractor

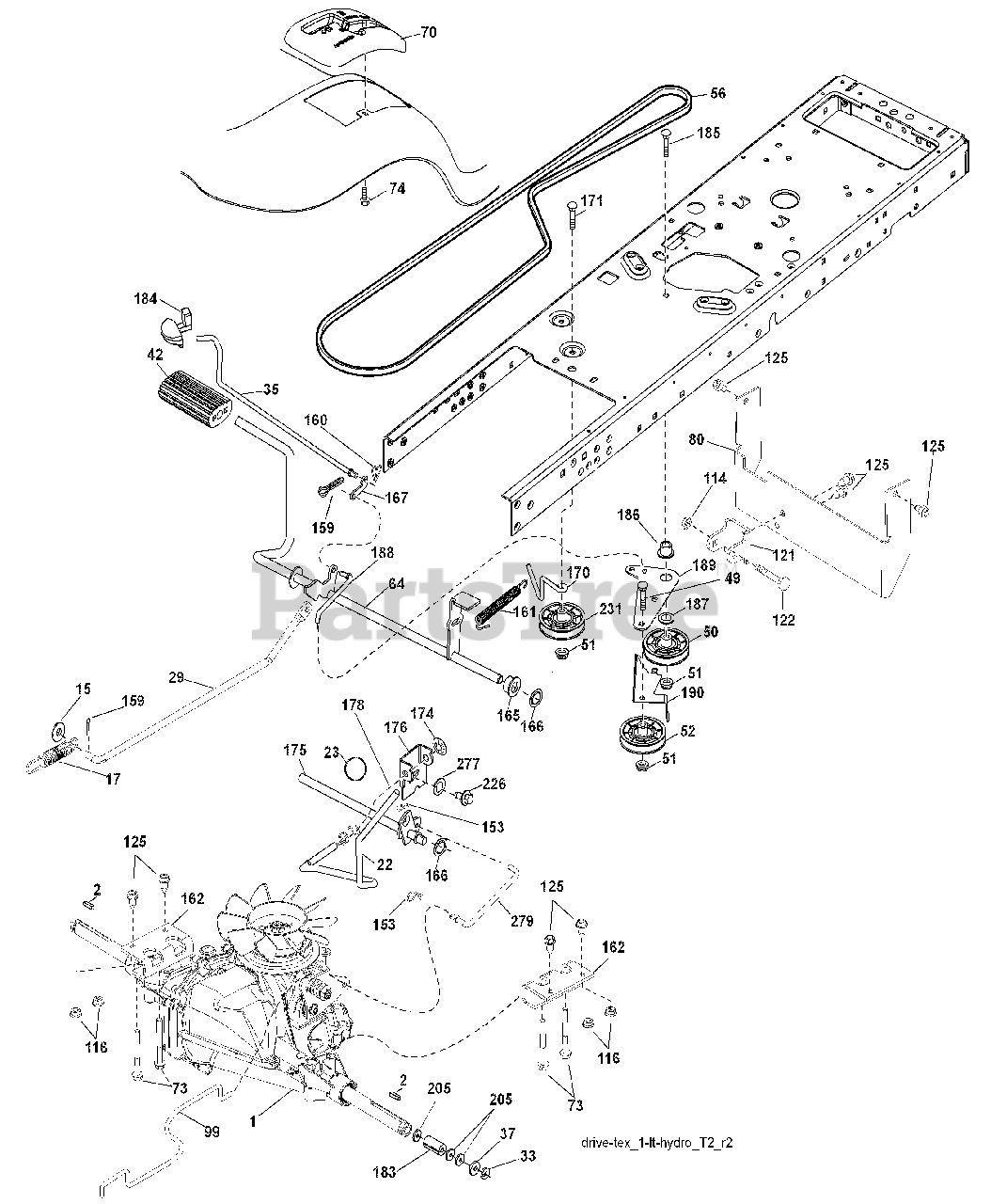

Drive Parts Diagram

  • Title
1

Transaxle, Hydro Gear T2

Note: (See Transaxle Manufacturer)

$

$

Not available

2

Husqvarna 123583X

Key Square
(Superseded to 532123583)

$4.99

$

In Stock, Qty 7

0

15

Husqvarna 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 197296

Spring, Brake
(Superseded to 532197296)

$6.99

$

In Stock, only 1 left!

0

22

Husqvarna 197660

Rod Shift
(Superseded to 532197660)

$182.99

$

Usually ships in 3-10 days

0

23

Husqvarna 409154X421

Knob
(Superseded to 532411367)

$14.99

$

Usually ships in 3-10 days

0

29

Husqvarna 408391

Rod, Brake

$

$

Not available

33

Husqvarna 12000001

Ring E
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 197722

Rod, Brake, Park
(Superseded to 532197722)

$39.99

$

Usually ships in 3-10 days

0

37

Husqvarna 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 8883R

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

49

Husqvarna 72110614

Bolt
(Superseded to 872110614)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 194327

Pulley Idler Flat
(Superseded to 532194327)

$20.99

$

In Stock, Qty 11

0

51

Husqvarna 73900600

Lock Nut 3/8-16

$

$

Not available

52

Husqvarna 194326

Idler V-Groove 910" Offset
(Superseded to 532194326)

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 125907X

V-Belt, Drive
(Superseded to 532125907)

$39.99

$

In Stock, Qty 9

0

64

Husqvarna 196200

Shaft Asm. Pedal Brake Control
(Superseded to 532196200)

$56.99

$

Usually ships in 3-10 days

0

70

Husqvarna 193220X428

Console
(Superseded to 532411329)

$17.99

$

Usually ships in 3-10 days

0

73

Husqvarna 74490544

Bolt Hex 5/16-18 Gr. 5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 142432

Screw 1/4 x 1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 408393

Strap Torque

$8.99

$

Usually ships in 3-10 days

0

99

Husqvarna 408418

Rod Spring Bypass
(Superseded to 532408418)

$9.99

$

Usually ships in 3-10 days

0

114

Husqvarna 73800500

Nut Lock 5/16-18 UNC

$

$

Not available

116

Husqvarna 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

121

Husqvarna 175611

Bracket Strap Torque
(Superseded to 532175611)

$7.99

$

Usually ships in 3-10 days

0

122

Husqvarna 72010520

Bolt 5/16-18 x 2.50
(Superseded to 872010520)

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 17000512

Screw 5/16-18 x 3/4

$

$

Not available

153

Husqvarna 4497H

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Husqvarna 76020412

Pin Cotter 1/8 x 3/4

$

$

Not available

160

Husqvarna 169484

Retainer Clip
(Superseded to 532169484)

$

$

Not available

161

Husqvarna 195403

Spring, Return, Clutch

$

$

Not available

165

Husqvarna 196212

Bushing
(Superseded to 532196212)

$6.99

$

Usually ships in 3-10 days

0

166

Husqvarna 197290

Nut Push .625

$

$

Not available

167

Husqvarna 405257

Latch Brake Parking
(Superseded to 532405257)

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 194322

Keeper Belt Centerspan
(Superseded to 532194322)

$7.49

$

In Stock, only 1 left!

0

171

Husqvarna 72110622

Bolt
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

174

Husqvarna 197289

Nut Push
(Superseded to 532197289)

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 408539

Shaft Asm Shift
(Superseded to 532408539)

$26.99

$

Usually ships in 3-10 days

0

176

Husqvarna 196214

Arm Clevis Rod Shift
(Superseded to 532196214)

$7.99

$

Usually ships in 3-10 days

0

178

Husqvarna 197456

Spring Shift
(Superseded to 532197456)

$6.49

$

Usually ships in 3-10 days

0

183

Husqvarna 156972

Spacer Axle
(Superseded to 532156972)

$6.99

$

Usually ships in 3-10 days

0

184

Husqvarna 198403X505

Handle Parking Brake
(Superseded to 532411283)

$

$

Not available

185

Husqvarna 72110620

Bolt
(Superseded to 872110620)

$4.99

$

Usually ships in 3-10 days

0

186

Husqvarna 194321

Spacer Retainer
(Superseded to 532194321)

$9.49

$

In Stock, Qty 11

0

187

$

$

Not available

188

Husqvarna 194323

Link Clutch Ground Drive
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 194317

Bellcrank Ground Drive
(Superseded to 532194317)

$

$

Not available

190

Husqvarna 194318

Keeper Bellcrank Ground Drive
(Superseded to 532194318)

$8.99

$

In Stock, only 1 left!

0

205

Husqvarna 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

226

Husqvarna 74780716

Bolt 7/16-14 x 1 Gr 5
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

227

Husqvarna 405296

Washer Serrated
(Superseded to 532405296)

$6.49

$

Usually ships in 3-10 days

0

231

Husqvarna 407287

Idler V-Groove 1.688" Offset
(Superseded to 532407287)

$22.99

$

In Stock, only 1 left!

0

279

Husqvarna 408538

Link Shift

$

$

Not available
