PB 195 46 LT (960420035-00) - Husqvarna 46" Lawn Tractor (2008-02) Chassis Parts Diagram

46" Lawn Tractor

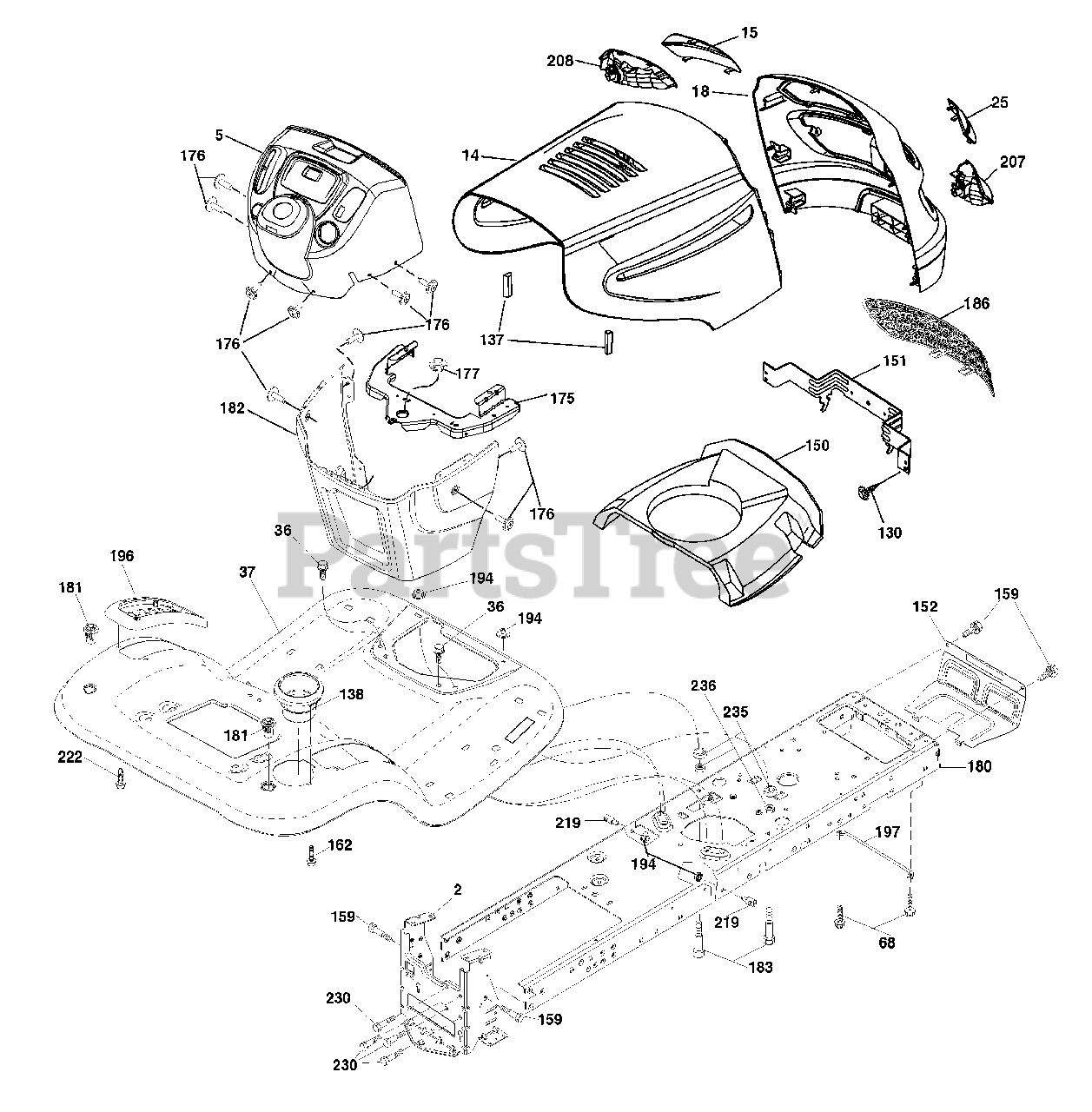

Chassis Parts Diagram

  • Title

2

Husqvarna 194263

Drawbar
(Superseded to 532194263)

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 197783X428

Dash
(Superseded to 532411764)

$66.99

$

Usually ships in 3-10 days

0

14

Husqvarna 183393X428

Hood
(Superseded to 587483701)

$78.99

$

Usually ships in 3-10 days

0

15

Husqvarna 183834X599

Lens Grille LH

$

$

Not available

18

Husqvarna 183828

Grille
(Superseded to 532183828)

$

$

Not available

25

Husqvarna 183835X599

Lens Grille RH
(Superseded to 532189755)

$14.99

$

Usually ships in 3-10 days

0

36

Husqvarna 17060512

Screw 5/16-18 x 3/4

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 193218X428

Fender

$110.99

$

Usually ships in 3-10 days

0

68

Husqvarna 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 191611

Screw 10 x 3/4 Single Lead-Hex

$

$

Currently unavailable

137

Husqvarna 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 9

0

138

Husqvarna 193224X428

Cupholder
(Superseded to 532409730)

$7.99

$

Usually ships in 3-10 days

0

150

Husqvarna 184322

Duct Heat Hood
(Superseded to 583133101)

$34.99

$

Usually ships in 3-10 days

0

151

Husqvarna 407807

Bracket Pivot
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

152

Husqvarna 194329

Shield Browning/Debris
(Superseded to 532194329)

$20.99

$

Usually ships in 3-10 days

0

159

Husqvarna 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 193243

Crossmember
(Superseded to 532193243)

$27.99

$

Usually ships in 3-10 days

0

176

Husqvarna 400776

Screw 10-24 x 5/8 Wshd Qdrx
(Superseded to 532400776)

$10.99

$

Usually ships in 3-10 days

0

177

Husqvarna 195228

Bushing Steering
(Superseded to 532195228)

$5.99

$

Usually ships in 3-10 days

0

180

Husqvarna 194260

Chassis

$94.99

$

Usually ships in 3-10 days

0

181

Husqvarna 193102X428

Bushing Mtg. Fender Crgo.

$2.49

$

Usually ships in 3-10 days

0

182

Husqvarna 193057

Dash Lower
(Superseded to 532193057)

$96.99

$

Usually ships in 3-10 days

0

183

Husqvarna 74780520

Bolt Fin Hex 5/16-18 x 1-1/4

$

$

Not available

186

Husqvarna 183829X428

Insert Grille

$

$

Not available

194

Husqvarna 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

196

Husqvarna 410584

Console Asm. Deck Lift
(Superseded to 583351401)

$37.99

$

Usually ships in 3-10 days

0

197

Husqvarna 156524

Rod Pivot Chassis

$

$

Not available

207

Husqvarna 183833

Bezel Grille RH
(Superseded to 532183833)

$

$

Not available

208

Husqvarna 183832

Bezel Grille LH
(Superseded to 532183832)

$

$

Not available

219

Husqvarna 195161

Stud Fastener
(Superseded to 532195161)

$

$

Not available

222

Husqvarna 137729

Screw Thd Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

230

Husqvarna 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 5

0

235

Husqvarna 406129

Spacer Fender
(Superseded to 532406129)

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 73930500

Nut center Lock 5/16-18
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0
