PB 185H42 LT - Poulan Lawn Tractor (2006-01) Chasis Parts Diagram

Lawn Tractor

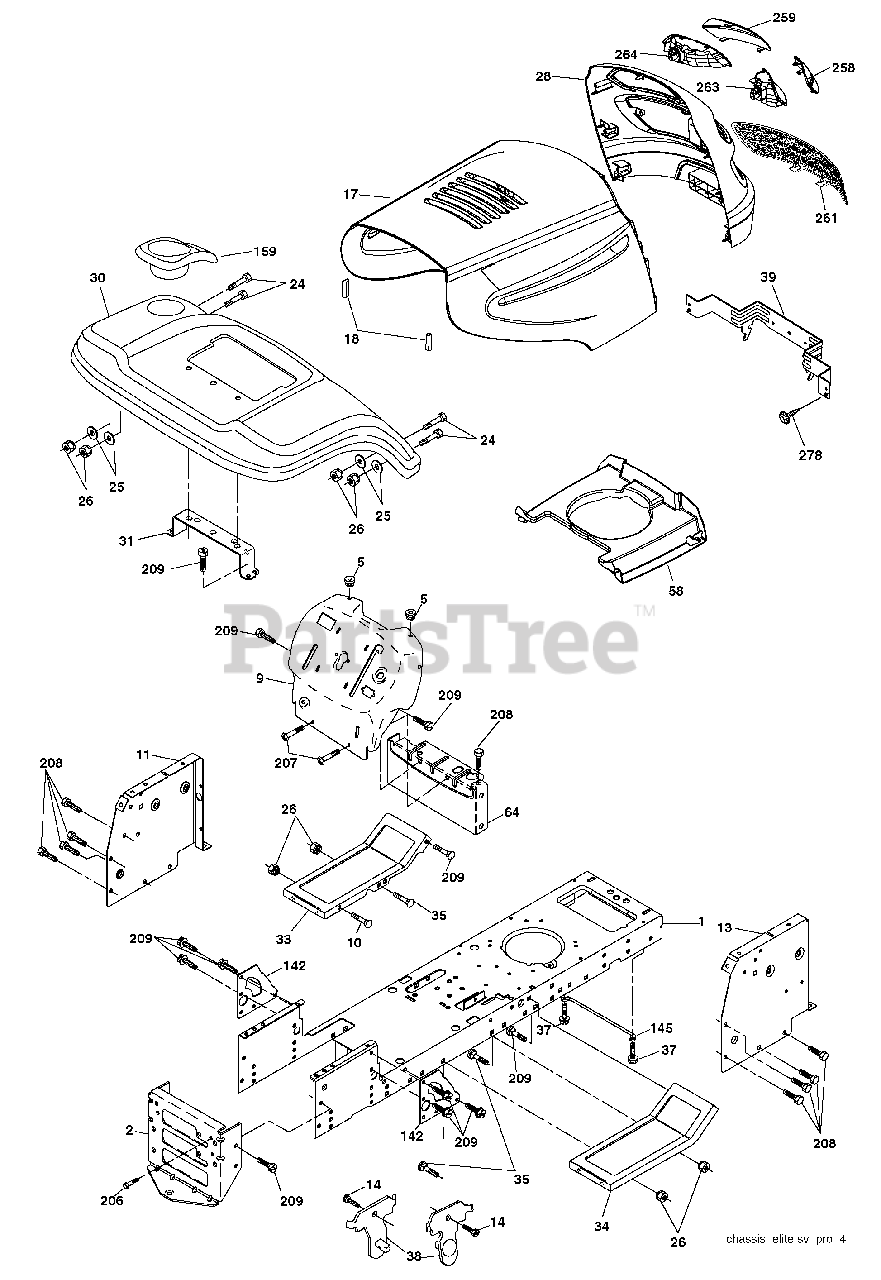

Chasis Parts Diagram

  • Title
1

Electrolux/AYP 174619

Chassis
(Superseded to 532174619)

$433.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 155272

Bumper Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 193510X010

Dash P/L
(Superseded to 584378801)

$62.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

Bolt Carriage 3/8-16 x 1

$

$

Not available

11

Electrolux/AYP 174996

Panel Dash Lh
(Superseded to 532174996)

$

$

Not available

13

$9.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 183393X428

Hood
(Superseded to 532194588)

$78.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 9

0

24

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73800600

Nut Lock Hex W/Ins 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 183828

Grille/Lens Asm
(Superseded to 583170701)

Note: (Includes Nos. 258, 259, 261, 263, 264)

$

$

Not available

30

Electrolux/AYP 192528X428

Fender
(Superseded to 532194589)

$

$

Not available

31

Electrolux/AYP 136619

Bracket Fender
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 179716X428

Footrest LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 179717X428

Footrest RH
(Superseded to 532182508)

$

$

Not available

35

Electrolux/AYP 72110606

Bolt RDHD SHT SQNK 3/8-16 x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 174714

Bracket Pivot
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 184322

Duct Air
(Superseded to 583133101)

$34.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 154798

Dash Lower STLT
(Superseded to 532154798)

$20.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 175702

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Electrolux/AYP 169473X428

Cupholder
(Superseded to 532169473)

$

$

Not available

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 7

0

207

Electrolux/AYP 17670508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817670508)

$9.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 17000612

Screw Hexwsh Thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

258

Electrolux/AYP 183835X599

Lens Grille Pro RH
(Superseded to 183835599)

$14.99

$

Usually ships in 3-10 days

0

259

Electrolux/AYP 183834X599

Lens Grille Pro LH
(Superseded to 183834599)

$

$

Not available

261

$

$

Not available

263

Electrolux/AYP 183833

Bezel Grille RH
(Superseded to 532183833)

$

$

Not available

264

Electrolux/AYP 183832

Bezel Grille LH
(Superseded to 532183832)

$

$

Not available

278

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

278

Electrolux/AYP 5479J

Plug BTN BlK
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

278

Electrolux/AYP 187801

Plug Dome Plastic
(Superseded to 532187801)

$4.99

$

Usually ships in 3-10 days

0
