PB 185H42 LT (960120053-00) - Poulan Lawn Tractor (2006-01) Electrical Parts Diagram

Lawn Tractor

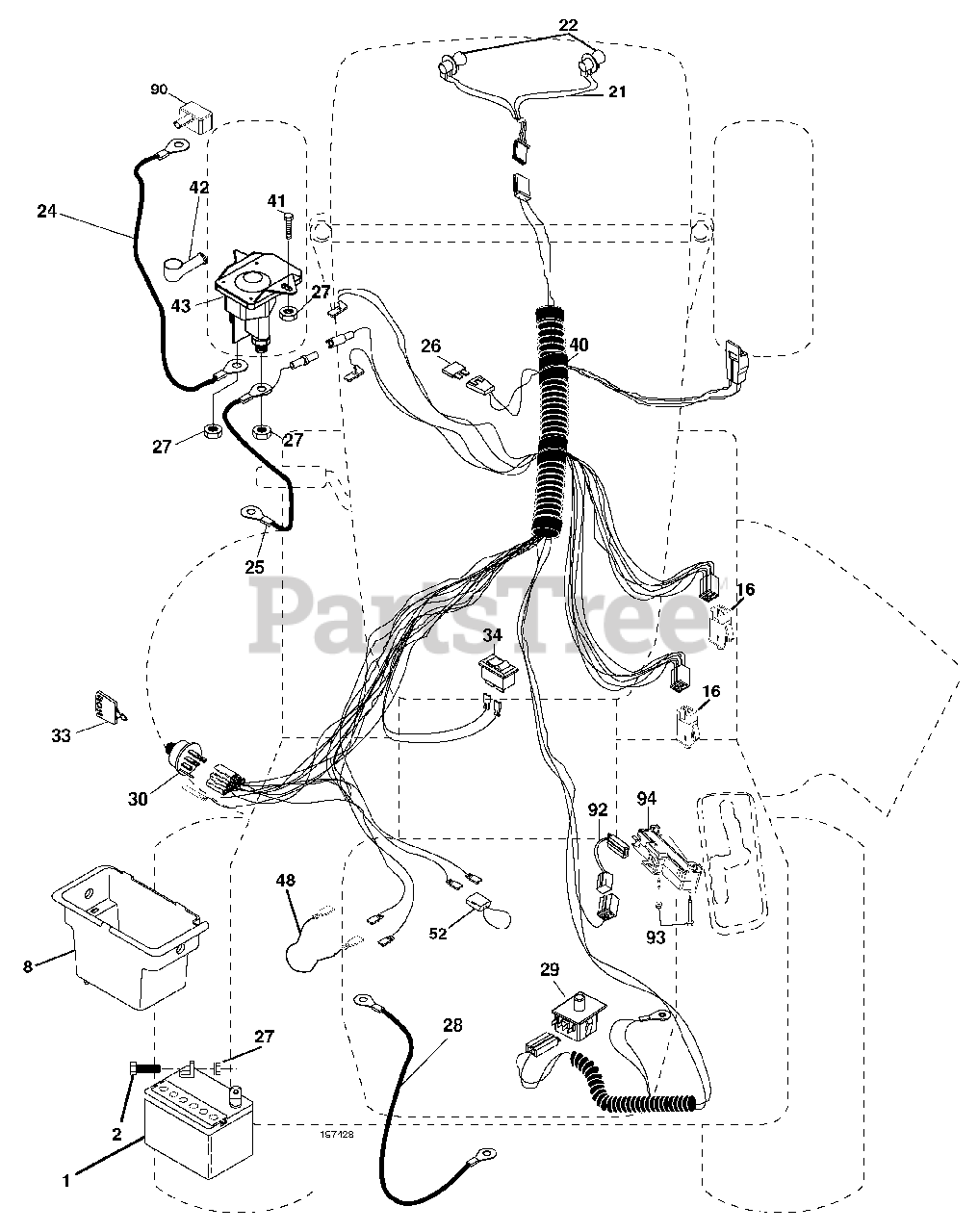

Electrical Parts Diagram

  • Title
1

Electrolux/AYP 163465

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20 unc x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 176689

Box Battery
(Superseded to 532176689)

$

$

Not available

16

Electrolux/AYP 176138

Switch Interlock
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 175688

Harness Asm Light W/4152j
(Superseded to 532175688)

$44.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 4152J

Bulb Light #1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4799J

Cable Battery 6 Ga. 11"red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146147

Cable Battery
(Superseded to 532146147)

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse 20 AMP
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

27

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 4207J

Cable Ground 6 Ga. 12" Black
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 192749

Switch Seat
(Superseded to 532192749)

$21.99

$

In Stock, Qty 14

0

30

Electrolux/AYP 193350

Switch Ign
(Superseded to 532193350)

$22.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 140401

Key Ign
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

34

Electrolux/AYP 110712X

Switch Light/Reset
(Superseded to 532110712)

$9.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 197428

Harness Ign
(Superseded to 532421251)

$157.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 71110408

Bolt Blk Fin Hex 1/4-20
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 192507

Solenoid
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

48

Electrolux/AYP 140844

Adapter Ammeter
(Superseded to 532140844)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 141940

Protection Wire Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 180449

Cover Terminal Battery

$2.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 196615

Harness Pigtail
(Superseded to 532196615)

$18.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 192540

Screw Plastite 10-14 x 2.0
(Superseded to 532192540)

$4.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 191834

Module Reverse ROS
(Superseded to 532191834)

$37.99

$

Usually ships in 3-10 days

0
