PB 175A46 (960420157-00) - Poulan Pro Lawn Tractor (2013-10) DRIVE Parts Diagram

Lawn Tractor

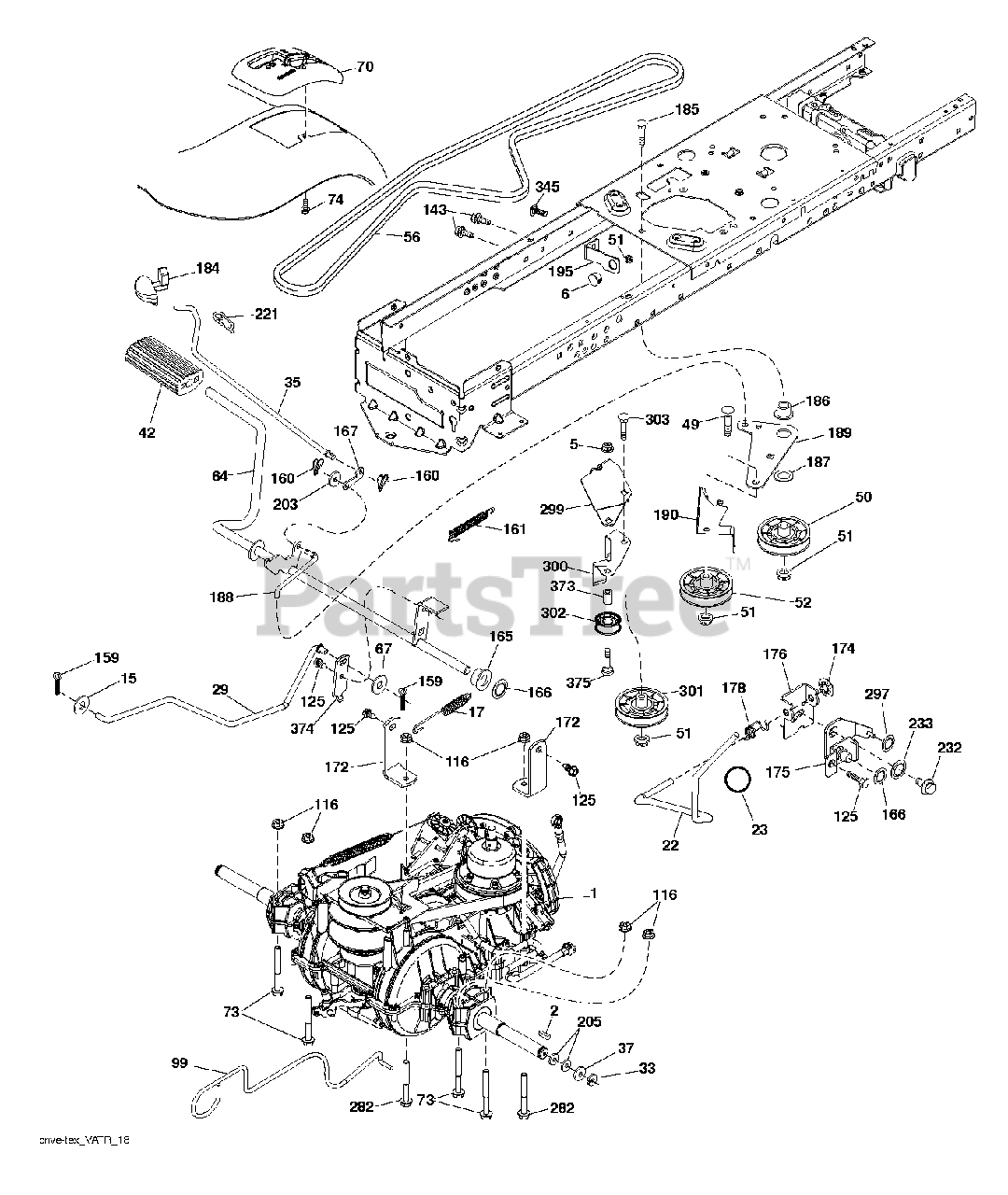

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: Transaxle Gentrans Variator (580486301)

$

$

Not available

2

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

5

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

6

Poulan 532124028

GROMMET T

$5.99

$

In Stock, only 3 left!

0

15

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

17

Poulan 584954001

Brake Variator Spring

$22.99

$

Usually ships in 3-10 days

0

22

Poulan 532421063

ROD.SHIFT.LT.TEX.VARIATOR

$42.99

$

Usually ships in 3-10 days

0

23

Poulan 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

29

Poulan 584823101

RB ROD.BRAKE.VARIATOR.SD2
(Superseded to 584823102)

$11.99

$

In Stock, only 1 left!

0

33

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX

$18.99

$

Usually ships in 3-10 days

0

37

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

42

Poulan 532124872

(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Poulan 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$39.99

$

In Stock, only 4 left!

0

64

Poulan 580401501

SHAFT SUB ASM PEDAL BRAKE

$

$

Not available

67

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

70

Poulan 532440323

CONSOLE.AUTO.VARIATOR.BLACK

$31.99

$

Usually ships in 3-10 days

0

73

Poulan 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

74

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

99

Poulan 532435935

ROD.BYPASS.VARIATOR.GEN2

$6.49

$

In Stock, only 1 left!

0

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

143

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

159

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Poulan 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

165

Poulan 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

166

Poulan 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Poulan 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Poulan 583974201

STRAP.TORQUE.VARIATOR

$6.99

$

In Stock, only 1 left!

0

174

Poulan 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Poulan 532415677

SHAFT.ASM.SHIFT.VARIATOR

$42.99

$

Usually ships in 3-10 days

0

176

Poulan 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Poulan 532197456

SPRING.SHIFT.GT2006

$6.49

$

Usually ships in 3-10 days

0

184

Poulan 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532199996)

$66.99

$

Usually ships in 3-10 days

0

185

Poulan 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Poulan 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Poulan 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Poulan 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

195

Poulan 581504601

BRACKET.BRAKE.BRAKE.VAR.SD

$7.99

$

Usually ships in 3-10 days

0

203

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

205

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

221

Poulan 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

232

Poulan 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Poulan 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

282

Poulan 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

297

Poulan 532420223

NUT.PUSH.1/4

$4.99

$

Usually ships in 3-10 days

0

299

Poulan 532415683

BRACKET.MOUNT.IDLERS

$10.99

$

In Stock, only 2 left!

0

300

Poulan 532415681

KEEPER.IDLERS.REAR.VARIATOR

$6.49

$

Usually ships in 3-10 days

0

301

Poulan 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, Qty 5

0

302

Poulan 581420501

PULLEY.IDLER.FLAT.2"

$26.99

$

In Stock, only 2 left!

0

303

Poulan 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 2 left!

0

345

Poulan 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

373

Poulan 581461801

SPACER.IDLER

$4.99

$

In Stock, only 2 left!

0

374

Poulan 581475201

ARM.CONTROL.BRAKE

$6.49

$

Usually ships in 3-10 days

0

375

Poulan 874760636

BOLT

$6.49

$

Usually ships in 3-10 days

0
