PB 175A46 (960420153-00) - Poulan Pro Lawn Tractor (2013-09) ELECTRICAL Parts Diagram

Lawn Tractor

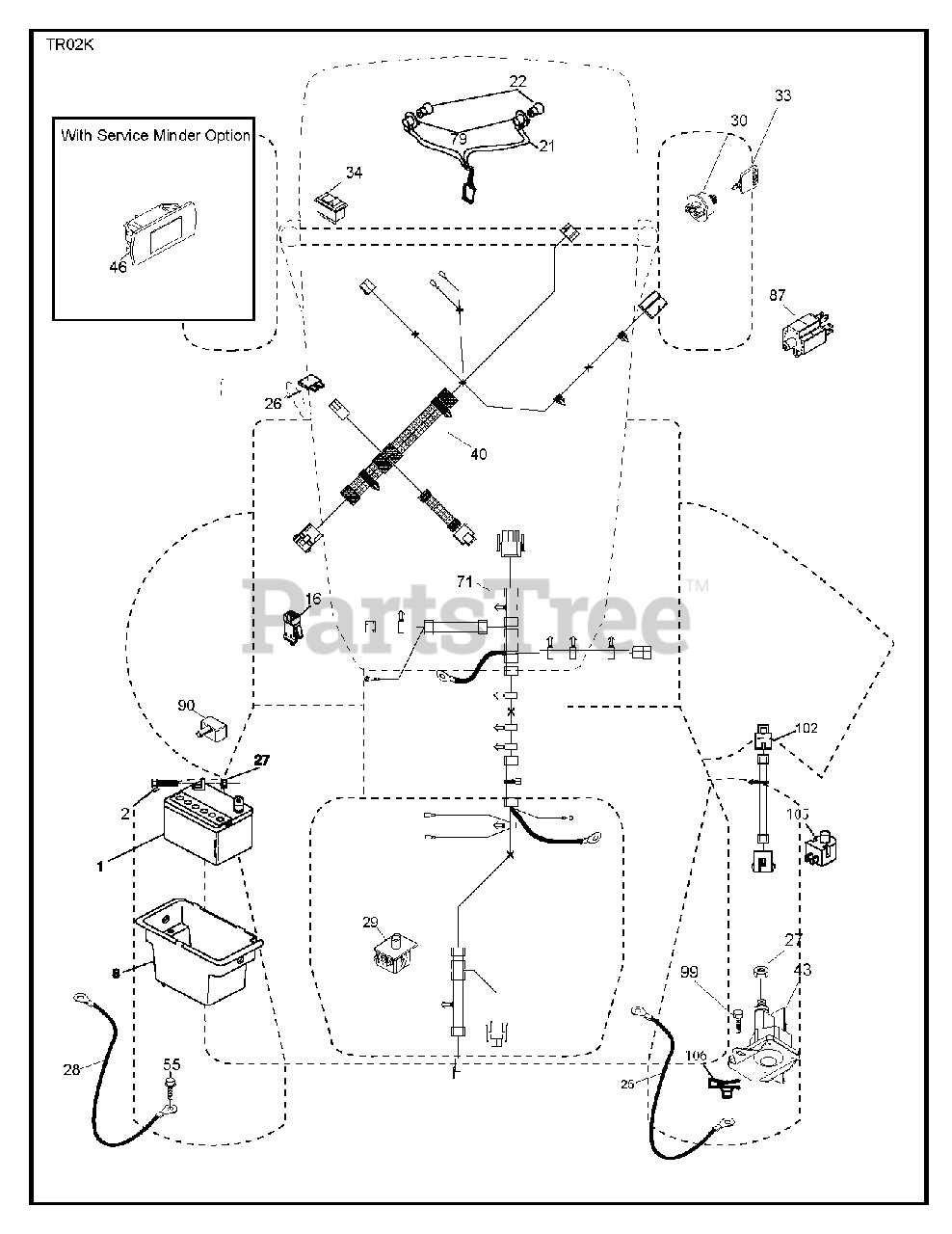

ELECTRICAL Parts Diagram

  • Title
1

Poulan 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Poulan 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

8

Poulan 532193228

BOX.BATTERY.MNT.REAR.L

$28.99

$

In Stock, only 1 left!

0

16

Poulan 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Poulan 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

22

Poulan 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

25

Poulan 581498001

CABLE.BATT.RED.8GA.17

$9.49

$

Usually ships in 3-10 days

0

26

Poulan 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Poulan 532421686

CABLE.GROUND.REAR.BATTERY.8G

$17.99

$

In Stock, only 1 left!

0

29

Poulan 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

Usually ships in 3-10 days

0

30

Poulan 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

33

Poulan 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA

$9.99

$

Usually ships in 3-10 days

0

34

Poulan 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

40

Poulan 581023101

HARNESS.TEX.DASH.MAN.REAR BATT

$40.99

$

In Stock, only 1 left!

0

43

Poulan 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

55

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

71

Poulan 581023001

HARNESS.TEX.CHSSIS.REAR.BATT

$66.99

$

In Stock, only 2 left!

0

79

Poulan 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

87

Poulan 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

90

Poulan 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

99

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

102

Poulan 581901601

HARNESS.PIGTAIL.VAR.SD.FC

$13.99

$

In Stock, only 1 left!

0

105

Poulan 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

106

Poulan 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0
