PB 17542LT (960120125-00) - Poulan Pro Lawn Tractor (2012-08) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

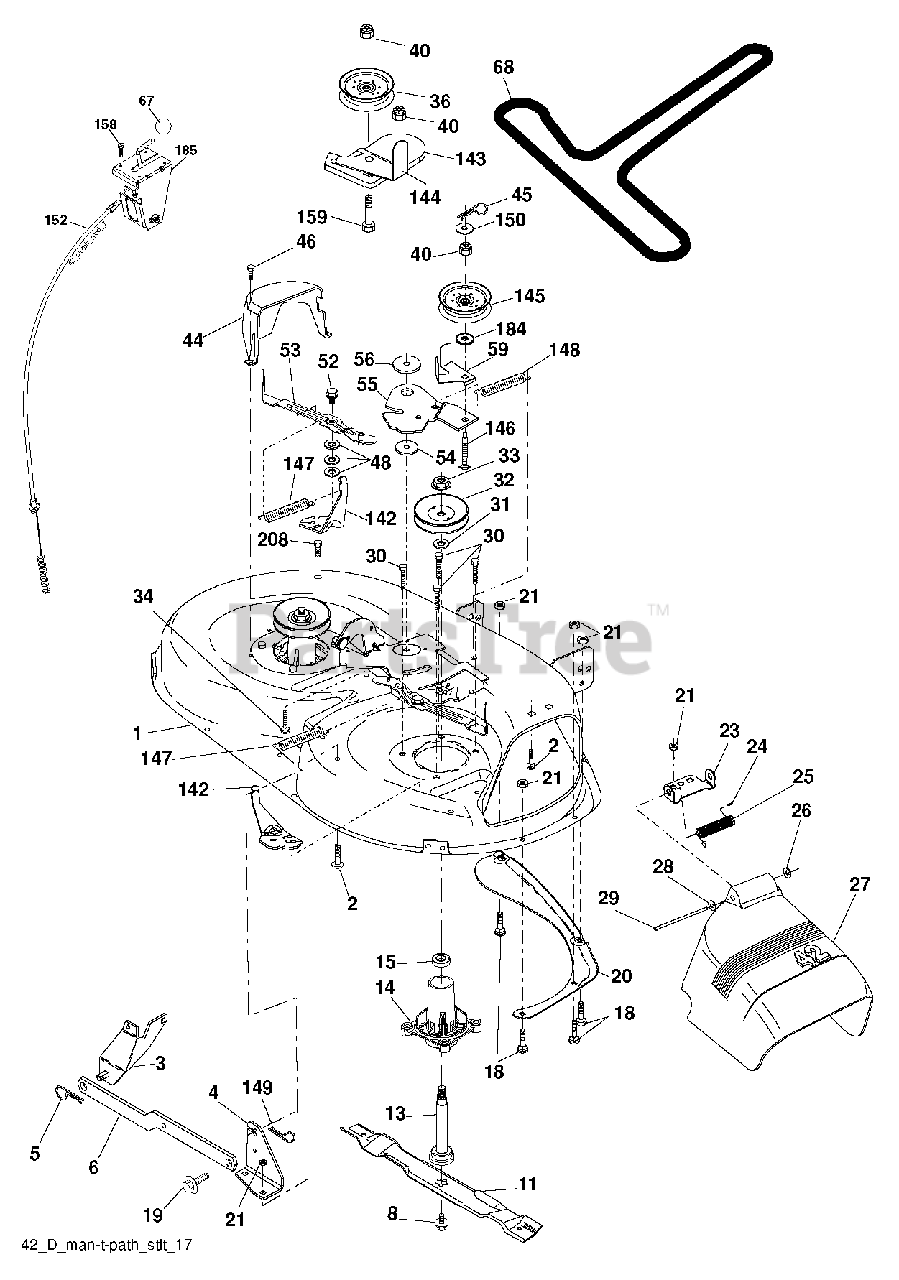

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 532165892

(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Poulan 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

4

Poulan 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

In Stock, only 1 left!

0

5

Poulan 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Poulan 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

8

Poulan 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 532138971

42" HI-LIFT BLADE

Note: For bagging and discharging

$20.99

$

In Stock, Qty 20+

0

13

Poulan 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 16

0

14

Poulan 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 16

0

15

Poulan 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

18

Poulan 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Poulan 532159770

BAFFLE.VORTEX

$

$

Not available

21

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532177563

BRKT, DEFL. MOWER

$

$

Not available

24

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

26

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Poulan 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Poulan 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Poulan 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Poulan 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

Poulan 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Poulan 532140088

GUARD MANDREL LH BLACK

Note: LH

$34.99

$

In Stock, Qty 10

0

45

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

48

Poulan 532133944

WASHER

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 532139888

BOLT.SHOULDER.5/16-18

$6.49

$

In Stock, only 1 left!

0

53

Poulan 532184907

ARM BRAKE ASSY

$14.99

$

Usually ships in 3-10 days

0

54

Poulan 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

55

Poulan 532155046

ARM IDLER 42" MOWER LT/YT

$15.99

$

Usually ships in 3-10 days

0

56

Poulan 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

59

Poulan 532141043

GUARD, BELT

$

$

Not available

67

Poulan 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Poulan 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

142

Poulan 532195784

ANCHOR SPRING BRAKE MOWER

$7.49

$

Usually ships in 3-10 days

0

143

Poulan 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

144

Poulan 532158634

KEEPER.BELT.42".CLUTCH.CABLE
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Poulan 532165888

PULLEY
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

146

Poulan 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

147

Poulan 532131335

SPRING EXTENSION
(Superseded to 532179748)

$5.99

$

In Stock, Qty 7

0

148

Poulan 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 6

0

149

Poulan 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

150

Poulan 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

152

Poulan 532169676

Clutch Cable Kit
(Superseded to 532175067)

$45.99

$

In Stock, only 4 left!

0

158

Poulan 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

159

Poulan 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

184

Poulan 819131410

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

185

Poulan 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

208

Poulan 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

Poulan 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: Includes housing shaft assembly and bearing only

$56.99

$

In Stock, Qty 16

0

Poulan 532418031

Mower Deck Assembly, 42" CC No/Gwb Black

Note: REPLACEMENT MOWER

$

$

Not available
