PB 145G42 (960420164-00) - Poulan Pro Lawn Tractor (2014-09) MOWER LIFT LEVER Parts Diagram

Lawn Tractor

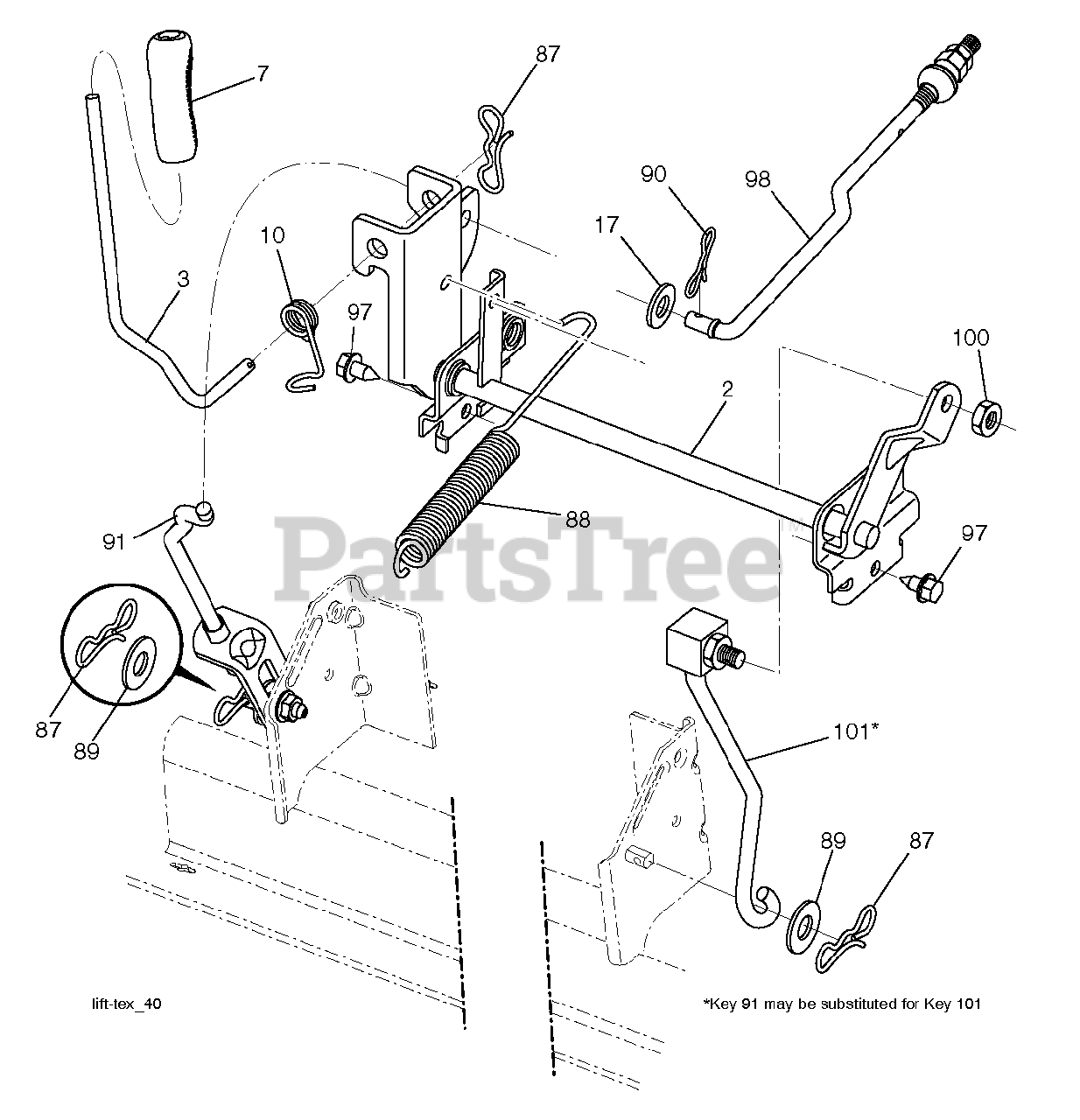

MOWER LIFT LEVER Parts Diagram

  • Title

2

Poulan 532422027

SHAFT.ASM.CROSS.LIFT

Note: RIGHT

$80.99

$

In Stock, only 1 left!

0

3

Poulan 532195231

LEVER.LIFT.HANDLE.LT
(Superseded to 594018001)

$20.99

$

In Stock, only 1 left!

0

7

Poulan 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.49

$

In Stock, only 1 left!

0

10

Poulan 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

17

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

87

Poulan 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 14

0

88

Poulan 532410710

SPRING.LIFT.ASSIST

$11.99

$

In Stock, Qty 6

0

89

Poulan 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 10

0

90

Poulan 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

91

Poulan 532195181

LINK.ASM.LIFT.REAR
(Superseded to 589464807)

$18.99

$

In Stock, only 1 left!

0

97

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

98

Poulan 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$11.99

$

In Stock, Qty 5

0

100

Poulan 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Poulan 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

$18.99

$

Usually ships in 3-10 days

0
