PB-1010 - Echo Handheld Blower (SN: 122636 - 219000) Carburetor Parts Diagram

Handheld Blower

Carburetor Parts Diagram

  • Title

Echo 12520006360

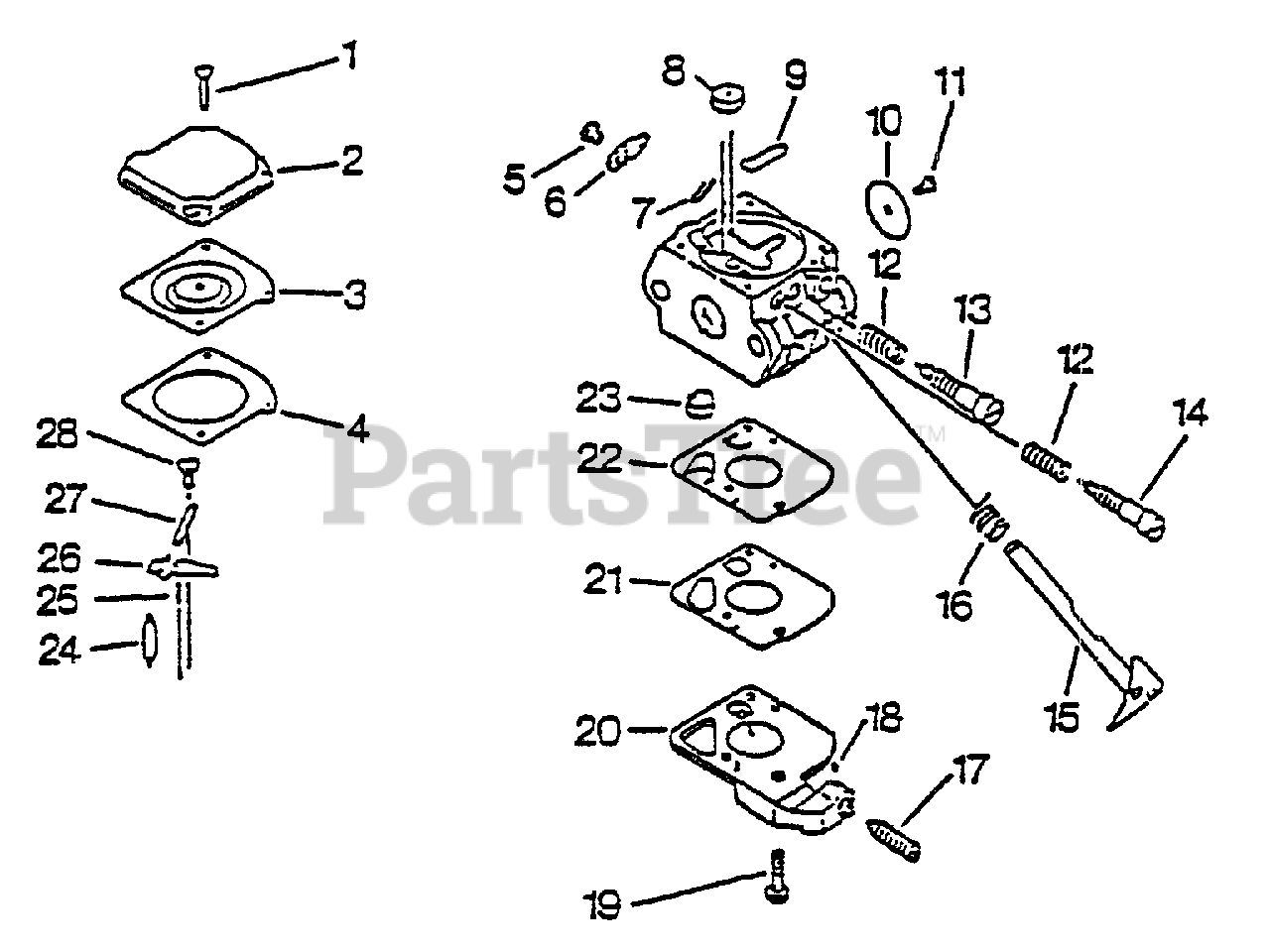

CARBURETOR C1U-K14
(Superseded to 12520006361)

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Included in Carburetor Repair Kit P/N 12530042030 And Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12530042030 And Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

5

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

6

Echo 12535005060

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 12537606360

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

9

------------------

PLUG, WELCH

Note: Included In carburetor Repair Kit P/N 12530042030

$

$

Not available

10

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

11

------------------

SCREW

Note: Included In carburetor Repair Kit P/N 12530042030

$

$

Not available

12

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

13

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

14

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

15

Echo 12531705060

SHAFT, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

16

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

17

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

18

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

19

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

21

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit P/N 12530042030 and Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

22

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor Repair kit P/N 12530042030 and Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

23

------------------

STRAINER

Note: Included in Carburetor Repair kit P/N 12530042030

$

$

Not available

24

------------------

VALVE, NEEDLE

Note: Included in Carburetor Repair kit P/N 12530042030

$

$

Not available

25

------------------

SPRING

Note: Included in Carburetor Repair kit P/N 12530042030

$

$

Not available

26

------------------

LEVER, METERING

Note: Included in Carburetor Repair kit P/N 12530042030

$

$

Not available

27

------------------

PIN, METERING LEVER

Note: Included in Carburetor Repair kit P/N 12530042030

$

$

Not available

28

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

Echo 12530042030

REPAIR KIT

Note: Includes ITEMS 3, 4, 8, 9, 11, 21-27

$17.99

$

In Stock, Qty 20+

0

Echo 12530342030

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 3, 4, 21-22

$13.99

$

In Stock, only 1 left!

0

Echo 89000005062

GASKET KIT

Note: (Includes items below)

$

$

Currently unavailable

Echo 13001005061

GASKET, INTAKE
(Superseded to 13001005062)

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, only 3 left!

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 14

0

------------------

GASKET, CRANKCASE

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

$3.99

$

In Stock, only 4 left!

0

Echo 14587105760

SHIELD, EXHAUST

$11.99

$

In Stock, only 1 left!

0
