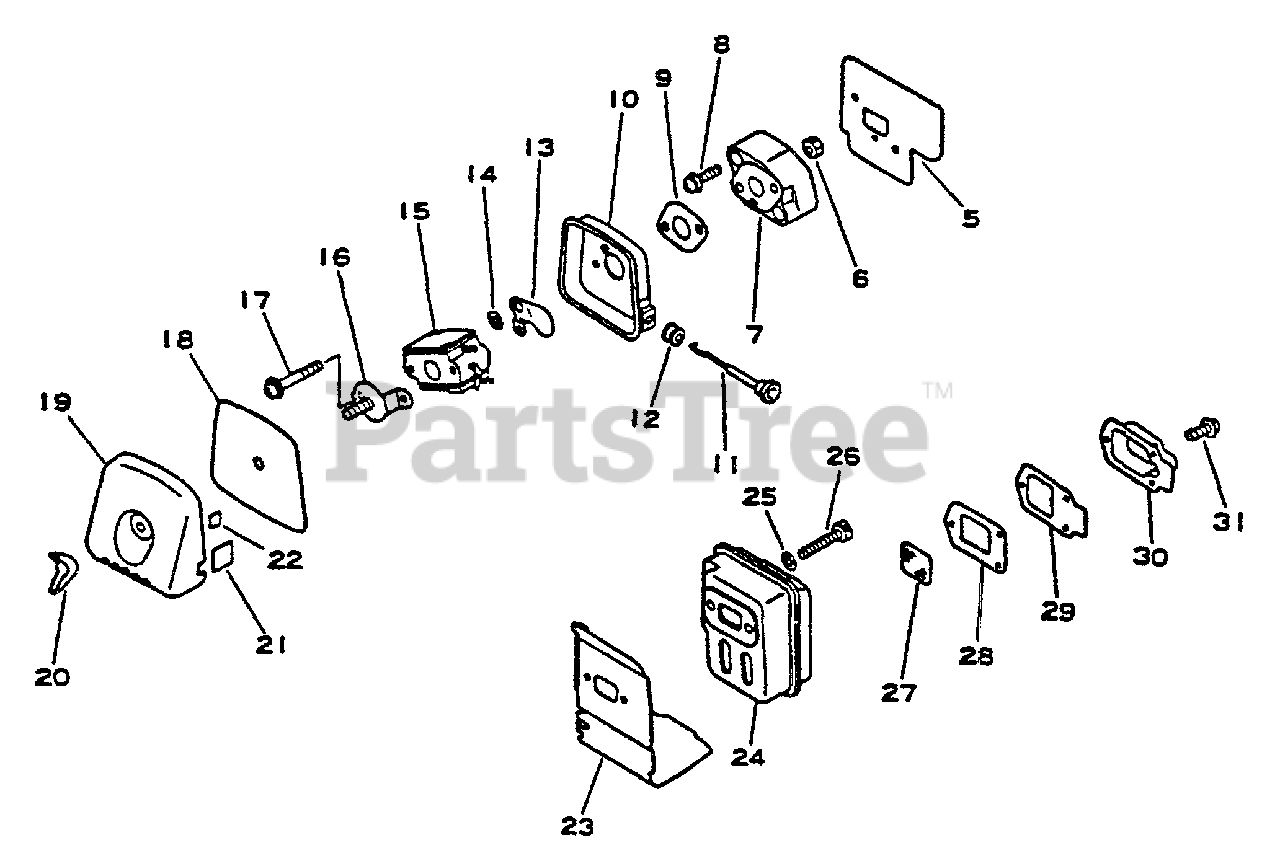

PB-1010 - Echo Handheld Blower (SN: 001001 - 066000) Exhaust, Intake - Metal Air Filter Case Parts Diagram

Handheld Blower

Exhaust, Intake - Metal Air Filter Case Parts Diagram

  • Title
5

Echo 13001005060

GASKET, INTAKE
(Superseded to 13001005061)

$

$

Not available

6

$0.99

$

In Stock, Qty 20+

0

7

Echo 13001705060

INSULATOR, INTAKE
(Superseded to 13001705061)

$6.49

$

Usually ships in 2-4 days

0

8

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 12

0

9

Echo 13001642030

GASKET, INTAKE
(Superseded to 13001642031)

$1.49

$

In Stock, Qty 20+

0

10

Echo 13031405060

CASE, AIR FILTER

$9.49

$

In Stock, only 1 left!

0

11

Echo 17851005060

ROD, CHOKE

$6.49

$

Usually ships in 2-4 days

0

12

$1.99

$

In Stock, Qty 8

0

13

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

14

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 12520005060

CARBURETOR
(Superseded to 12520005061)

$

$

Not available

16

Echo 13040504560

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

17

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

18

Echo 13031004560

FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

19

Echo 13031304561

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

20

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

21

Echo 89015806230

LABEL - CAUTION

$0.99

$

Usually ships in 2-4 days

0

22

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

23

Echo 14587105760

SHIELD, EXHAUST

$11.99

$

In Stock, only 1 left!

0

24

$36.99

$

Usually ships in 2-4 days

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 12

0

27

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, only 2 left!

0

28

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

$2.49

$

In Stock, Qty 5

0

29

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

30

Echo 14587605060

GUIDE, EXHAUST - INNER
(Superseded to 14587605061)

$3.99

$

In Stock, only 1 left!

0

31

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 13

0
