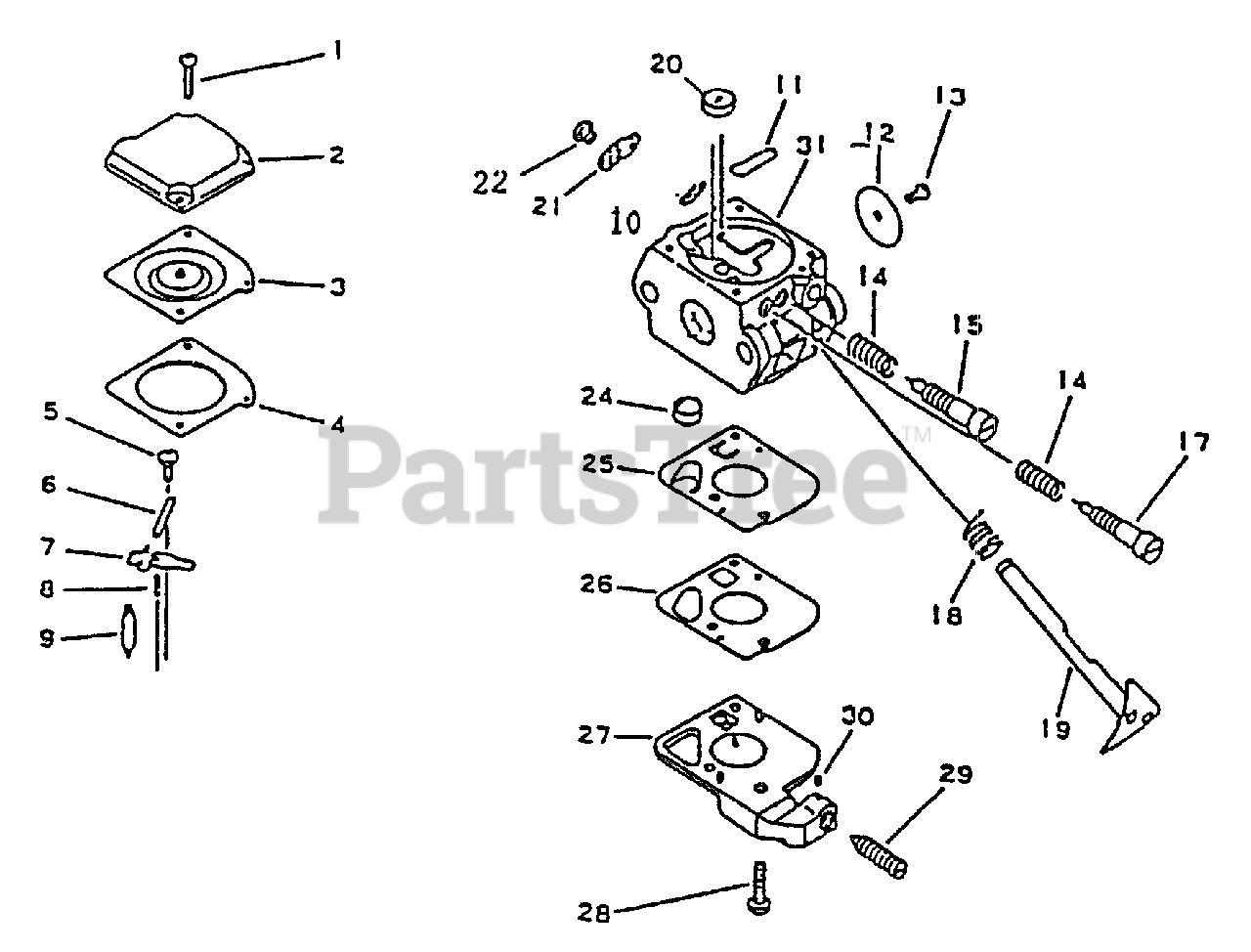

PB-1010 - Echo Handheld Blower (SN: 001001 - 066000) Carburetor Parts Diagram

Handheld Blower

Carburetor Parts Diagram

  • Title

Echo 12520005060

CARBURETOR
(Superseded to 12520005061)

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030 & Carburetor Repair Kit P/N 12530242030

$

$

Not available

4

------------------

GASKET, METERING

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030 & Carburetor Repair Kit P/N 12530242030

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN, METERING LEVER

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

7

------------------

LEVER, METERING

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

8

------------------

SPRING

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

10

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

11

------------------

PLUG, WELCH

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

12

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

13

------------------

SCREW

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

14

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

15

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

17

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

18

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

19

Echo 12531705060

SHAFT, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

20

Echo 12537606360

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

Note: REVISED 04/93

$

$

Not available

21

Echo 12535005060

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

22

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

24

------------------

STRAINER

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030

$

$

Not available

25

------------------

DIAPHRAGM, PUMP

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030 & Carburetor Repair Kit P/N 12530242030

$

$

Not available

26

------------------

GASKET, PUMP

Note: Use Carburetor Diaphragm/Gasket Kit P/N 12530342030 & Carburetor Repair Kit P/N 12530242030

$

$

Not available

27

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

28

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

------------------

BODY, CARBURETOR

Note: Use Carb Ass'y P/N 12520002060

$

$

Not available

Echo 12530342030

DIAPHRAGM/GASKET KIT

$13.99

$

In Stock, only 1 left!

0

Echo 12530242030

REPAIR KIT
(Superseded to 12530042030)

$17.99

$

In Stock, Qty 20+

0
