PB-1000 - Echo Handheld Blower (SN: 066001 - 098000) Fuel System Parts Diagram

Handheld Blower

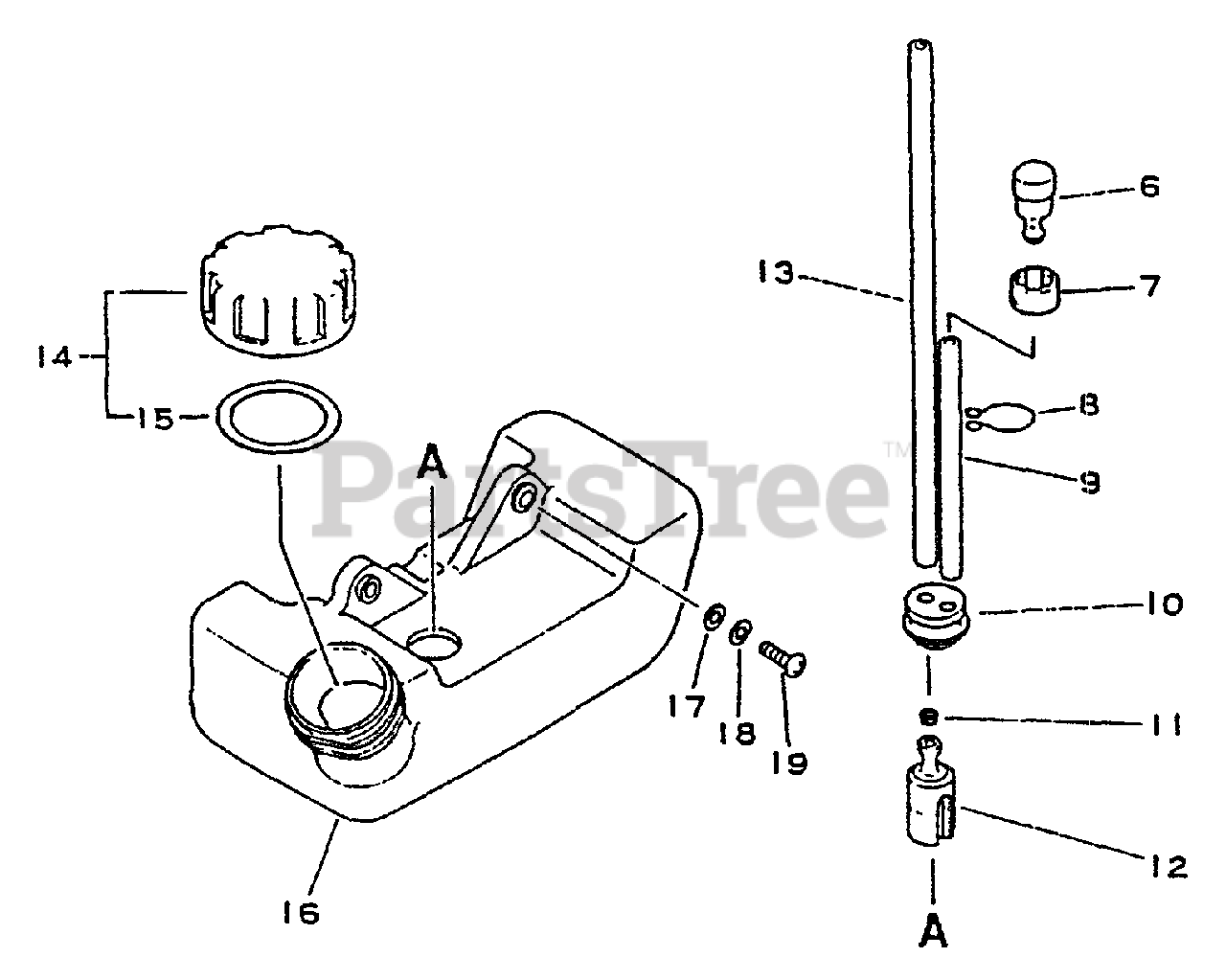

Fuel System Parts Diagram

  • Title

6

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 11

0

7

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

8

Echo 13201305060

CLIP

$

$

Not available

9

Echo 13271750430

PIPE - 3X6X70 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

10

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

11

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

13

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 14

0

14

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

$7.49

$

In Stock, only 4 left!

0

15

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 18

0

16

Echo 13100505061

TANK, FUEL
(Superseded to 13100506361)

$

$

Not available

17

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

19

Echo 90022005016

SCREW - 5X16

$0.99

$

In Stock, Qty 8

0
