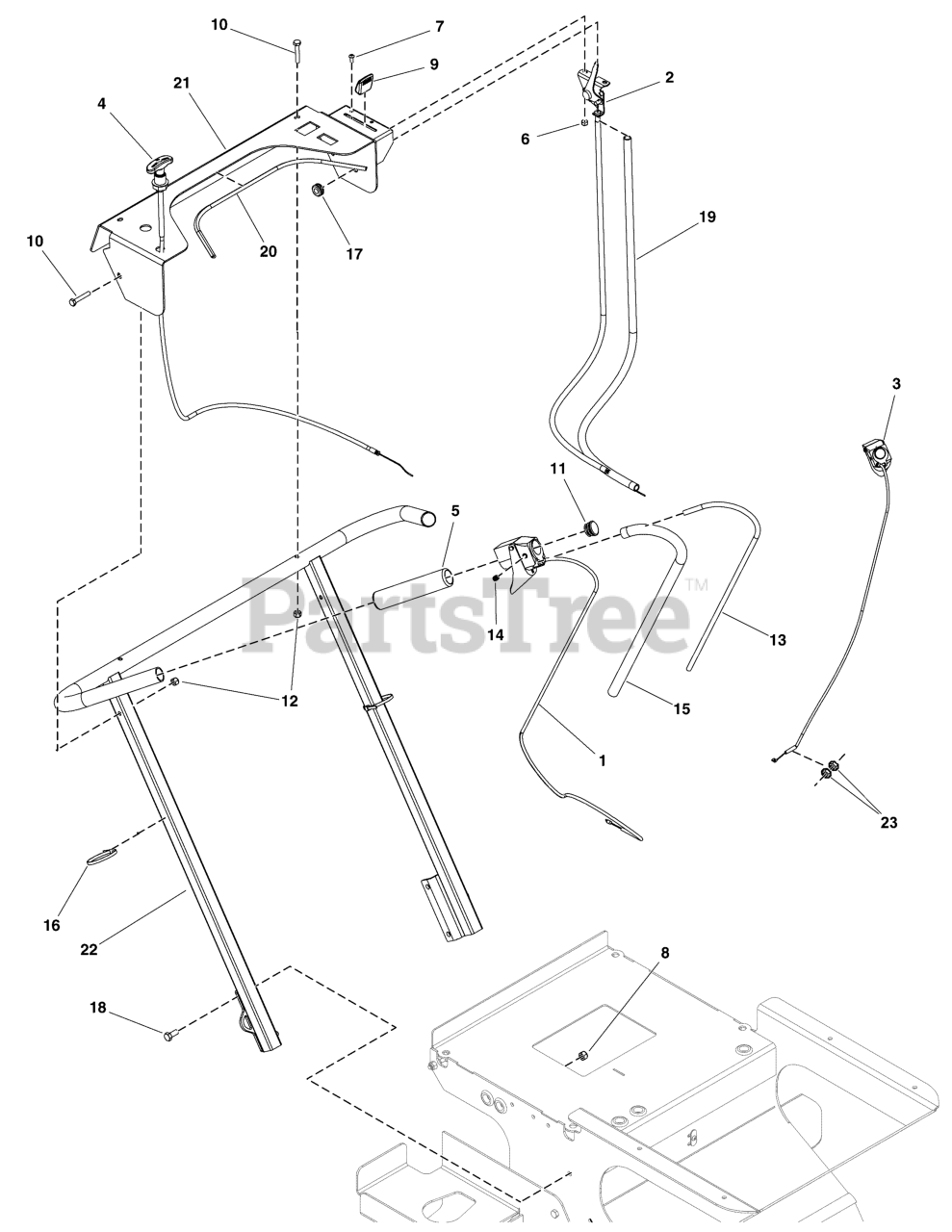

PAT-22016-2 (5901726) - Ferris Pathfinder XC Series Stand-On Spreader Handlebar Group Parts Diagram

Pathfinder XC Series Stand-On Spreader

Handlebar Group Parts Diagram

  • Title
1

Ferris 5601316

KIT, ROVER/PATHFINDER THROTTLE CABLE

Note: (Connects to engine.)

$118.99

$

Usually ships in 2-12 days

0

2

Ferris 5109577

CABLE, LEVER ACTION 34"

Note: (Connects to gate assembly.)

$42.99

$

Usually ships in 2-12 days

0

3

Ferris 5108411

CABLE, SPRAY

$73.99

$

Usually ships in 2-12 days

0

4

Ferris 5109576

CABLE, TURN TO LOCK, 35"

Note: (Connects to gate assembly.)

$60.99

$

Usually ships in 2-12 days

0

5

Ferris 5105928

GRIP, .94 ID X .155 THK X 5.75 LONG

$6.99

$

In Stock, only 2 left!

0

6

Ferris 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$2.49

$

Usually ships in 2-12 days

0

7

Ferris 5105978

SCR-CAP, BSH #10-24 X .500" SS188

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5106000

KNOB, GATE LEVER

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5106021

SCR-CAP, HEX .250"-20 X 1.500" SSF593C

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5106028

PLUG, 1" TUBE, ROUND

$3.49

$

In Stock, only 4 left!

0

12

Ferris 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5106068

ROD,CABLE SUPPORT

$39.99

$

Usually ships in 2-12 days

0

14

Ferris 5106185

SCR-SH, SET .3125"-18 X .375" KCPT SS188

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5106204

THROTTLE CABLE SPLIT LOOM, .500" ID

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5106297

CABLE TIE, .188" W X 7.50" LNG

$2.99

$

Usually ships in 2-12 days

0

17

Ferris 5106454

GROMMET, 0.375" I.D., FIT 0.500" HOLE

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5417981

SPLIT LOOM, GATE CABLE, 28"

$4.99

$

In Stock, only 3 left!

0

20

Ferris 5418134

TRIM, CONSOLE, 18.75 LONG

$7.49

$

Usually ships in 2-12 days

0

21

Ferris 5418069

WELD, OPERATOR, HANDLEBAR FRAME - XC

$183.99

$

Usually ships in 2-12 days

0

22

Ferris 5106289

WELD, FRAME, HANDLE BAR - XC

$509.99

$

Usually ships in 2-12 days

0

23

Ferris 5106016

NUT-HEX, JAM .250"-28 SS188

$7.49

$

Usually ships in 2-12 days

0
