PAS-280 - Echo PAS Series Powerhead (SN: T44511001001 - T44511999999) Carburetor Parts Diagram

PAS Series Powerhead

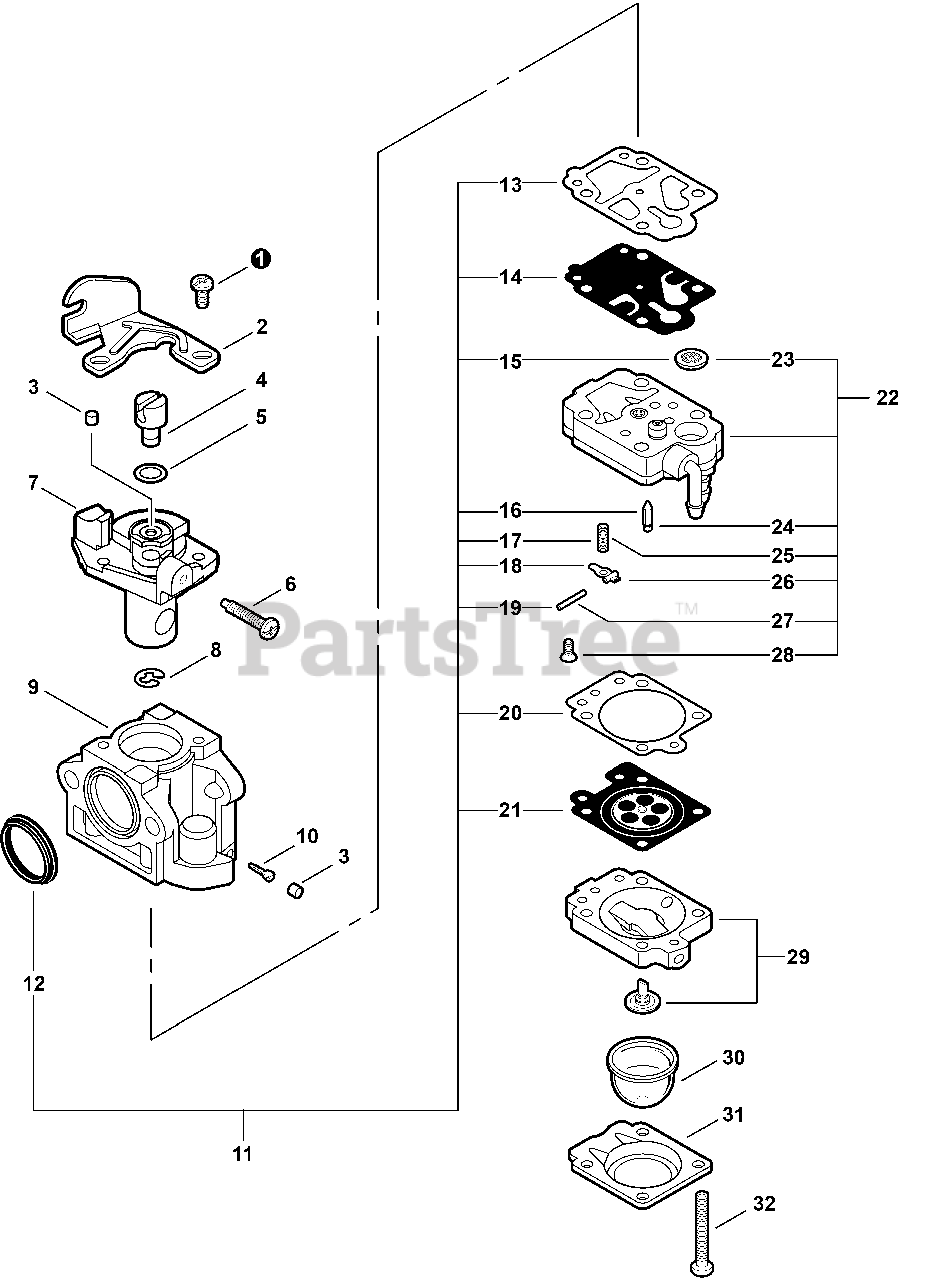

Carburetor Parts Diagram

  • Title

Echo A021001340

CARBURETOR -- WYK-233A
(Superseded to A021001341)

Note: Includes Items 1-32

$121.99

$

In Stock, only 3 left!

0

$2.49

$

In Stock, only 3 left!

0

2

Echo P003000180

BRACKET, CABLE

$1.99

$

Usually ships in 2-4 days

0

3

Echo A259000000

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

4

$1.99

$

Usually ships in 2-4 days

0

5

$0.99

$

In Stock, only 1 left!

0

6

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

7

N/A

THROTTLE VALVE ASY

$

$

Not available

8

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

9

N/A

BODY, CARBURETOR

$

$

Not available

10

Echo P003001130

NEEDLE - HIGH SPEED

$10.99

$

Usually ships in 2-4 days

0

11

Echo P003001120

REPAIR KIT
(Superseded to P003001121)

Note: Includes Items 12-21

$22.99

$

In Stock, Qty 7

0

12

------------------

RING, PACKING

$

$

Not available

13

------------------

GASKET, PUMP

$

$

Not available

14

------------------

DIAPHRAGM, PUMP

$

$

Not available

15

------------------

STRAINER

$

$

Not available

16

------------------

VALVE, INLET NEEDLE

$

$

Not available

17

------------------

SPRING, METERING LEVER

$

$

Not available

18

------------------

LEVER, METERING

$

$

Not available

19

------------------

PIN, METERING LEVER

$

$

Not available

20

------------------

GASKET, DIAPHRAGM

$

$

Not available

21

------------------

DIAPHRAGM, METERING

$

$

Not available

22

Echo P003000440

PUMP BODY ASY

Note: Includes Items 23-28

$18.99

$

In Stock, Qty 17

0

23

------------------

STRAINER

$

$

Not available

24

------------------

VALVE, INLET NEEDLE

$

$

Not available

25

------------------

SPRING, METERING LEVER

$

$

Not available

26

------------------

LEVER, METERING

$

$

Not available

27

------------------

PIN, METERING LEVER

$

$

Not available

28

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

29

Echo 12318005560

PURGE BASE ASY

$7.49

$

In Stock, only 1 left!

0

30

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

31

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

32

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0
