PAS-266 - Echo PAS Series Powerhead (SN: T49814001001 - T49814999999) Main Pipe, Coupler Parts Diagram

PAS Series Powerhead

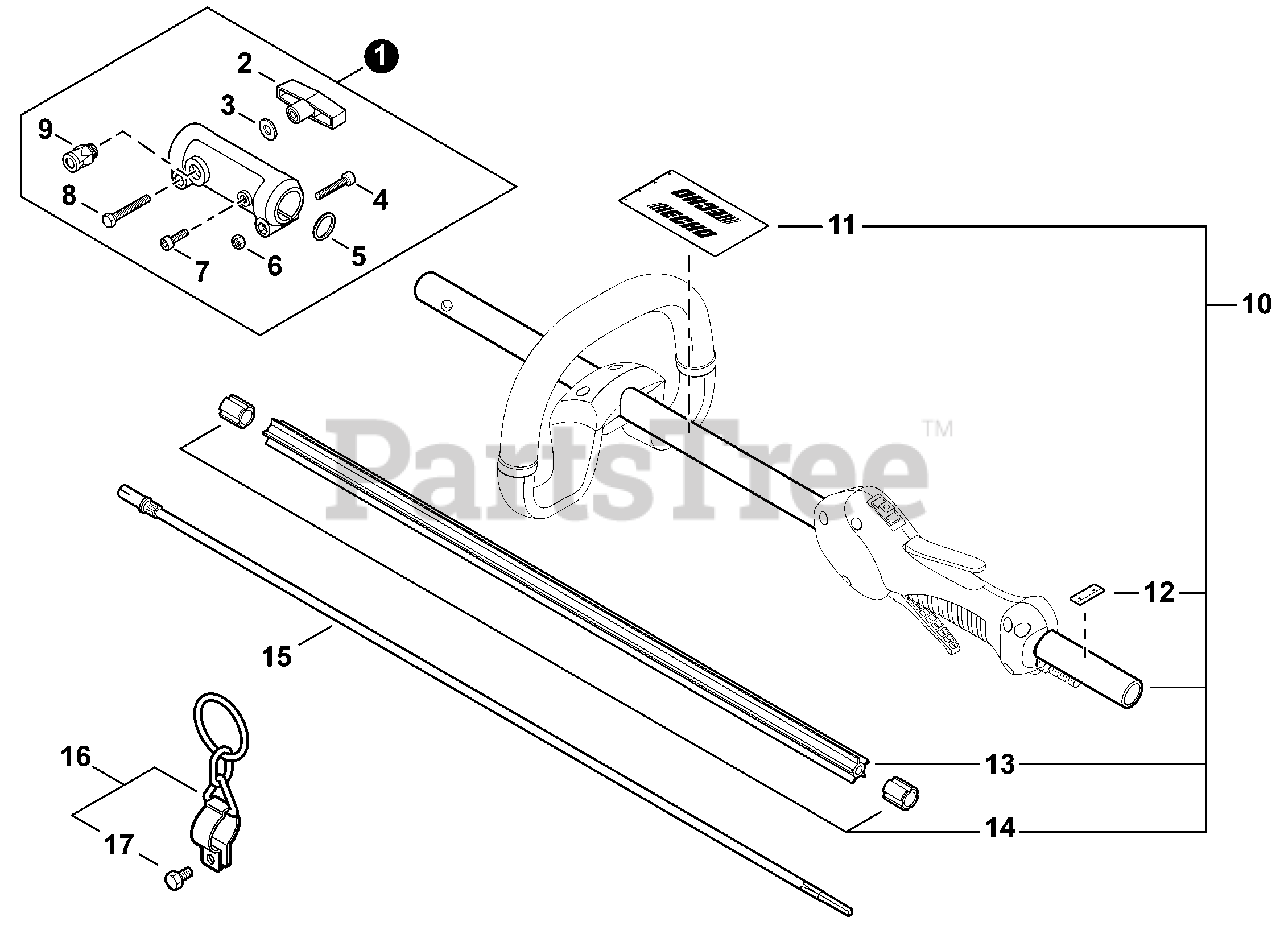

Main Pipe, Coupler Parts Diagram

  • Title

1

Echo C510000180

COUPLER ASSY
(Superseded to C510000330)

Note: Includes Items 2-9

$39.99

$

In Stock, only 2 left!

0

2

Echo V299000160

KNOB, FASTENER
(Superseded to V299000660)

$3.99

$

In Stock, Qty 10

0

3

Echo V304000040

WASHER 6.6×20×1.6

$0.99

$

In Stock, Qty 20+

0

4

Echo V806000020

BOLT, TORX 6×25

$0.99

$

In Stock, Qty 20+

0

5

Echo V312000010

WASHER 18 SPR STEEL

$0.99

$

In Stock, Qty 20+

0

6

Echo 90051400006

NUT

$0.99

$

In Stock, Qty 17

0

7

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

8

Echo 9108506040

BOLT 6×40

$0.99

$

In Stock, Qty 20+

0

9

Echo 17830256630

LATCH ASSY

$13.99

$

In Stock, Qty 7

0

10

Echo C050001240

MAIN PIPE ASSY

Note: Includes Items 11-14

$25.99

$

In Stock, only 1 left!

0

11

Echo X505001930

LABEL, HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

0

12

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

13

Echo C507000230

LINER - FLEXIBLE

$16.99

$

In Stock, Qty 17

0

14

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

15

Echo C506000042

DRIVESHAFT - FLEXIBLE

$16.99

$

Usually ships in 2-4 days

0

16

Echo P021046740

HANGER SET, HARNESS
(Superseded to C646000060)

Note: Includes Item 17

$3.49

$

In Stock, Qty 20+

0

17

Echo 90010005012

BOLT 5×12

$0.99

$

In Stock, Qty 5

0
