PAS-2601 - Echo PAS Series Powerhead (Type 1E) Driveshaft, Coupling, Handles, Throttle, Stop Switch Parts Diagram

PAS Series Powerhead (Type 1E)

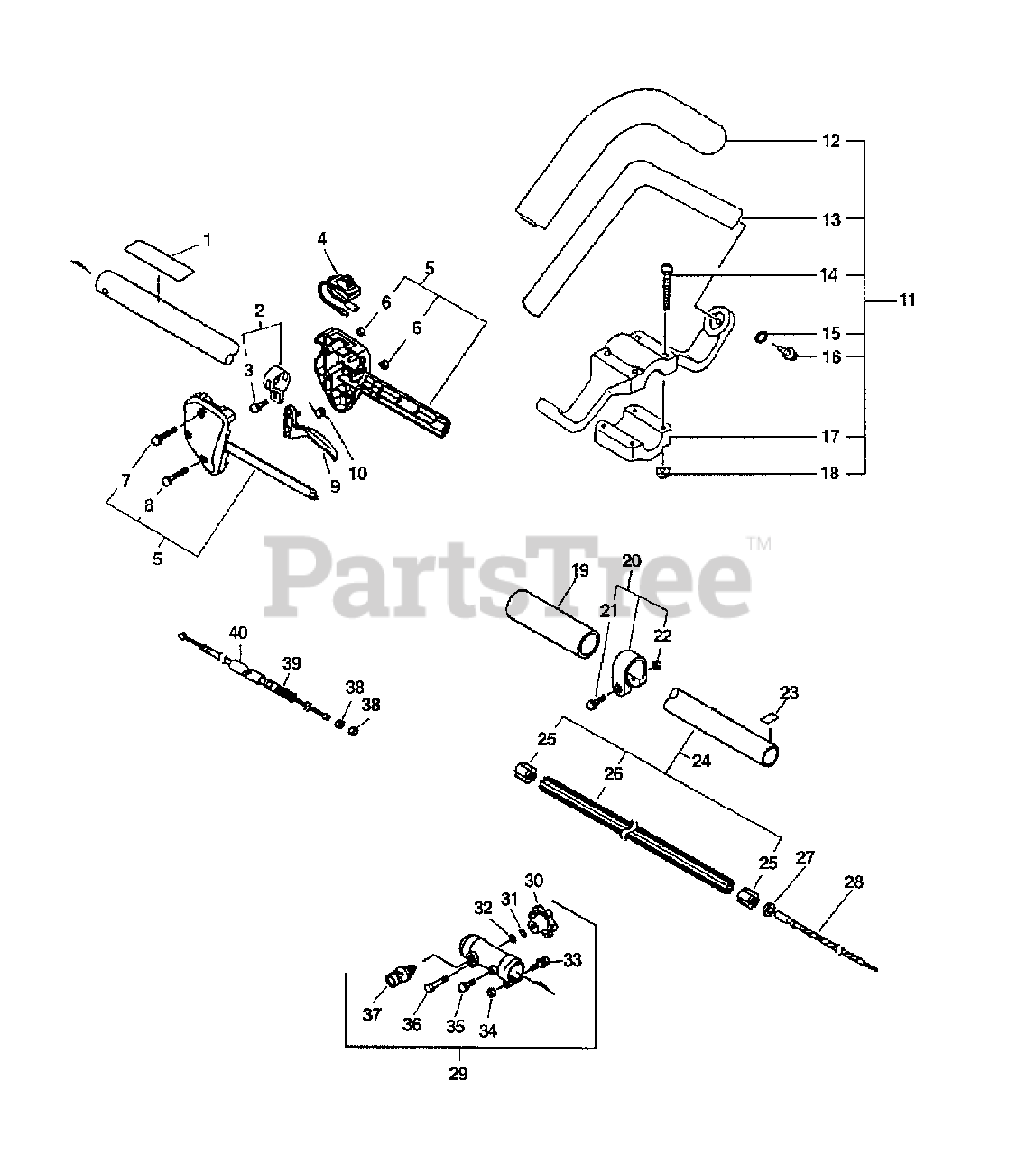

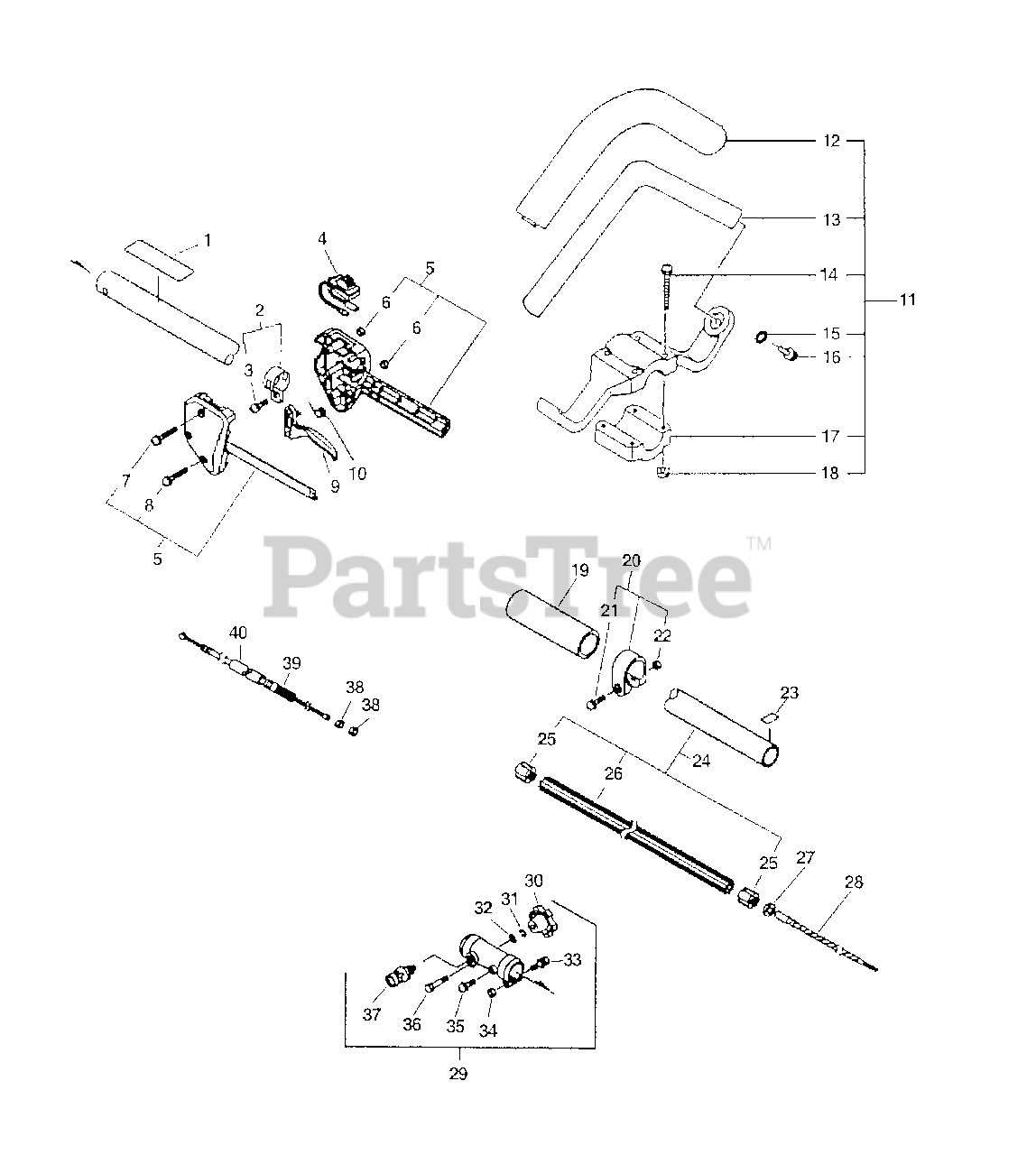

Driveshaft, Coupling, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

2

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 3

$9.49

$

In Stock, only 1 left!

0

3

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

4

Echo 16340052430

IGNITION SWITCH ASSY
(Superseded to A440000290)

$12.99

$

Usually ships in 2-4 days

0

5

Echo 17800352130

CONTROL HANDLE KIT

Note: Includes ITEMS 6-8

$4.99

$

In Stock, only 1 left!

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

8

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

10

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

11

Echo P021000021

HANDLE ASSY - FRONT
(Superseded to P021012390)

Note: Includes ITEMS 12-18

$13.99

$

In Stock, Qty 10

0

12

Echo 35121666230

GRIP, HANDLE

$4.49

$

In Stock, Qty 17

0

13

Echo 35120566230

HANDLE - FRONT

$4.49

$

Usually ships in 2-4 days

0

14

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

17

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 1 left!

0

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

20

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 21 & 22

$9.99

$

In Stock, only 1 left!

0

21

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

22

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

24

Echo 61020656730

MAIN PIPE ASSY
(Superseded to C050001240)

Note: INCLUDES ITEMS 25 & 26

$25.99

$

In Stock, only 1 left!

0

25

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

26

Echo C507000230

LINER - FLEXIBLE

$16.99

$

In Stock, Qty 17

0

27

Echo 10025156630

CUSHION

$0.99

$

In Stock, Qty 20+

0

28

Echo 61001355630

DRIVESHAFT - FLEXIBLE -- UPPER

$25.99

$

In Stock, only 2 left!

0

29

Echo 61060156730

COUPLER ASSY
(Superseded to 61060156731)

Note: INCLUDES ITEMS 30 - 37

$

$

Not available

30

Echo 35232527630

KNOB, FASTENER
(Superseded to V299000100)

$

$

Not available

31

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

32

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 90014205030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

34

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

36

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

37

Echo 17830256630

LATCH ASSY

$13.99

$

In Stock, Qty 7

0

38

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

39

Echo 17800156530

CABLE, THROTTLE

$19.99

$

In Stock, Qty 17

0

40

Echo 17812706960

TUBE

$2.49

$

In Stock, only 3 left!

0
