PAS-260 - Echo PAS Series Powerhead (SN: 04001001 - 04999999) Main Pipe Assembly, Driveshaft, Coupler -- Upper Parts Diagram

PAS Series Powerhead

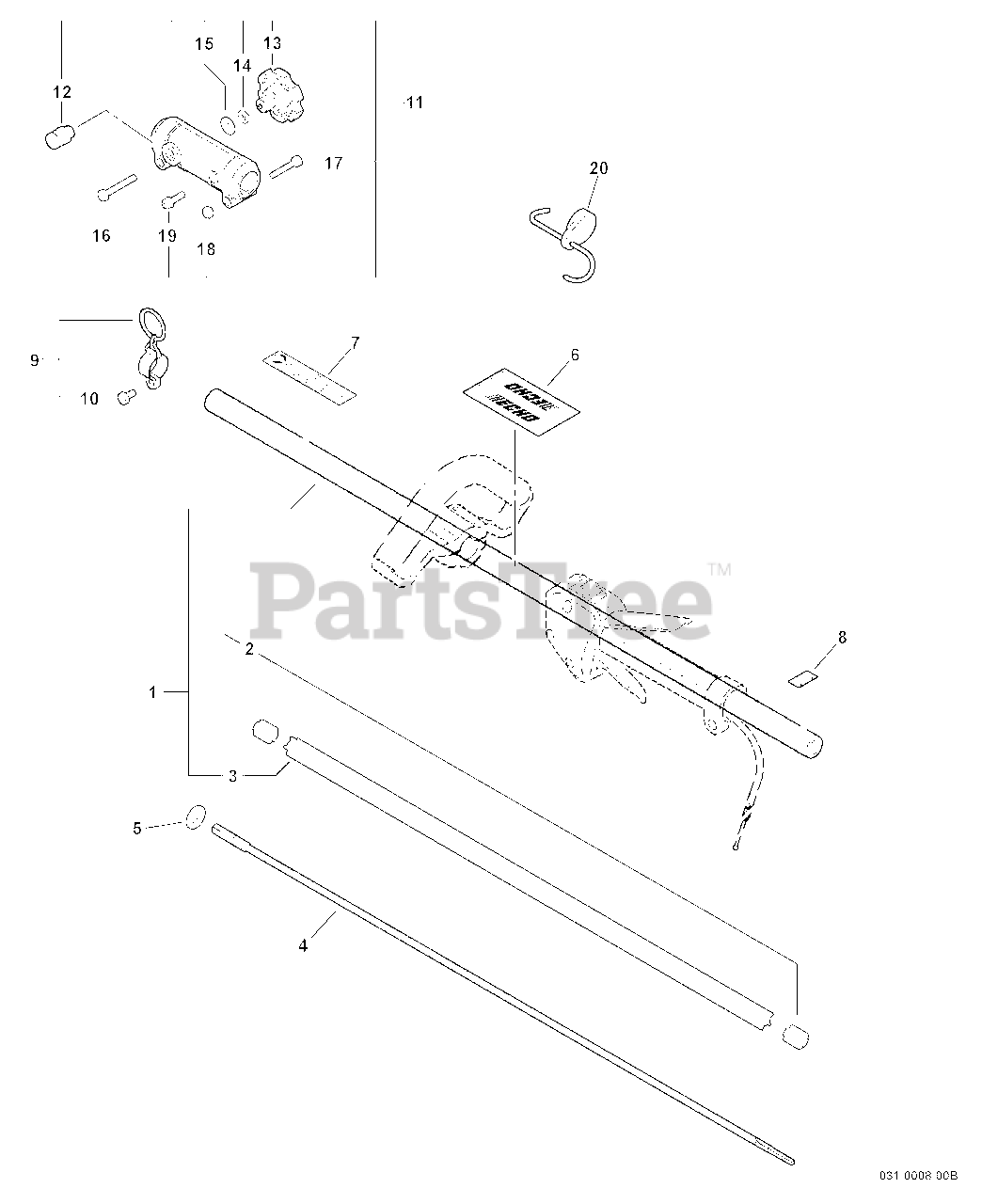

Main Pipe Assembly, Driveshaft, Coupler -- Upper Parts Diagram

  • Title

1

Echo 61020656730

MAIN PIPE ASSY
(Superseded to C050001240)

Note: INCLUDES ITEMS 2-3

$25.99

$

In Stock, only 1 left!

0

2

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

3

Echo C507000230

LINER - FLEXIBLE

$16.99

$

In Stock, Qty 17

0

4

Echo 61001355630

DRIVESHAFT - FLEXIBLE -- UPPER

$25.99

$

In Stock, only 2 left!

0

5

Echo 10025156630

CUSHION

$0.99

$

In Stock, Qty 20+

0

6

Echo X505001930

LABEL - HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

0

7

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

8

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

9

Echo C646000060

HANGER KIT
(Superseded to P021046740)

$3.49

$

In Stock, Qty 20+

0

10

Echo 90010005012

BOLT - 5X12

$0.99

$

In Stock, Qty 5

0

11

Echo 61060156732

COUPLER ASSY
(Superseded to Discontinued)

$

$

Not available

12

Echo 17830256630

LATCH ASSY

$13.99

$

In Stock, Qty 7

0

13

Echo V299000100

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

14

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

15

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

17

Echo 90014205030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

20

Echo 99944200631

PAS ATTACHMENT HANGER

$1.49

$

In Stock, only 3 left!

0
