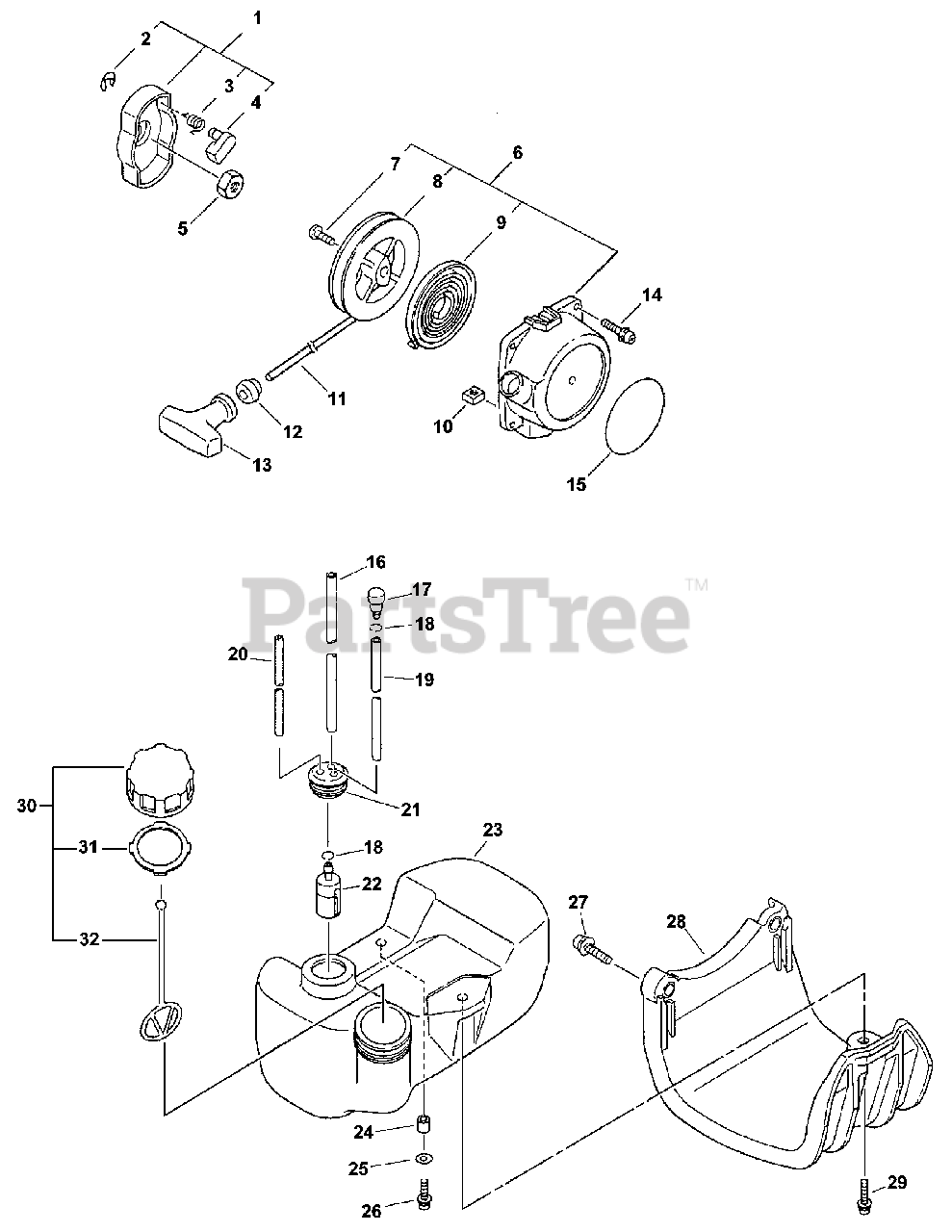

PAS-231 - Echo PAS Series Powerhead (SN: 06001001 - 06999999) Starter, Fuel System Parts Diagram

PAS Series Powerhead

Starter, Fuel System Parts Diagram

  • Title

1

Echo A052000030

STARTER PAWL ASSY

Note: INCLUDES ITEMS 2-4

$12.99

$

In Stock, Qty 20+

0

2

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

4

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

5

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

6

Echo 17720055931

STARTER ASSY

Note: INCLUDES ITEMS 7-13

$40.99

$

In Stock, Qty 6

0

7

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

8

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

9

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

10

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 7

0

12

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

13

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

14

Echo 9112604012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

15

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

16

Echo 13201038331

PIPE, FUEL - SPIRAL
(Superseded to 13201038332)

$8.49

$

In Stock, only 1 left!

0

17

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

18

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

19

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

20

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

21

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

22

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

23

Echo 13100555931

FUEL TANK ASSY
(Superseded to 13100555932)

Note: Includes ITEM 24

$38.99

$

Usually ships in 2-4 days

0

24

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

25

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

27

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

28

Echo 30511057733

GUARD, FUEL TANK

$14.99

$

In Stock, only 2 left!

0

29

Echo 90024405020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

30

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEM 31-32

$6.49

$

In Stock, only 3 left!

0

31

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

32

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+
