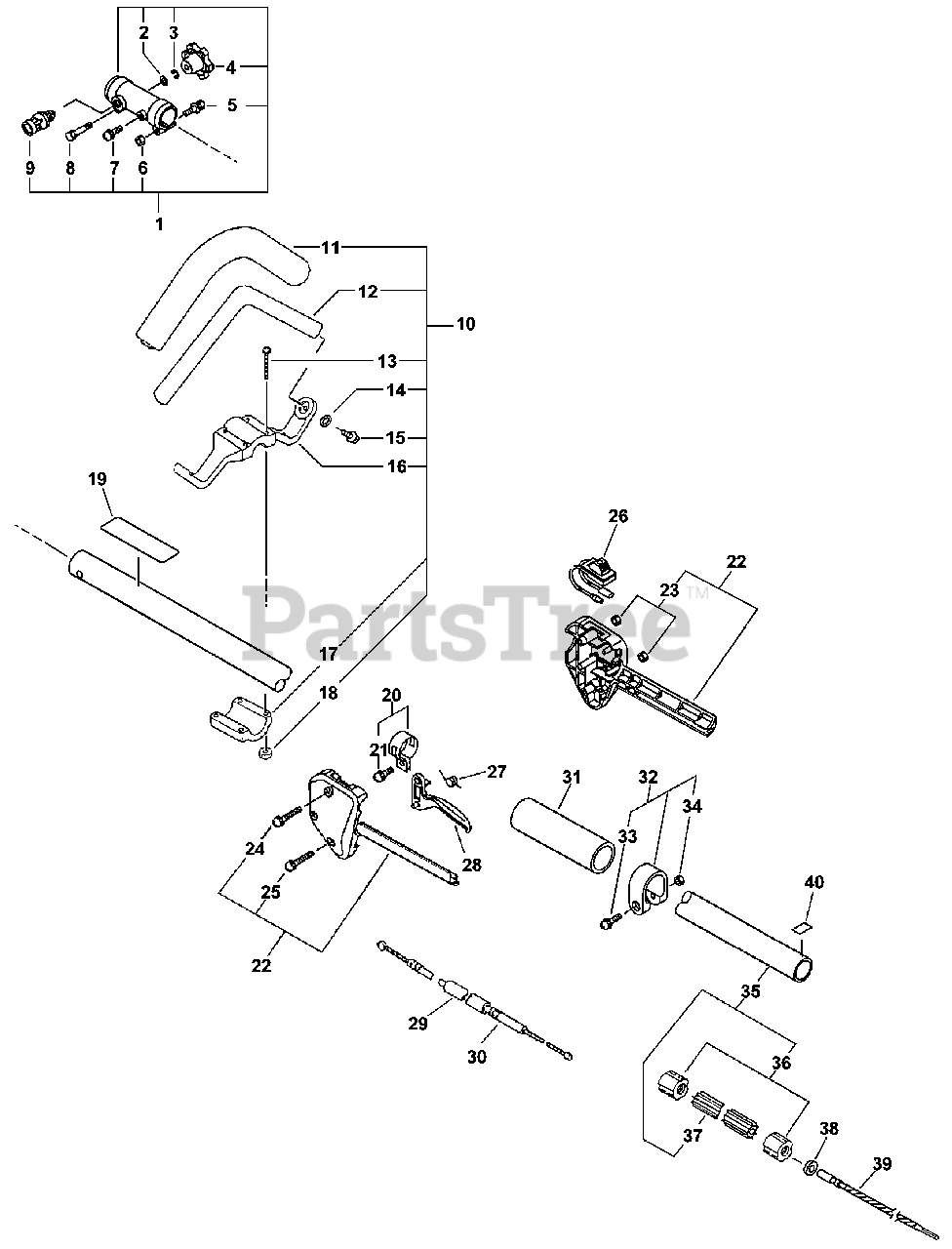

PAS-231 - Echo PAS Series Powerhead (SN: 02001001 - 02999999) Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

PAS Series Powerhead

Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

  • Title

1

Echo 61060156732

COUPLER ASSY
(Superseded to Discontinued)

Note: Includes ITEM 2-9

$

$

Not available

2

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

4

Echo V299000100

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

5

Echo 90014205030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

8

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 9

0

9

Echo 17830256630

LATCH ASSY

$13.99

$

In Stock, Qty 7

0

10

Echo P021000021

HANDLE ASSY - FRONT
(Superseded to P021012390)

Note: Includes ITEMS 11-18

$13.99

$

In Stock, Qty 10

0

11

Echo 35121666230

GRIP, HANDLE

$4.49

$

In Stock, Qty 17

0

12

Echo 35120566230

HANDLE - FRONT

$4.49

$

Usually ships in 2-4 days

0

13

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 9

0

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

16

Echo 35123266230

BRACKET, HANDLE - UPPER

$5.49

$

Usually ships in 2-4 days

0

17

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 1 left!

0

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

20

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 21

$9.49

$

In Stock, only 1 left!

0

21

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

22

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 23-25

$4.99

$

In Stock, only 1 left!

0

23

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

25

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

26

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 14

0

27

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

28

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

29

Echo V475000850

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

In Stock, only 4 left!

0

30

Echo 17800156530

CABLE, THROTTLE

$19.99

$

In Stock, Qty 17

0

31

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

32

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 33-34

$9.99

$

In Stock, only 1 left!

0

33

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

34

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 61020656730

MAIN PIPE ASSY
(Superseded to C050001240)

Note: INCLUDES ITEMS 36-37

$25.99

$

In Stock, only 1 left!

0

36

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

37

Echo C507000230

LINER - FLEXIBLE

$16.99

$

In Stock, Qty 17

0

38

Echo 10025156630

CUSHION

$0.99

$

In Stock, Qty 20+

0

39

Echo 61001355630

DRIVESHAFT - FLEXIBLE -- UPPER

$25.99

$

In Stock, only 2 left!

0

40

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0
