PAS-231 - Echo PAS Series Powerhead (SN: 02001001 - 02999999) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

PAS Series Powerhead

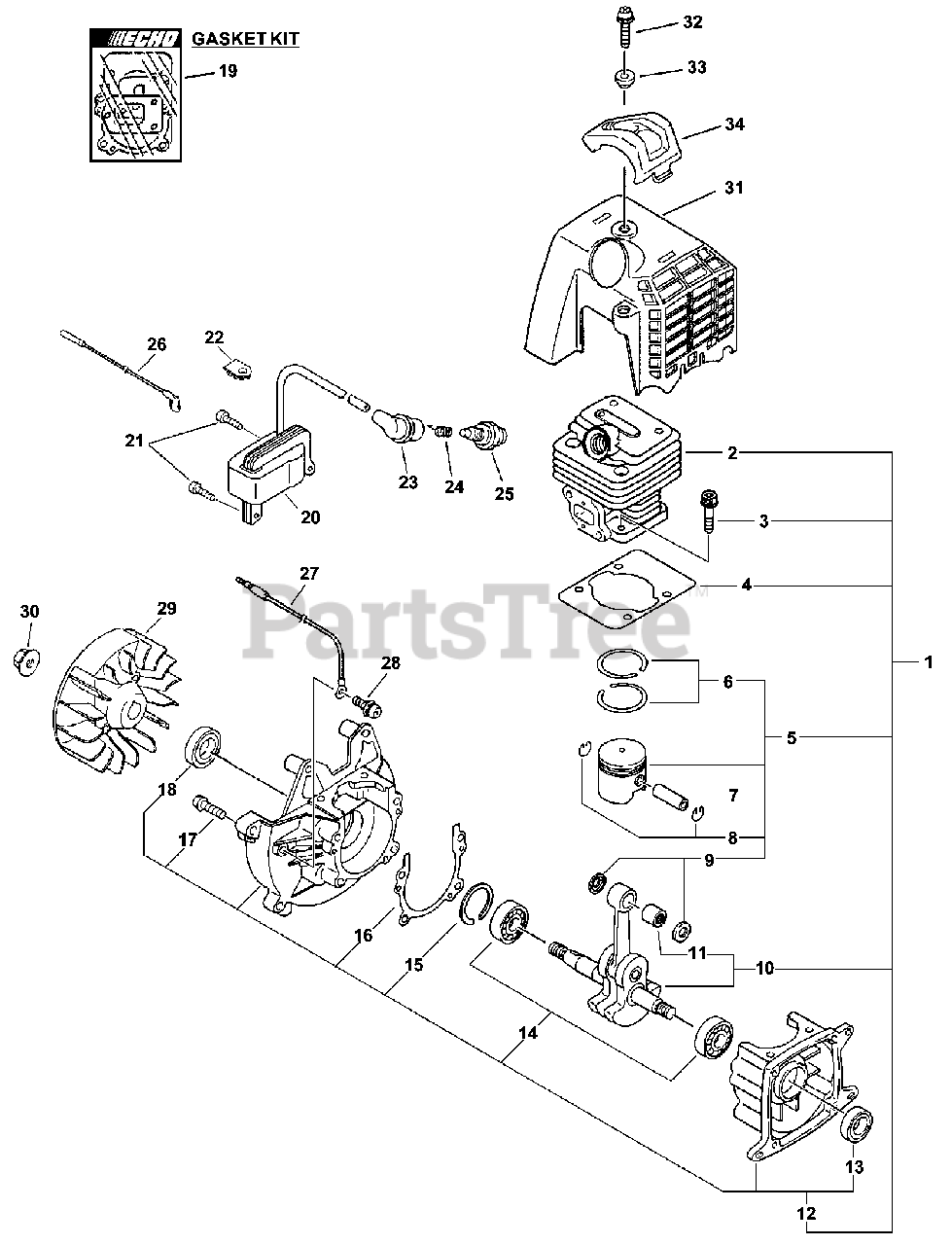

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title
1

Echo SB1045

SHORT BLOCK -- SB1045

Note: INCLUDES ITEMS 2-18

$188.99

$

Usually ships in 2-4 days

0

2

Echo A130000074

CYLINDER
(Superseded to A130000075)

$157.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo V100000010

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo P021000930

PISTON KIT

Note: Includes ITEMS 6-9

$72.99

$

Usually ships in 2-4 days

0

6

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo A011000042

CRANKSHAFT ASSY

Note: Includes ITEM 11

$177.99

$

Usually ships in 2-4 days

0

11

Echo V553000010

BEARING, NEEDLE - 8

$9.99

$

In Stock, only 2 left!

0

12

Echo P021000940

CRANKCASE KIT
(Superseded to P021000941)

Note: Includes ITEMS 13-18

$210.99

$

Usually ships in 2-4 days

0

13

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

14

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, Qty 6

0

15

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

16

Echo 10024255930

GASKET, CRANKCASE

$3.49

$

In Stock, only 1 left!

0

17

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10021228230

SEAL, OIL - 12

$4.49

$

In Stock, only 2 left!

0

19

Echo P021002600

GASKET KIT

$24.99

$

Usually ships in 2-4 days

0

20

Echo A411000010

COIL, IGNITION

$83.99

$

Usually ships in 2-4 days

0

21

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

22

$1.49

$

In Stock, only 2 left!

0

23

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, only 4 left!

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 11

0

25

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, Qty 11

0

26

Echo 16201056430

LEAD - IGNITION

$6.49

$

In Stock, only 4 left!

0

27

Echo 16201452930

LEAD - GROUND

$4.99

$

In Stock, only 1 left!

0

28

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

29

Echo A409000020

FLYWHEEL

$68.99

$

Usually ships in 2-4 days

0

30

Echo 90051500008

NUT - 8 -- FLANGE

$1.99

$

In Stock, only 3 left!

0

31

Echo A160000040

COVER, ENGINE - GRAY
(Superseded to A160000041)

$13.99

$

In Stock, only 1 left!

0

32

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

33

Echo V353000020

COLLAR - 5

$1.49

$

In Stock, Qty 20+

0

34

Echo A162000000

GUARD - TOP

$10.99

$

In Stock, Qty 12

0
