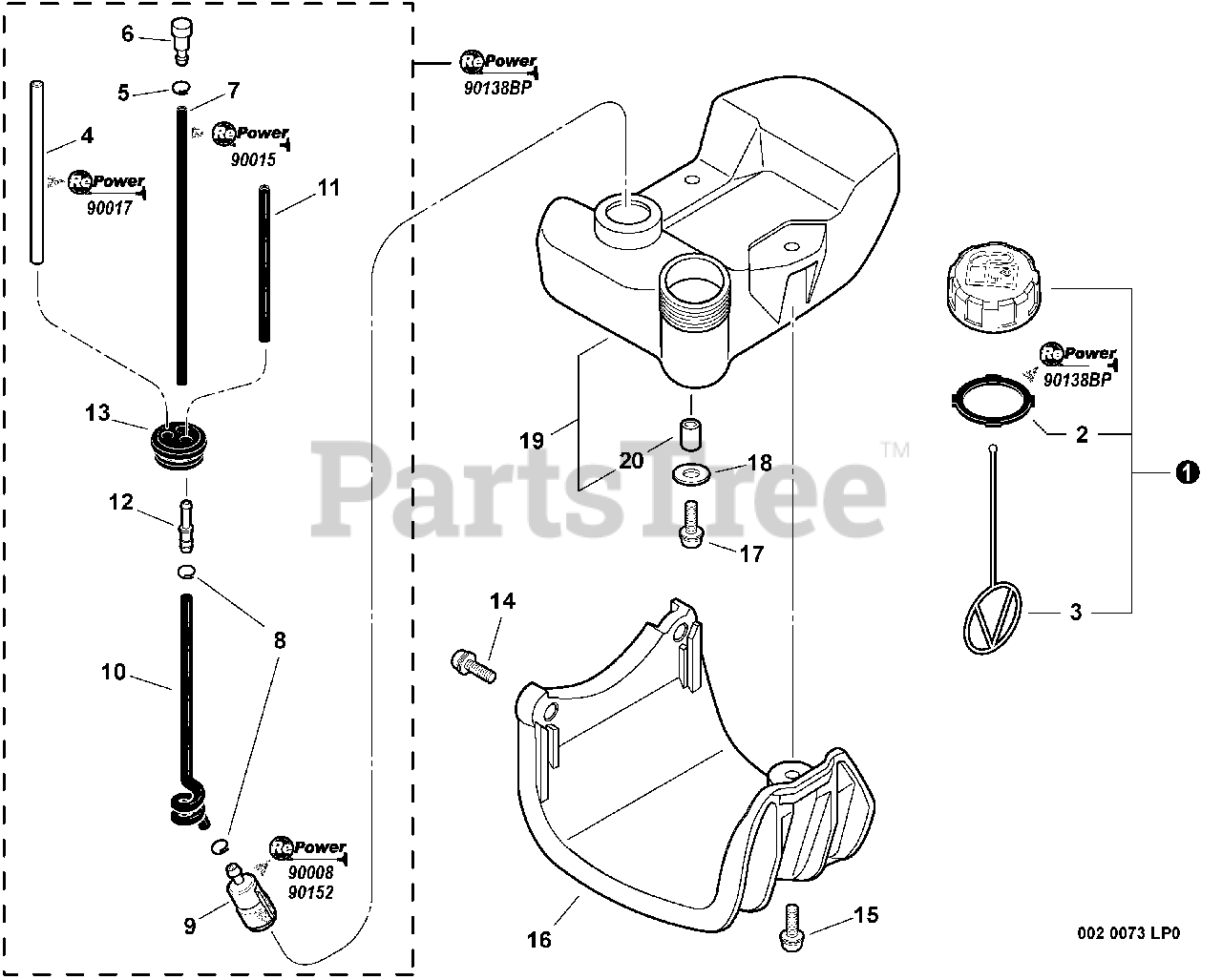

PAS-230 - Echo PAS Series Powerhead (SN: S75212021001 - S75212025631) Fuel System Parts Diagram

PAS Series Powerhead

Fuel System Parts Diagram

  • Title
1

Echo P021040030

CAP ASSY - ORANGE

Note: Includes ITEMS 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, CAP

Note: Included In RePower KIT

$4.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

6

Echo A356000031

VENT, FUEL TANK

$7.99

$

Usually ships in 2-4 days

0

7

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

8

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In RePower KIT

$9.49

$

In Stock, Qty 20+

0

10

Echo V471003080

PIPE, FUEL - SPIRAL

$4.99

$

Usually ships in 2-4 days

0

11

Echo V471003691

PIPE - 3X5X74 -- BLACK
(Superseded to V471005620)

Note: RePower BULK OPTION: N/A

$3.49

$

In Stock, only 1 left!

0

12

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

13

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

14

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

15

Echo 90024405020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

16

Echo 30511057733

GUARD, FUEL TANK

$14.99

$

In Stock, only 2 left!

0

17

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

18

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo A350000660

FUEL TANK ASSY
(Superseded to A350002320)

Note: Includes ITEM 20

$

$

Not available

20

$1.49

$

In Stock, Qty 20+

0

21

Echo 90138BP

RePower FUEL SYSTEM KIT
(Superseded to Discontinued)

$

$

Not available

22

Echo 90152

RePower TUNE-UP KIT
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0

23

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

24

Echo 90015

RePower BULK PIPE - 25 FEET

$40.99

$

In Stock, Qty 5

0

25

Echo 90017

RePower BULK PIPE - 25 FEET

Note: CLEAR

$58.99

$

In Stock, Qty 9

0
