PAS-225 - Echo PAS Series Powerhead (SN: V03312001001 - V03312999999) Carburetor Parts Diagram

PAS Series Powerhead

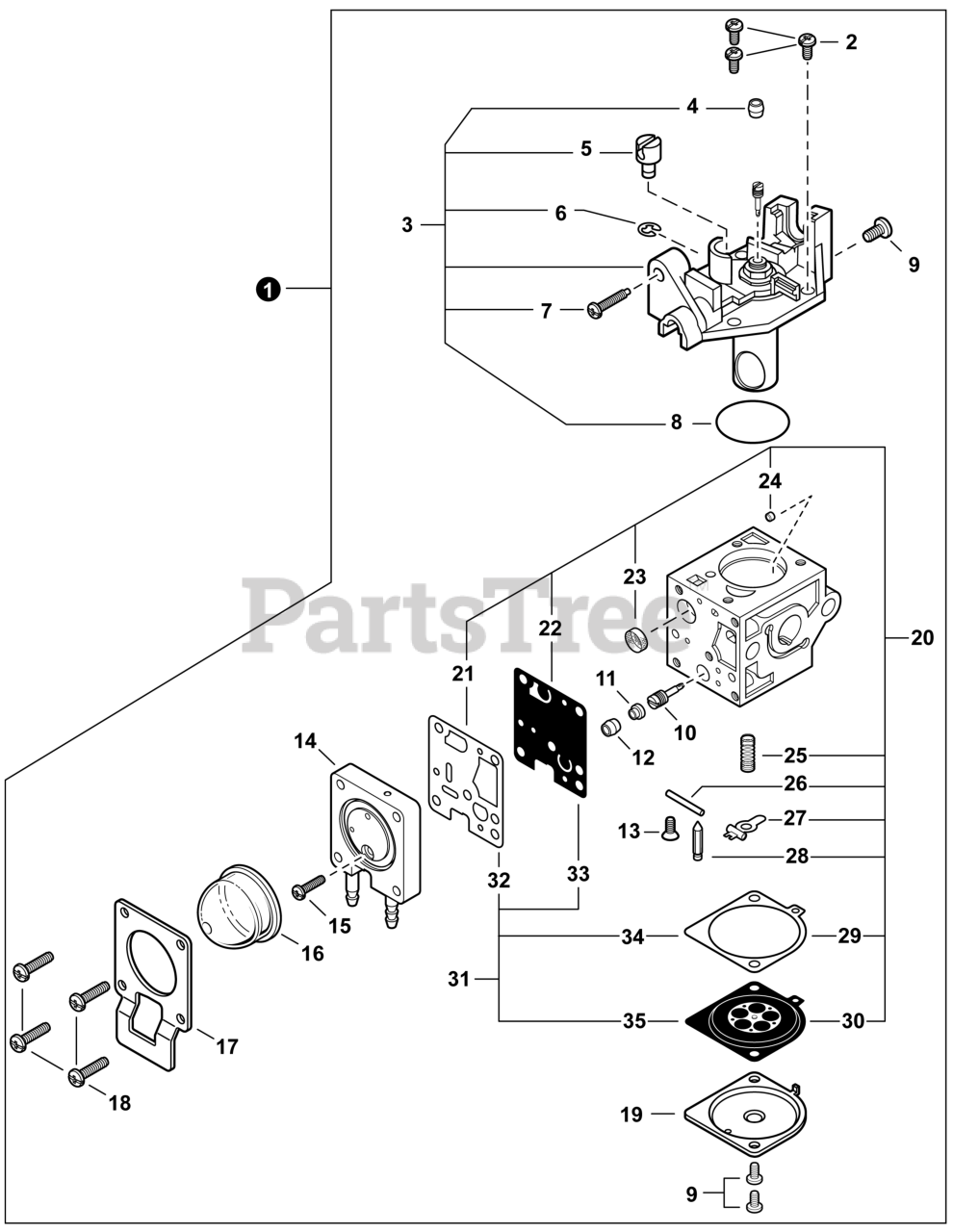

Carburetor Parts Diagram

  • Title

1

Echo A021005440

CARBURETOR - Z011-0GB

Note: Includes Items 2-35

$59.99

$

In Stock, only 1 left!

0

2

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

3

Echo P005005350

COVER KIT, ROTOR

Note: Includes Items 4-8

$

$

Currently unavailable

4

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

5

Echo P005002090

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

6

Echo P005000190

E-RING

$0.99

$

In Stock, only 3 left!

0

7

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

8

Echo P005004260

O-RING

$6.99

$

Usually ships in 2-4 days

0

9

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 7

0

10

Echo P005003500

NEEDLE, HIGH SPEED

$7.49

$

Usually ships in 2-4 days

0

11

Echo P005005320

CAP, LIMITER

$

$

Currently unavailable

12

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

13

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 12

0

14

Echo P005004240

BODY ASSY, PURGE

$29.99

$

In Stock, only 3 left!

0

15

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

16

Echo P005003110

BULB, PURGE

$6.99

$

In Stock, Qty 20+

0

17

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

18

Echo P005001900

SCREW

$0.99

$

In Stock, Qty 20+

0

19

Echo 12534252130

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

20

Echo P005004980

REPAIR KIT, CARBURETOR

Note: Includes Items 21-30

$

$

Currently unavailable

21

GASKET, PUMP

$

$

Not available

22

DIAPHRAGM, PUMP

$

$

Not available

23

SCREEN, FUEL INLET

$

$

Not available

24

GUIDE, ROLLER

$

$

Not available

25

SPRING, METERING LEVER

$

$

Not available

26

PIN, METERING LEVER

$

$

Not available

27

LEVER, METERING

$

$

Not available

28

VALVE, INLET NEEDLE

$

$

Not available

29

GASKET, METERING DIAPHRAGM

$

$

Not available

30

DIAPHRAGM, METERING

$

$

Not available

31

Echo P005004720

GASKET / DIAPHRAGM KIT

Note: Includes Items 32-35

$

$

Currently unavailable

32

GASKET, PUMP

$

$

Not available

33

DIAPHRAGM, PUMP

$

$

Not available

34

GASKET, METERING DIAPHRAGM

$

$

Not available

35

DIAPHRAGM, METERING

$

$

Not available
