PAS-225 - Echo PAS Series Powerhead (SN: T44912001001 - T44912999999) Control Handle S/N T44912001001 - T44912008200 Parts Diagram

PAS Series Powerhead

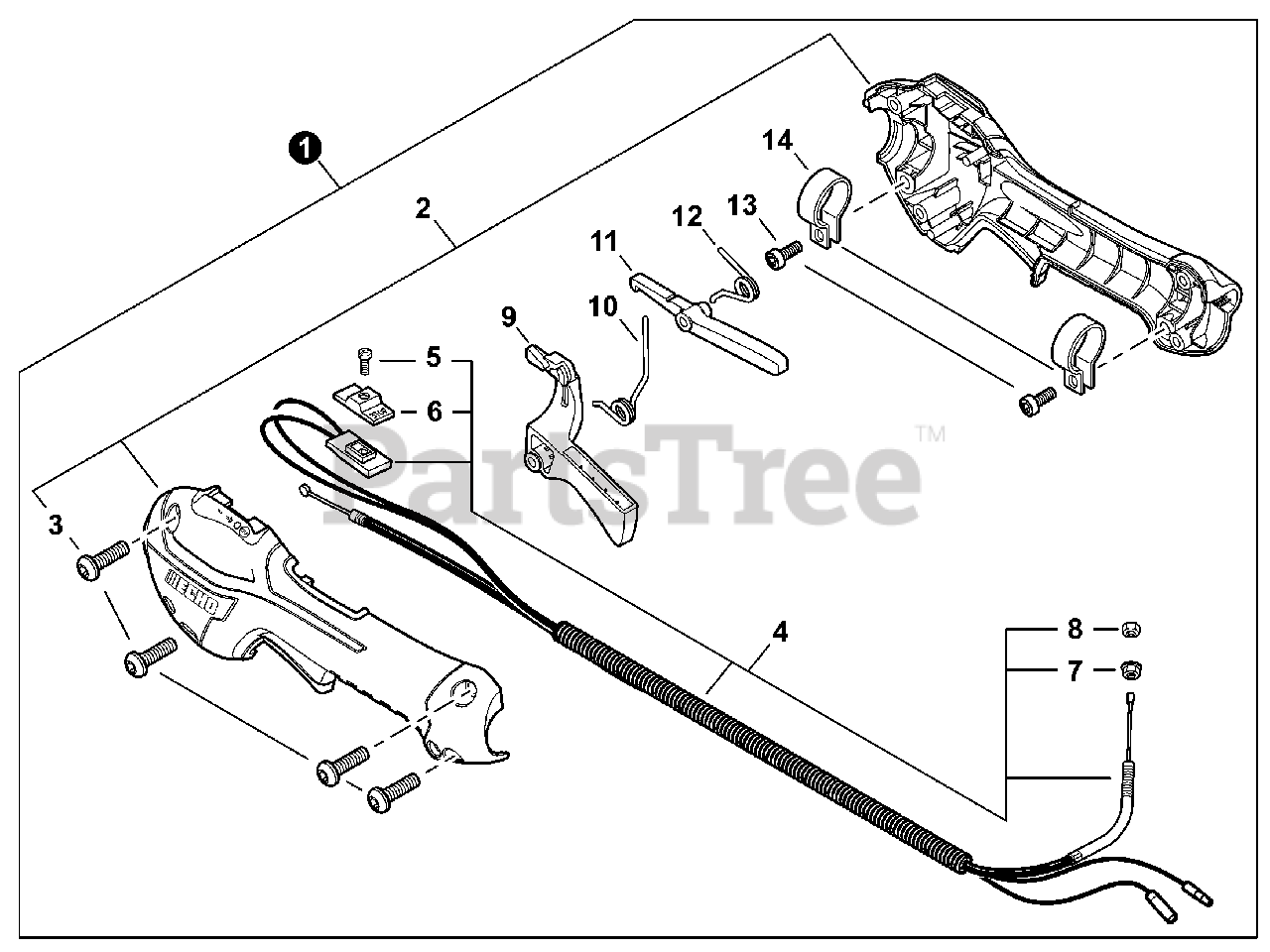

Control Handle S/N T44912001001 - T44912008200 Parts Diagram

  • Title

1

Echo P021044481

CONTROL HANDLE ASSY
(Superseded to P021044482)

Note: Includes Items 2-14

$35.99

$

In Stock, Qty 12

0

2

Echo P021044370

CONTROL HANDLE KIT
(Superseded to P021044371)

Note: Includes Item 3

$10.99

$

In Stock, only 3 left!

0

3

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

4

Echo P021044750

CABLE ASSY, CONTROL

Note: Includes Items 5-8

$17.99

$

In Stock, only 4 left!

0

5

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

6

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

7

Echo 90051800006

NUT, FLANGE 6

$1.49

$

In Stock, Qty 13

0

8

Echo 90050200006

NUT M6

$0.99

$

In Stock, only 1 left!

0

9

Echo C453000481

TRIGGER, THROTTLE
(Superseded to P021047440)

$4.49

$

In Stock, Qty 20+

0

10

Echo V452001520

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

11

Echo C460000440

LEVER, THROTTLE LOCKOUT
(Superseded to P021047440)

$4.49

$

In Stock, Qty 20+

0

12

Echo V452001510

SPRING, TORSION

$1.49

$

In Stock, Qty 5

0

13

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

14

Echo V495003020

CLAMP

$1.49

$

In Stock, Qty 9

0
