PAS-225 - Echo PAS Series Powerhead (SN: S86813001001 - S86813999999) Throttle Control S/N: S86813001001 - S86813012168 Parts Diagram

PAS Series Powerhead

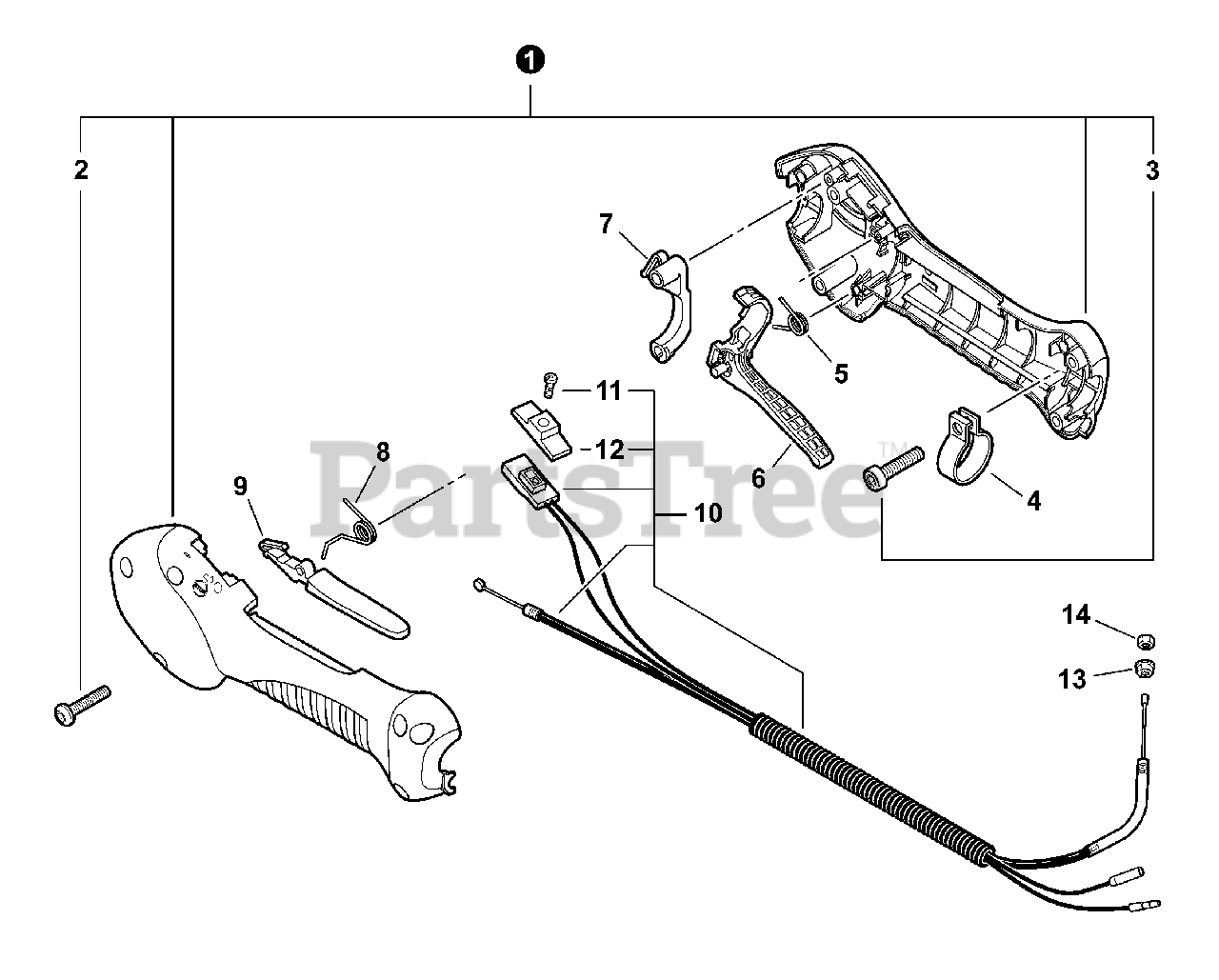

Throttle Control S/N: S86813001001 - S86813012168 Parts Diagram

  • Title

1

Echo P021015640

CONTROL HANDLE ASSY

Note: Includes Items 2-3

$10.99

$

In Stock, only 1 left!

0

2

Echo V804000020

SCREW - 4×20 -- TAPPING

$0.99

$

In Stock, Qty 18

0

3

Echo V805000160

SCREW - 5×20

$0.99

$

In Stock, Qty 20+

0

4

Echo V495000680

CLAMP

$1.49

$

In Stock, only 3 left!

0

5

Echo V452000210

SPRING, TRIGGER
(Superseded to V452000211)

$0.99

$

In Stock, Qty 20+

0

6

Echo C450000183

TRIGGER, THROTTLE

$2.99

$

In Stock, Qty 20+

0

7

Echo C453000151

LOCKOUT, TRIGGER

$2.99

$

In Stock, Qty 20+

0

8

Echo V452000240

SPRING, LEVER RETURN

$0.99

$

In Stock, Qty 20+

0

9

Echo C460000051

LEVER, THROTTLE LOCKOUT

$1.49

$

In Stock, Qty 20+

0

10

Echo P021015650

CONTROL CABLE ASSY

Note: Includes Items 11-12

$17.99

$

In Stock, Qty 8

0

11

Echo 9154503010

SCREW - 3×10

$0.99

$

In Stock, Qty 20+

0

12

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051800006

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 13

0

14

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0
