PAS-2100 - Echo PAS Series Powerhead (Type 1E) (SN: 001001 & Above) Crankcase, Cover, Engine, Fan Cover Parts Diagram

PAS Series Powerhead (Type 1E)

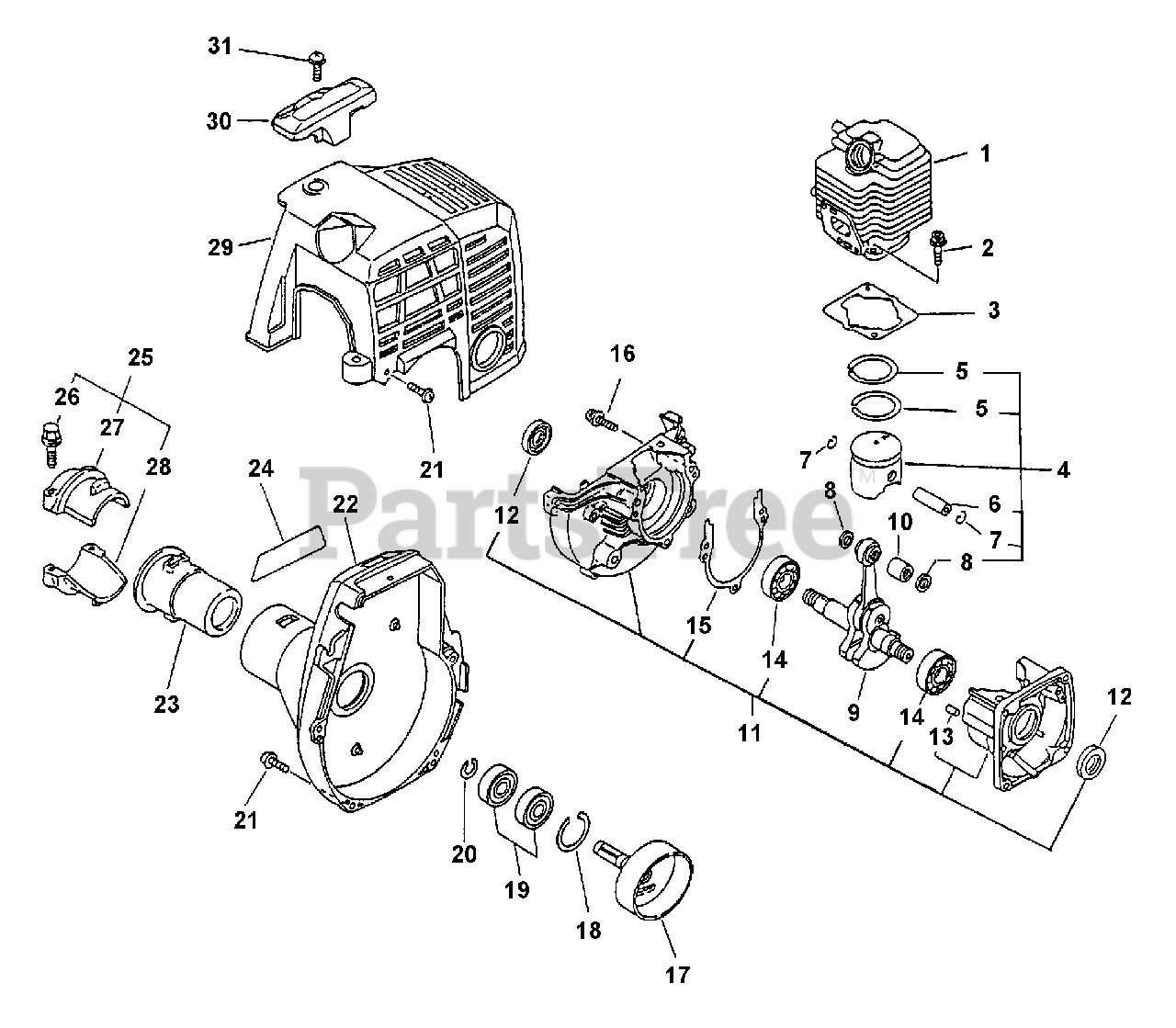

Crankcase, Cover, Engine, Fan Cover Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

$109.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT 88900042031

$3.99

$

In Stock, Qty 6

0

4

Echo 10000048732

PISTON KIT

Note: INCLUDES ITEMS 5 - 8

$77.99

$

In Stock, only 1 left!

0

5

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

------------------

CRANKSHAFT ASSY

Note: USE SB1026

$

$

Not available

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

------------------

CRANKCASE KIT

Note: USE SB1026

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

------------------

GASKET, CRANKCASE

Note: INCLUDED IN KIT 88900042031

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

17

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$13.99

$

In Stock, Qty 6

0

18

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

19

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

22

Echo 10150352131

CASE, FAN

$65.99

$

In Stock, only 1 left!

0

23

Echo 61091055230

CUSHION

$7.49

$

In Stock, only 2 left!

0

24

Echo 89011266030

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: INCLUDES ITEMS 26 - 28

$18.99

$

Usually ships in 2-4 days

0

26

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

27

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

28

Echo A575000100

CLAMP, MAIN PIPE - LOWER

$8.49

$

Usually ships in 2-4 days

0

29

Echo 10151448930

COVER, ENGINE

$11.99

$

In Stock, Qty 10

0

30

Echo 15991254130

GUARD - TOP

$7.99

$

In Stock, Qty 7

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

Note: OPTIONAL ENGINE RePower

$

$

Not available

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: (Optional);INCLUDES THE FOLLOWING

$16.99

$

In Stock, only 1 left!

0

Echo 10101044332

GASKET, CYLINDER

Note: OPTIONAL

$3.99

$

In Stock, Qty 6

0

------------------

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.49

$

In Stock, only 2 left!

0

Echo 13001642031

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$0.99

$

In Stock, Qty 16

0

Echo 14586642031

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 5

0
