PAS-2000 - Echo PAS Series Powerhead (Type 1E) (SN: 001001 & Above) Engine, Fan Housing, Cover Parts Diagram

PAS Series Powerhead (Type 1E)

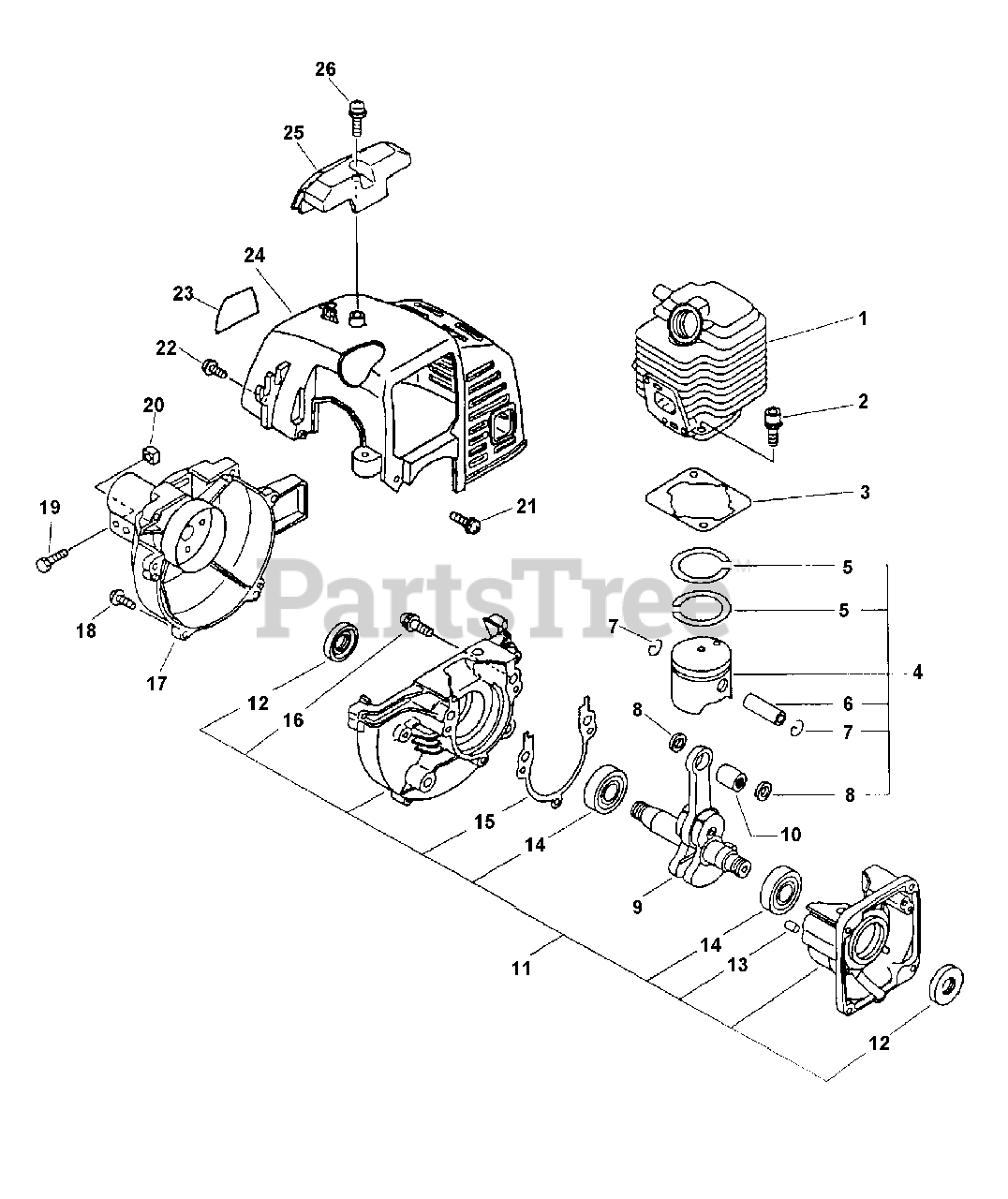

Engine, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

$109.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE GASKET KIT 88900042031

$3.99

$

In Stock, only 4 left!

0

4

Echo 10000048732

PISTON KIT

Note: INCLUDES ITEMS 5 - 8

$77.99

$

In Stock, only 1 left!

0

5

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

------------------

CRANKSHAFT ASSY

Note: USE SB1026

$

$

Not available

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

------------------

CRANKCASE KIT

Note: USE SB1026

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT 88900042031

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

17

Echo 10150356630

FAN CASE ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo 90016204018

SCREW - 4X18

$1.49

$

Usually ships in 2-4 days

0

19

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

20

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

22

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 19

0

23

Echo 89011266430

LABEL - MODEL

$2.99

$

Usually ships in 2-4 days

0

24

Echo 10151448731

COVER, ENGINE - GRAY

$19.99

$

Usually ships in 2-4 days

0

25

Echo 15991248630

GUARD, TOP - GRAY
(Superseded to Discontinued)

$

$

Not available

26

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

$

$

Not available

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: OPTIONAL

$16.99

$

In Stock, only 1 left!

0

Echo 10101044332

GASKET, CYLINDER

Note: OPTIONAL

$3.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo 13001642031

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.49

$

In Stock, Qty 15

0

Echo 14586642031

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 5

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$0.99

$

In Stock, Qty 16

0
