PA 1330 ESS (1696572-00) - Parton 30" Snow Thrower, 16.5hp (2015) Auger Drive Group Parts Diagram

30" Snow Thrower, 16.5hp

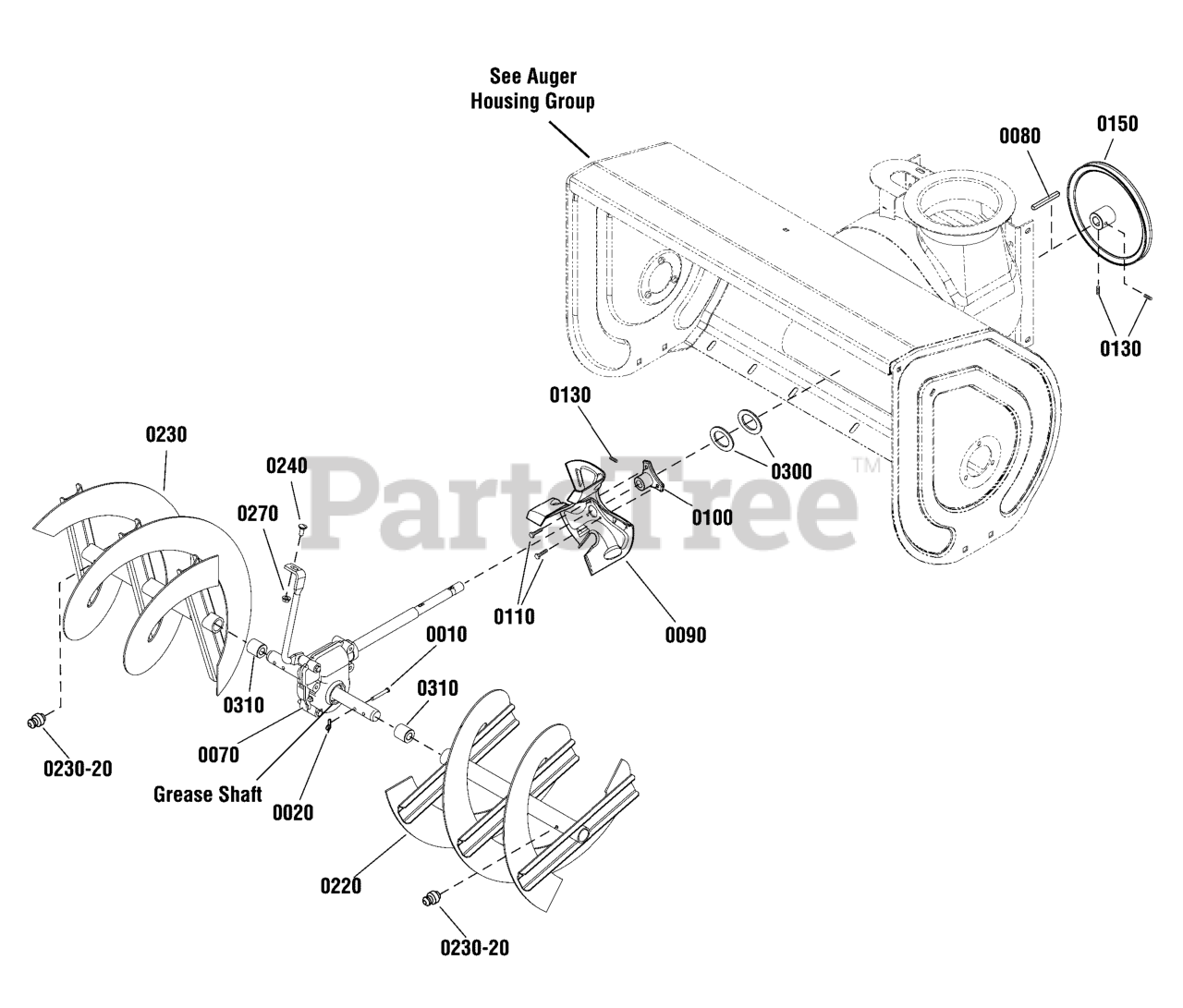

Auger Drive Group Parts Diagram

  • Title

0010

Murray 1739295YP

PIN, Shear, 1-3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0020

Murray 1739292YP

PIN, Cotter, Self Locking
(Superseded to 703060)

$4.49

$

In Stock, Qty 12

0

0070

Murray 1754690YP

GEAR BOX ASSEMBLY
(Superseded to 1687729)

$542.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0090

Murray 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 17

0

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0130

Murray 7090848SM

SCREW, Set Square Head, 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Murray 1752220YP

PULLEY, Auger

$87.99

$

In Stock, only 4 left!

0

0220

Murray 1737079BJYP

AUGER ASSEMBLY, LH

Note: (Includes Ref. No. 0230-20)

$173.99

$

Usually ships in 2-12 days

0

0230

Murray 1737078BJYP

AUGER ASSEMBLY, RH

Note: (Includes Ref. No. 0230-20)

$142.99

$

In Stock, only 1 left!

0

0230-20

Murray 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0240

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0270

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Murray 703151

WASHER, .766 ID X 1.06 OD X .07

$3.49

$

In Stock, Qty 20+

0

0310

Murray 1733406SM

SPACER, 1" Lg

$5.49

$

In Stock, only 2 left!

0

--

Murray 1739821YP

KIT, Shear Pin

Note: (Includes Ref. Nos. 0010 & 0020)

$13.99

$

Usually ships in 2-12 days

0
