P61 (5900227) - Ferris 61" Mower Deck (SN: 1022 & Above) 61" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

61" Mower Deck

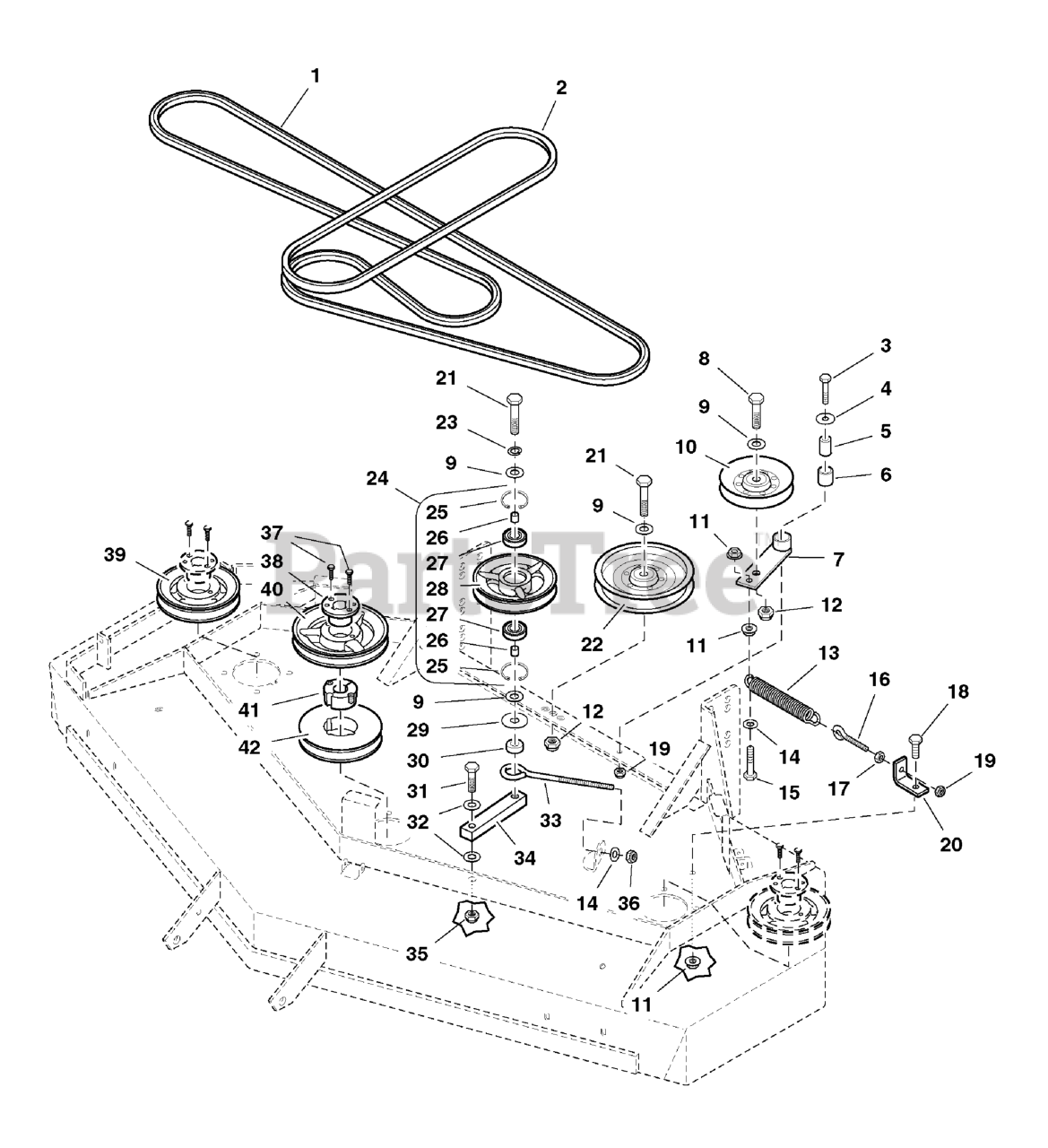

61" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5020824

BELT, Blade Spindle
(Superseded to 5020824SM)

$112.99

$

Usually ships in 2-12 days

0

2

Ferris 5021679

BELT, Deck Drive

$99.99

$

Usually ships in 2-12 days

0

3

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

4

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

5

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

6

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5042145B

IDLER ARM, Complete

$70.99

$

In Stock, only 2 left!

0

8

Ferris 5025018X16

BOLT, 1/2-20 x 2

$2.49

$

Usually ships in 2-12 days

0

9

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

10

Ferris 5021097

PULLEY, V-Idler
(Superseded to 5021097SM)

$40.99

$

Usually ships in 2-12 days

0

11

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

12

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

13

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

16

EYEBOLT

$

$

Not available

17

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

19

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5042142B

SPRING ANCHOR
(Superseded to 5042142BFS)

$12.99

$

Usually ships in 2-12 days

0

21

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

23

Ferris 5025173

WASHER, 1/2" Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

24

Ferris 5030819

IDLER PULLEY, Complete

$148.99

$

Usually ships in 2-12 days

0

25

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

In Stock, only 1 left!

0

26

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

27

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

28

Ferris 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

29

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

30

Ferris 5044609

SPACER, .52 X 1.00 X .38
(Superseded to 5044609SM)

$6.49

$

Usually ships in 2-12 days

0

31

Ferris 5025016X14

BOLT, 7/16-20 X 1-3/4" GD.5
(Superseded to 5025016X14YP)

$5.99

$

Usually ships in 2-12 days

0

32

Ferris 5025157

WASHER, 7/16" SAE
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

33

Ferris 5021811

EYEBOLT, 3/8" x 8"
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

34

Ferris 5044610B

ARM, Idler

$41.99

$

Usually ships in 2-12 days

0

35

Ferris 5025094

NUT, 7/16-20 Hex Nylon Lock
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

36

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

37

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

38

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 2 left!

0

39

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

40

Ferris 5020815

PULLEY, Spindle
(Superseded to 5020815SM)

$111.99

$

Usually ships in 2-12 days

0

41

Ferris 5022160

BUSHING, Taper Lock

$66.99

$

Usually ships in 2-12 days

0

42

Ferris 5022159

PULLEY, Taper Lock

$188.99

$

Usually ships in 2-12 days

0
