P 91 GT (13AP91GT897) - Columbia 46" Lawn Tractor (2012) Mower Deck 46-Inch Parts Diagram

46" Lawn Tractor

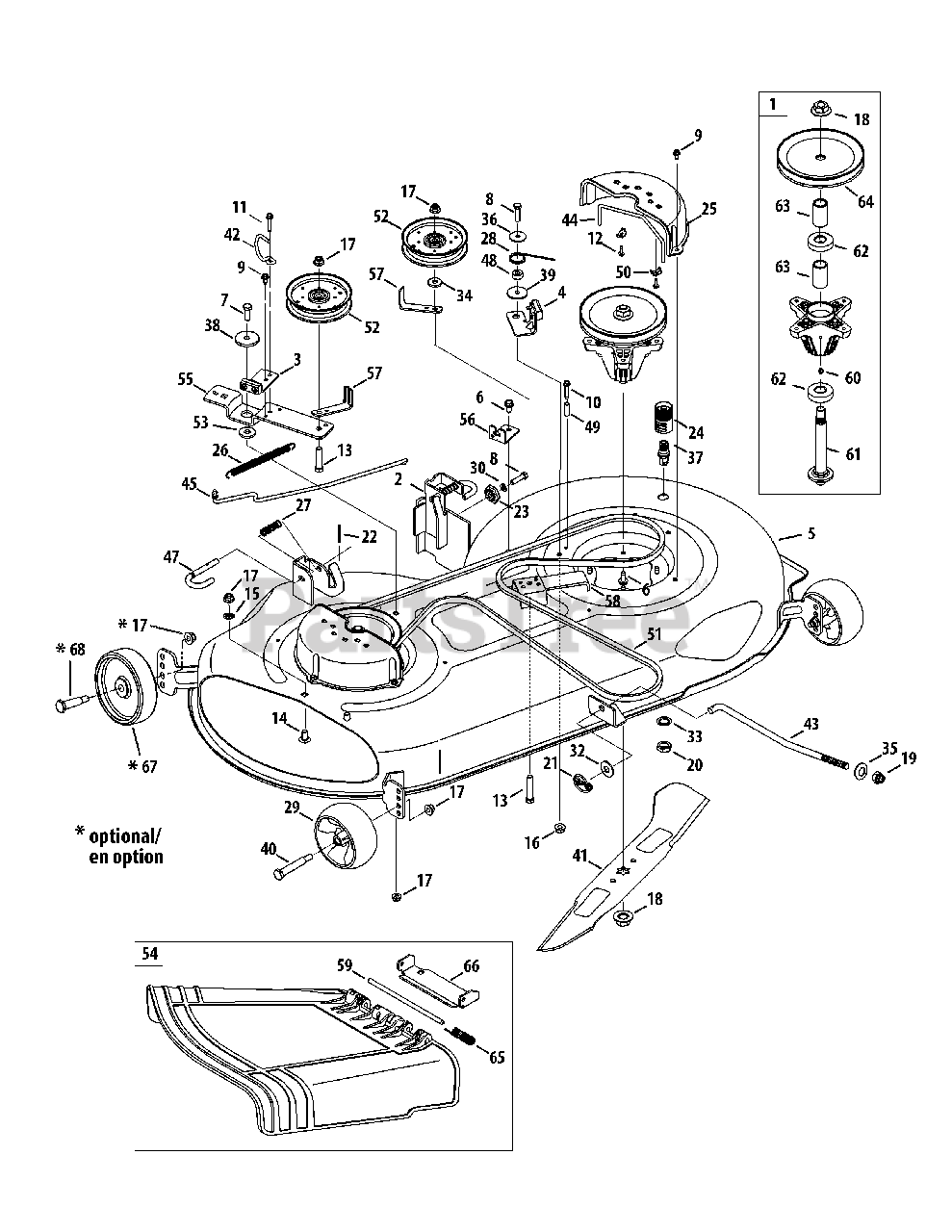

Mower Deck 46-Inch Parts Diagram

  • Title

1

MTD 918-04865A

Pulley Spindle Ass’y 6.93 dia.

$147.99

$

In Stock, only 3 left!

0

2

MTD 683-0254B-0606

Deck Hanger Bracket Ass'y LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

MTD 983-04511

Deck Brake Assembly

$63.99

$

In Stock, Qty 20+

0

4

MTD 983-04525

Deck Brake Assembly

$45.99

$

In Stock, Qty 20+

0

5

MTD 983-04578A-0606

Deck Ass'y, 46" (decks w/2 wheel mounts)
(Superseded to 983-04578B-0606)

$471.99

$

Usually ships in 3-6 days

0

6

MTD 710-04484

S-Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0514

Hex. Hd. Cap Screw. 3/8-16 x 1.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0528

Hex Wash Tap Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

9

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0642

Hex Hd. TT Screw. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1003

Screw, B, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

13

MTD 710-3144

Hex. Hd. Cap Screw. 3/8-16 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3178

Carriage Bolt 3/8-16 x .75 Gr. 1

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04063

Hex Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04065

Hex Flange Locknut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0417A

Hex Flange Locknut 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

MTD 712-04243

Flexloc Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

MTD 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

21

MTD 753-04070

Lynch Pin

$9.99

$

In Stock, Qty 20+

0

22

MTD 914-0470

Cotter Pin .08 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

23

MTD 917-04074

Deck Gear Ad juster

$13.99

$

In Stock, Qty 9

0

24

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

25

MTD 731-06496

Belt Cover

$23.99

$

In Stock, Qty 20+

0

26

MTD 932-0384

Extension Spring .62 dia. x 6.12 Lg.

$14.99

$

In Stock, Qty 11

0

27

MTD 732-04652

Compression Spring .535 x 1.751

$6.99

$

In Stock, only 2 left!

0

28

MTD 732-04773

Torsion Spring .992 ID x 1.17 OD

$4.49

$

In Stock, Qty 10

0

29

MTD 734-04155

Deck Wheel 5.0 Dia.

$20.99

$

In Stock, Qty 20+

0

30

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

32

MTD 936-0179

Flat Washer .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

33

MTD 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

34

MTD 736-0262

Flat Washer .385 ID x .870 OD x .092

$3.99

$

In Stock, Qty 20+

0

35

MTD 736-0317

Cupped Washer .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

36

MTD 736-0362

Flat Washer .330 ID x 1.25 OD x .06

$4.49

$

In Stock, only 4 left!

0

37

MTD 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

38

MTD 738-04162A

Shoulder Spacer .8540 x .200
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

39

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

40

MTD 938-3056

Shoulder Bolt .496 x 2.5, 3/8-16

$9.49

$

In Stock, Qty 20+

0

41

MTD 942-04290

Blade, 23.23", 2-in-1
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

42

MTD 747-05323

Belt Keeper Rod

$14.99

$

In Stock, only 1 left!

0

43

MTD 747-04944B

Deck Lift Rod

$24.99

$

In Stock, Qty 5

0

44

MTD 747-05011

Belt Keeper Rod

$10.99

$

In Stock, Qty 20+

0

45

MTD 747-05052

Brake Control Rod
(Superseded to 747-05052A)

$16.99

$

In Stock, Qty 14

0

47

MTD 747-1116

Deck Release Rod

$12.99

$

In Stock, Qty 6

0

48

MTD 750-0258

Spacer .315 x .750 x .375

$11.99

$

In Stock, only 1 left!

0

49

MTD 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

50

MTD 751B221535

Cas ing Clamp

$10.99

$

In Stock, Qty 10

0

51

MTD 954-04219

V-Belt

$50.99

$

In Stock, Qty 20+

0

52

MTD 756-04129B

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

53

MTD 936-0344

Flat Washer .385 ID x 1.0 OD x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

54

MTD 631-04349

Side Dis charge Chute Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

55

MTD 783-05946

Idler Pivot Bracket

$38.99

$

In Stock, Qty 9

0

56

MTD 783-06243-0606

Deck Cable Engagement Bracket

$10.99

$

Usually ships in 3-6 days

0

57

MTD 783-06368A-0606

Belt Guard Pulley Bracket
(Superseded to 783-06368A-0637)

$21.99

$

In Stock, Qty 20+

0

58

MTD 783-06643-0606

Deck Idler Support Bracket

$9.49

$

Usually ships in 3-6 days

0

59

MTD 711-04847B

Hinge Pin .3125 diam. x 7.96" Lg.

$8.99

$

In Stock, Qty 7

0

60

MTD 937-3000

Fitting

$4.99

$

In Stock, Qty 20+

0

61

MTD 738-1186A

Spindle Shaft 6.11" Lg.

$49.99

$

In Stock, Qty 14

0

62

MTD 941-0919A

Ball Bearing .787 x 1.85 x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

63

MTD 750-04936

Spacer .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

64

MTD 756-04356

Deck Pulley 6.93 Dia.

$37.99

$

In Stock, only 1 left!

0

65

MTD 732-04372

Torsion Spring .44 ID x 2.0

$10.99

$

In Stock, Qty 8

0

66

MTD 783-06074A

Chute Bracket (46")

$32.99

$

In Stock, only 1 left!

0

67

MTD 734-0973

Deck Wheel 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

68

MTD 938-0373

Shoulder Bolt .496 x 1.5

$9.49

$

In Stock, Qty 20+

0
