P 91 GS - MTD Pro Overseeder (2010) Mower Deck 42 Parts Diagram

Pro Overseeder

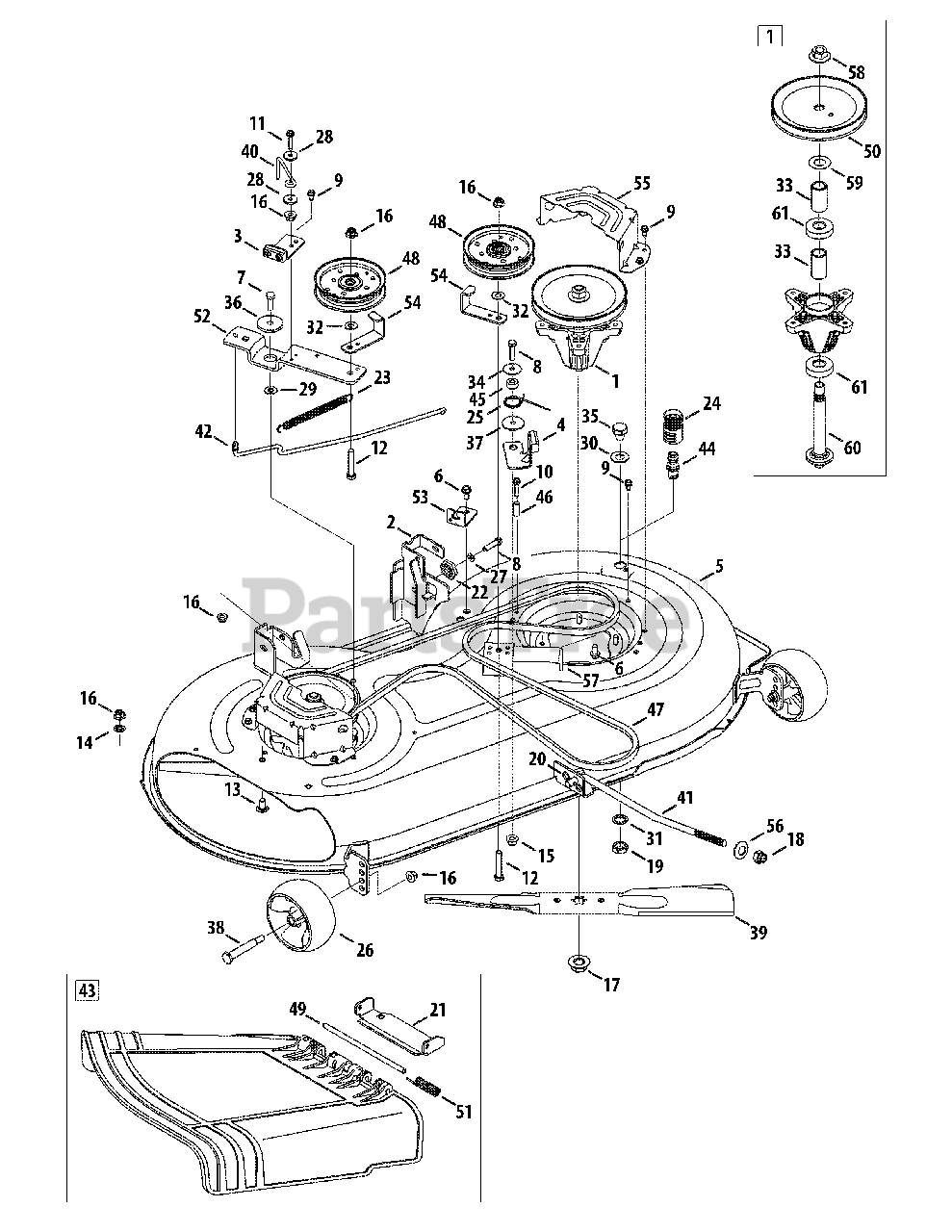

Mower Deck 42 Parts Diagram

  • Title

1

MTD 918-04822A

Pulley Spindle Ass’y 6.3 dia.
(Superseded to 918-04822B)

$121.99

$

In Stock, only 1 left!

0

2

MTD 683-0254B-0606

Deck Hanger Bracket Ass'y LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

MTD 983-04511

Deck Brake Assembly

$63.99

$

In Stock, Qty 20+

0

4

MTD 983-04525

Deck Brake Assembly

$45.99

$

In Stock, Qty 20+

0

5

MTD 983-04572-0606

Deck Assembly, 42" w/ deck wheels
(Superseded to 983-04572A-0637)

$645.99

$

Usually ships in 3-6 days

0

6

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0514

Hex. Hd. Cap Scr. 3/8-16 x 1.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0528

Hex Wash Tap Scr 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, only 1 left!

0

11

MTD 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

12

MTD 710-3144

Hex. Hd. Cap Scr. 3/8-16 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-3178

Carriage Bolt 3/8-16 x .75 Gr. 1

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04063

Hex Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, only 4 left!

0

16

MTD 712-04065

Hex Flange Locknut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0417A

Hex Flange Locknut 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

MTD 712-04243

Hex Locknut 1/2-13

$4.49

$

In Stock, Qty 20+

0

19

MTD 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

20

MTD 714-04043

Bow Tie Cotter Pin

$4.99

$

In Stock, Qty 18

0

21

MTD 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

22

MTD 917-04074

Deck Gear Adjuster

$13.99

$

In Stock, Qty 16

0

23

MTD 932-0384

Extension Spring .62 dia. x 6.12 Lg.

$14.99

$

In Stock, Qty 12

0

24

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

25

MTD 732-04727

Torsion Spring .992 ID x 1.17 OD

$

$

Not available

26

MTD 734-04155

Deck Wheel 5.0 Dia.

$20.99

$

In Stock, Qty 20+

0

27

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

28

MTD 936-0176

Flat Washer .265 ID x .938 OD x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

29

MTD 936-0344

Flat Washer .385 ID x 1.0 OD x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

30

MTD 736-0187

Flat Washer .640 ID x 1.24 OD x .06

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

32

MTD 736-0262

Flat Washer .385 ID x .870 OD x .092

$3.99

$

In Stock, Qty 10

0

33

MTD 750-04936

Spacer .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

34

MTD 736-0362

Flat Washer .330 ID x 1.25 OD x .06

$4.49

$

In Stock, Qty 7

0

35

MTD 738-04146

Screw Plug M16 x 1.50

$9.49

$

Usually ships in 3-6 days

0

36

MTD 738-04162A

Shoulder Spacer .8540 x .200
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

37

MTD 738-04166

Shoulder Spacer .50 Dia x .1475

$6.49

$

In Stock, Qty 8

0

38

MTD 938-3056

Shoulder Bolt .496 x 2.5, 3/8-16

$9.49

$

In Stock, Qty 20+

0

39

MTD 942-04308

Blade, 21.23", 2-in-1
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

40

MTD 747-04530

Belt Keeper Rod

$7.49

$

In Stock, Qty 20+

0

41

MTD 747-04944B

Front Lift Deck Rod

$24.99

$

In Stock, Qty 5

0

42

MTD 747-05105

Brake Control Rod
(Superseded to 747-05105B)

$21.99

$

In Stock, Qty 20+

0

43

MTD 631-04349

Side Discharge Chute Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

44

MTD 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

45

MTD 750-0258

Spacer .315 x .750 x .375" Lg.

$11.99

$

In Stock, only 1 left!

0

46

MTD 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

47

MTD 954-04060B

V-Belt
(Superseded to 954-04060C)

$50.99

$

In Stock, Qty 11

0

48

MTD 756-04129B

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

49

MTD 711-04847A

Hinge Pin .3125 diam. x 7.96" Lg.
(Superseded to 711-04847B)

$8.99

$

In Stock, Qty 8

0

50

MTD 956-1227

Deck Pulley 6.3 dia.

$26.99

$

In Stock, only 4 left!

0

51

MTD 732-04372

Torsion Spring .44 ID x 2.0

$10.99

$

In Stock, Qty 9

0

52

MTD 783-05946

Idler Pivot Bracket

$38.99

$

In Stock, Qty 11

0

53

MTD 783-06243-0637

Deck Cable Engagement Bracket

$10.99

$

In Stock, only 2 left!

0

54

MTD 783-06368-0637

Belt Guard Pulley Bracket
(Superseded to 783-06368A-0637)

$21.99

$

In Stock, Qty 20+

0

55

MTD 783-06424A-0637

Belt Cover

$10.99

$

In Stock, Qty 20+

0

56

MTD 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

57

MTD 783-06643-0637

Deck Support Station ary Idler Brkt.

$9.49

$

Usually ships in 3-6 days

0

58

MTD 712-0417A

Hex Flange Locknut 5/8-18

$6.99

$

In Stock, Qty 20+

0

59

MTD 936-0351

Flat Washer .760 ID x 1.5 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

60

MTD 738-1186A

Spindle Shaft 6.11" Lg.

$49.99

$

In Stock, Qty 14

0

61

MTD 941-0919

Ball Bearing .787 ID x 1.85 OD x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0
