P 91 GS (13AP91GS897) - Columbia 42" Lawn Tractor (2010) Label Map 42-Inch Parts Diagram

42" Lawn Tractor

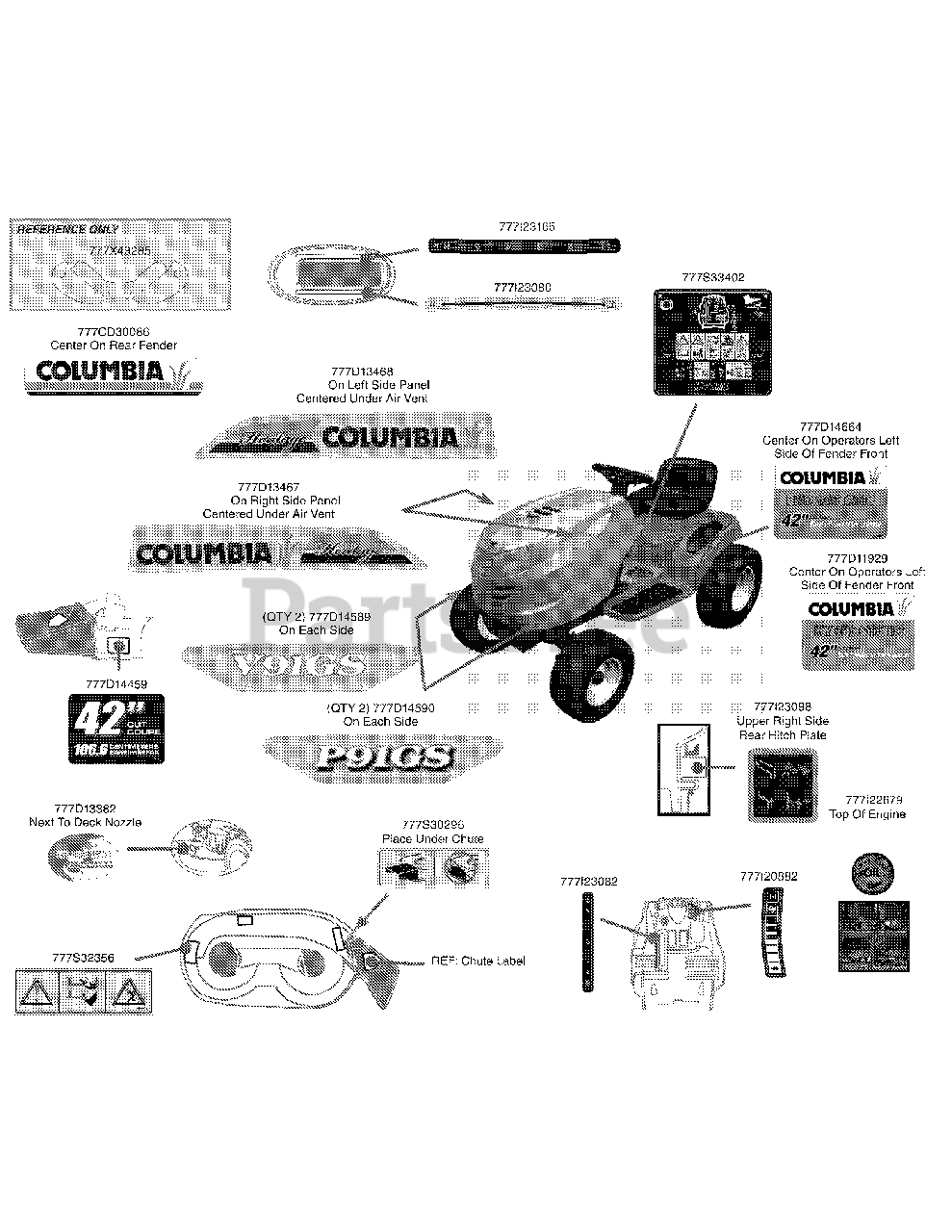

Label Map 42-Inch Parts Diagram

  • Title
777X43285

White Outdoor 777X43285

LABEL-REFLECTOR G STYLE

$

$

Not available

777CD30086

White Outdoor 777CD30086

LABEL-REAR FENDER COLUMBIA

$

$

Not available

777D13468

White Outdoor 777D13468

LABEL-RIDER HOOD LH COLUMBIA

$

$

Not available

777D13467

White Outdoor 777D13467

LABEL-RIDER HOOD RH COLUMBIA

$

$

Not available

777D14589

White Outdoor 777D14589

LABEL-RDR:COLUMBIA V91GS

Note: 13AV91GS897

$

$

Not available

777D14590

White Outdoor 777D14590

LABEL-RDR:COLUMBIA P91GS

Note: 13AP91GS897

$

$

Not available

777D14459

White Outdoor 777D14459

LABEL-RIDER DECK 42"

$

$

Not available

777D13382

MTD 777D13382

LABEL-DECK WASH

$

$

Not available

777S32356

White Outdoor 777S32356

LABEL-RIDER SAFETY

$5.99

$

Usually ships in 3-6 days

0

777S30296

White Outdoor 777S30296

LABEL-RIDER DECK:

$6.49

$

Usually ships in 3-6 days

0

777I23082

White Outdoor 777I23082

LABEL-RIDER NX-9 GAS GUAGE

$

$

Not available

777I20882

White Outdoor 777I20882

LABEL-DASH THROTTLE

$8.49

$

Usually ships in 3-6 days

0

777I22679

White Outdoor 777I22679

LABEL-CHECK ENG OIL

$

$

Not available

777I23098

MTD 777I23098

LABEL-HYDRO RELEASE

$

$

Not available

777D14664

White Outdoor 777D14664

LABEL-RDR:CLMBIA 42 SNGL RNG BRD

Note: 13AV91GS897

$

$

Not available

777D11929

White Outdoor 777D11929

LABEL-HYD 42" FNDR COLUMBIA

Note: 13AP91GS897

$

$

Not available

777S33402

White Outdoor 777S33402

LABEL-RDR:NX9 HYDRO OCR CHK

$

$

Not available

777I23080

MTD 777I23080

LABEL-RIDER PTO POD EXPORT

$

$

Not available

777I23165

White Outdoor 777I23165

LABEL-RIDER RT99 DECK HT POD

$10.99

$

Usually ships in 3-6 days

0
