P 91 GS (13AP91GS897) - Columbia 42" Lawn Tractor (2010) Frame & Manual PTO Parts Diagram

42" Lawn Tractor

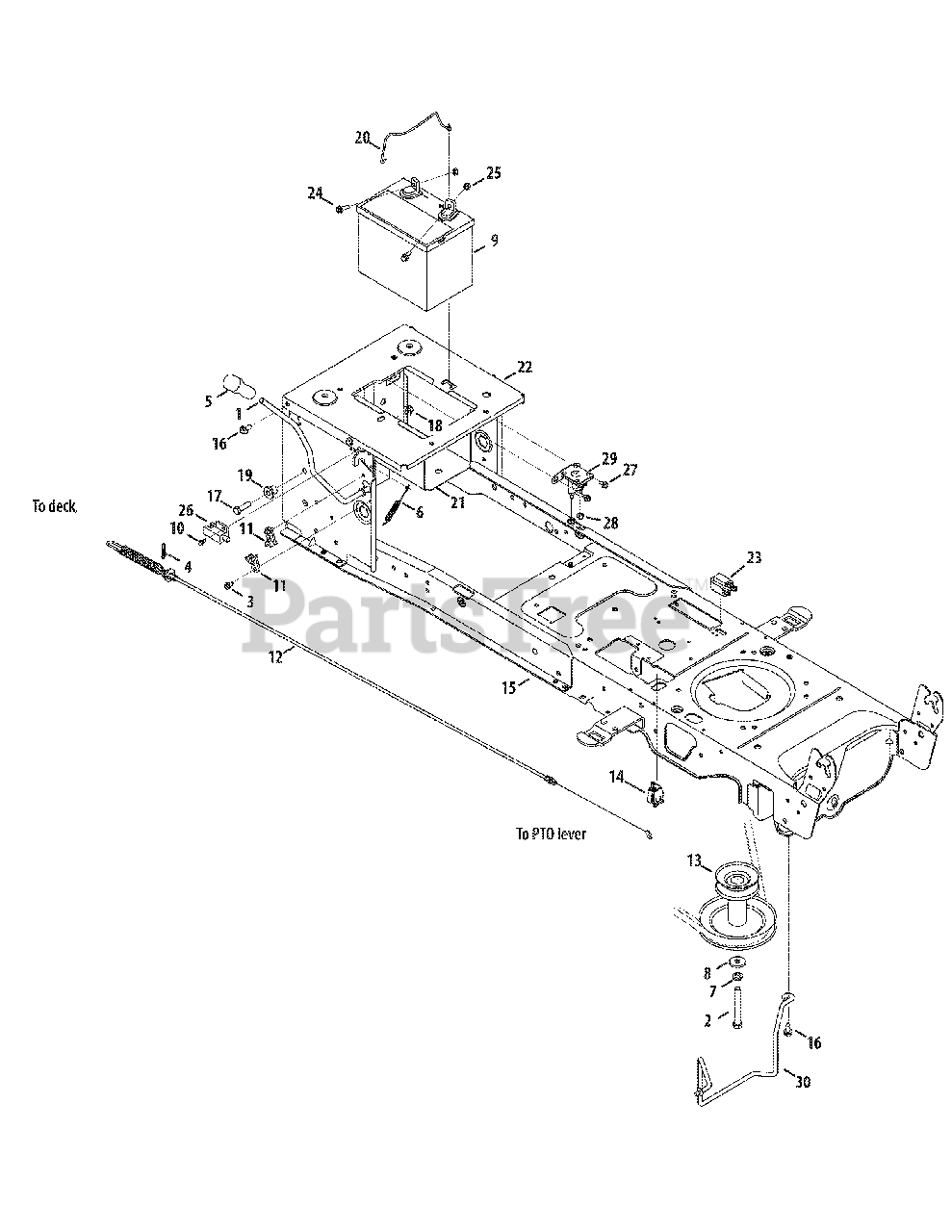

Frame & Manual PTO Parts Diagram

  • Title
1

White Outdoor 647-04151

Handle Ass’y , PTO

$22.99

$

In Stock, Qty 6

0

2

White Outdoor 710-04876

Hex Screw 7/16-20 x 3.5 Gr. 5
(Superseded to 710-04379A)

$6.49

$

In Stock, only 2 left!

0

3

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

5

White Outdoor 720-04049A

Handle Grip 3/8

$16.99

$

In Stock, only 1 left!

0

6

White Outdoor 732-0932

Extension Spring .38 Dia. x 5.6

$14.99

$

In Stock, only 4 left!

0

7

White Outdoor 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

8

White Outdoor 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

9

White Outdoor 925-1707D

Battery 245 CCA (Dry)

$

$

Not available

10

White Outdoor 738-04237A

Shoulder Screw #10-32 x .50

$6.49

$

In Stock, Qty 7

0

11

$4.99

$

In Stock, Qty 10

0

12

White Outdoor 946-04618

Deck Engagement Cable
(Superseded to 946-04618C)

$46.99

$

In Stock, Qty 20+

0

13

White Outdoor 756-04196A

Engine Pulley 3.39 x 6.12 Dia.

$90.99

$

In Stock, only 1 left!

0

14

White Outdoor 725-04807

Switch, Plunger, snap mount

$14.99

$

In Stock, only 1 left!

0

15

White Outdoor 683-04469A-0606

Lower Frame Ass’y
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

16

White Outdoor 710-04484

Hex Wash Hd. Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

18

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 738-04058

Shoulder Spacer .38 x 1.0 x .70

$4.49

$

In Stock, only 3 left!

0

20

White Outdoor 747-04121A

Battery Retainer Rod

$6.49

$

In Stock, Qty 20+

0

21

$

$

Not available

22

White Outdoor 783-06089-0606

Seat Frame Bracket

$

$

Not available

23

White Outdoor 725-04232

Switch, 3-Pole, (NC-NO-NO)-Brake

$49.99

$

In Stock, only 2 left!

0

24

White Outdoor 710-04666

Hex Hd. Flg. Scr. 1/4-20 x .75 Gr. 5

$6.99

$

In Stock, only 3 left!

0

25

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 14

0

27

White Outdoor 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

28

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

30

White Outdoor 747-05171

Belt Keeper Rod
(Superseded to 747-05171A)

$32.99

$

In Stock, Qty 8

0
