P 8527 ES A - Poulan Snow Thrower (2002) Handles Parts Diagram

Snow Thrower

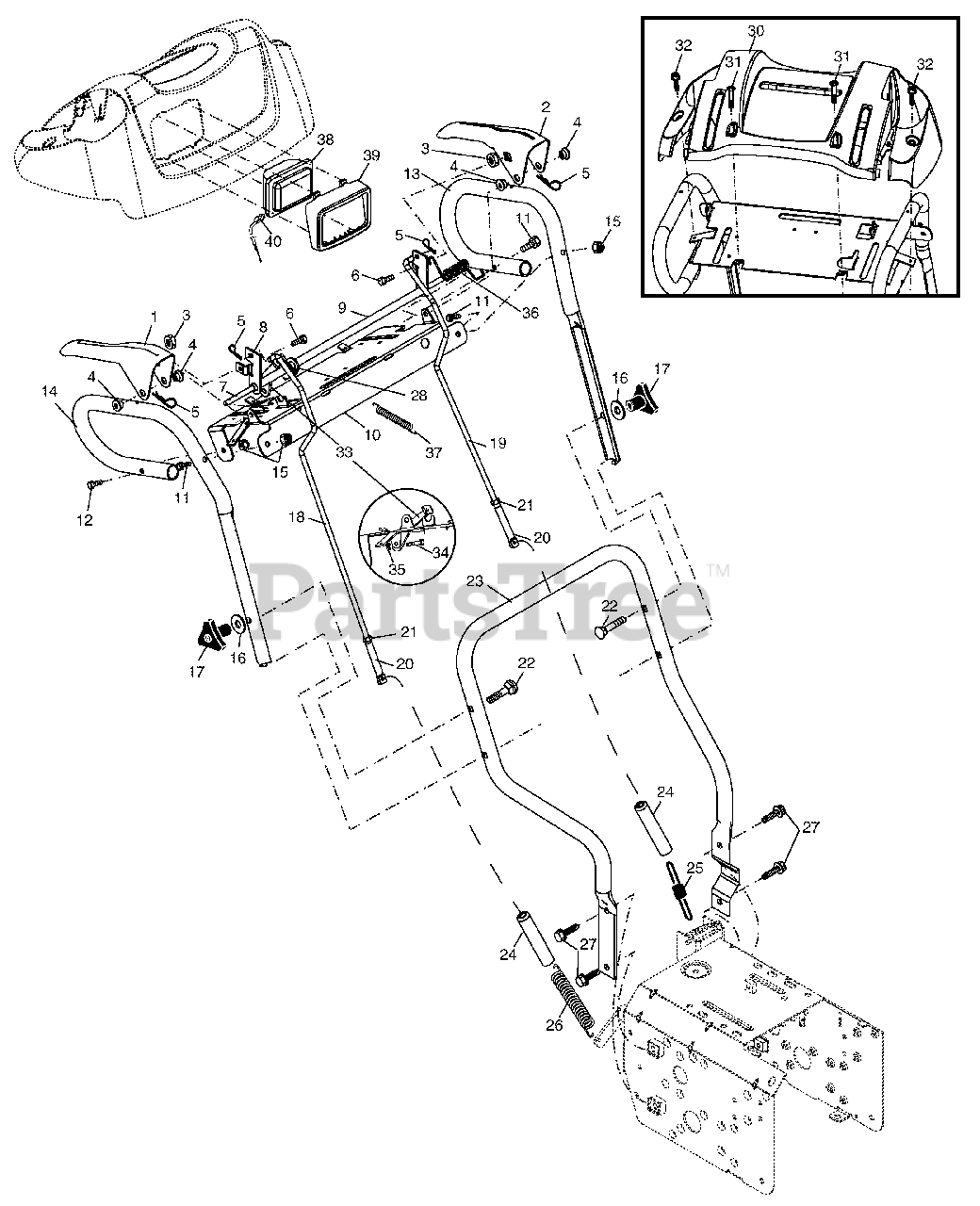

Handles Parts Diagram

  • Title

1

Electrolux/AYP 178875X479

Lever, Auger Control, RH
(Superseded to 532411423)

$27.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 178648X479

Lever, Traction Drive Control, LH
(Superseded to 532411391)

$27.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 179439

Nut, Cage 1/4-20

$2.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 178888

Bushing, Flange
(Superseded to 532178888)

$

$

Not available

5

Electrolux/AYP 169675

Retainer, Hairpin
(Superseded to 532169675)

$7.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 180402

Screw, Hex Head 1/4-20 x 3/4
(Superseded to 532199640)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 178652

Rod, Interlock
(Superseded to 532178652)

$11.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 184003

Tube Assembly, Interlock, RH
(Superseded to 532184003)

$14.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 178651

Tube Assembly, Interlock, LH
(Superseded to 532178651)

$21.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 178645X479

Panel, Control
(Superseded to 532178645)

$27.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 74780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 74780528

Screw, Hex Head 5/16-18 x 1-3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

13

Electrolux/AYP 178646X479

Handle Tube, LH

$22.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 178696X479

Handle Tube, RH

$21.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73800500

Nut, Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 19131316

Washer, Flat 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 178899

Knob, Handle
(Superseded to 532178899)

$8.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 179093

Rod, Auger Control

$8.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 179098

Rod, Traction Control
(Superseded to 532179098)

$12.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 180428

End, Control Rod
(Superseded to 532180428)

$10.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 73350500

Nut, Hex, Jam 5/16-18
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 72120618

Bolt, Carriage 3/8-16 x 2-1/4
(Superseded to 872120618)

$7.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 178825X479

Handle Tube, Lower
(Superseded to 532421059)

$103.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 180447

Sleeve, Spring
(Superseded to 532180447)

$6.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 180926

Spring, Traction Drive
(Superseded to 532180926)

$7.49

$

In Stock, Qty 7

0

26

Electrolux/AYP 178669

Spring, Auger Control
(Superseded to 532178669)

$9.49

$

In Stock, Qty 5

0

27

Electrolux/AYP 71210616

Screw, Hex Head 3/8-16 x 1
(Superseded to 871210616)

$5.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 180494

Clip, Panel

$

$

Not available

30

Electrolux/AYP 182906

Console, Panel
(Superseded to 532182906)

$48.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 175262

Screw, Hex Head, Tapping #10-24 x 1-1/4
(Superseded to 532175262)

$7.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 184471

Screw, Hex Head, Tapping #10-24 x 1/2
(Superseded to 532184471)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 175339X008

Latch, Interlock
(Superseded to 532184111)

$4.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 183518

Bolt, Shoulder
(Superseded to 532183518)

$2.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 68038

Nut, Lock 1/4-20

$

$

Not available

36

Electrolux/AYP 178831

Spring, Torsion
(Superseded to 532178831)

$

$

Not available

37

Electrolux/AYP 178658

Spring, Interlock
(Superseded to 532193885)

$6.49

$

In Stock, only 1 left!

0

38

Electrolux/AYP 178666

Headlight, Halogen
(Superseded to 532178666)

$250.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 178668

Bezel, Headlight
(Superseded to 532178668)

$7.49

$

In Stock, Qty 11

0

40

Electrolux/AYP 180964

Harness, Headlight (Halogen)
(Superseded to 532180964)

$51.99

$

In Stock, only 3 left!

0
