P 627 ES (961980044-02) - Poulan Pro Snow Thrower (2013-07) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

Snow Thrower

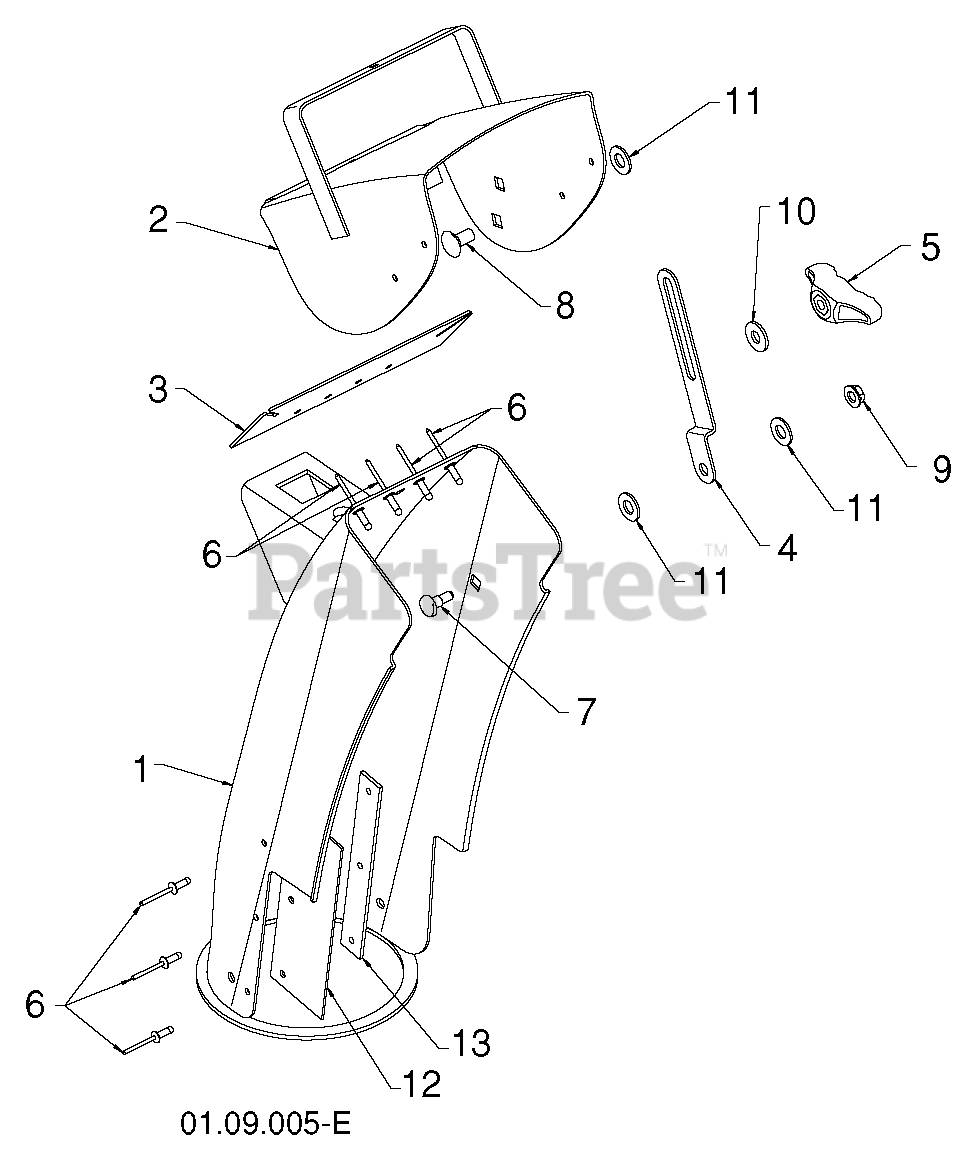

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title
1

Poulan 532443624

CHUTE.WELDMENT.BLACK

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 532184511

(Superseded to 588077803)

$102.99

$

Usually ships in 3-10 days

0

3

Poulan 532420325

SEAL.DEFLECTOR

$7.49

$

Usually ships in 3-10 days

0

4

Poulan 532184114

STRAP, CHUTE
(Superseded to 532179096)

$8.99

$

Usually ships in 3-10 days

0

5

Poulan 532191938

(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

6

Poulan 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 532185600

SHOULDER BOLT

$4.99

$

In Stock, only 2 left!

0

8

Poulan 872270505

(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

9

Poulan 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

10

Poulan 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 2 left!

0

11

Poulan 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 10

0

12

Poulan 532430324

SHIELD.SNOW.CHUTE

$20.99

$

In Stock, only 4 left!

0

13

Poulan 532421728

STRAP.SHEILD.RETAINER

$14.99

$

Usually ships in 3-10 days

0
