P 627 ES (961980044-02) - Poulan Pro Snow Thrower (2013-07) AUGER HOUSING IMPELLER Parts Diagram

Snow Thrower

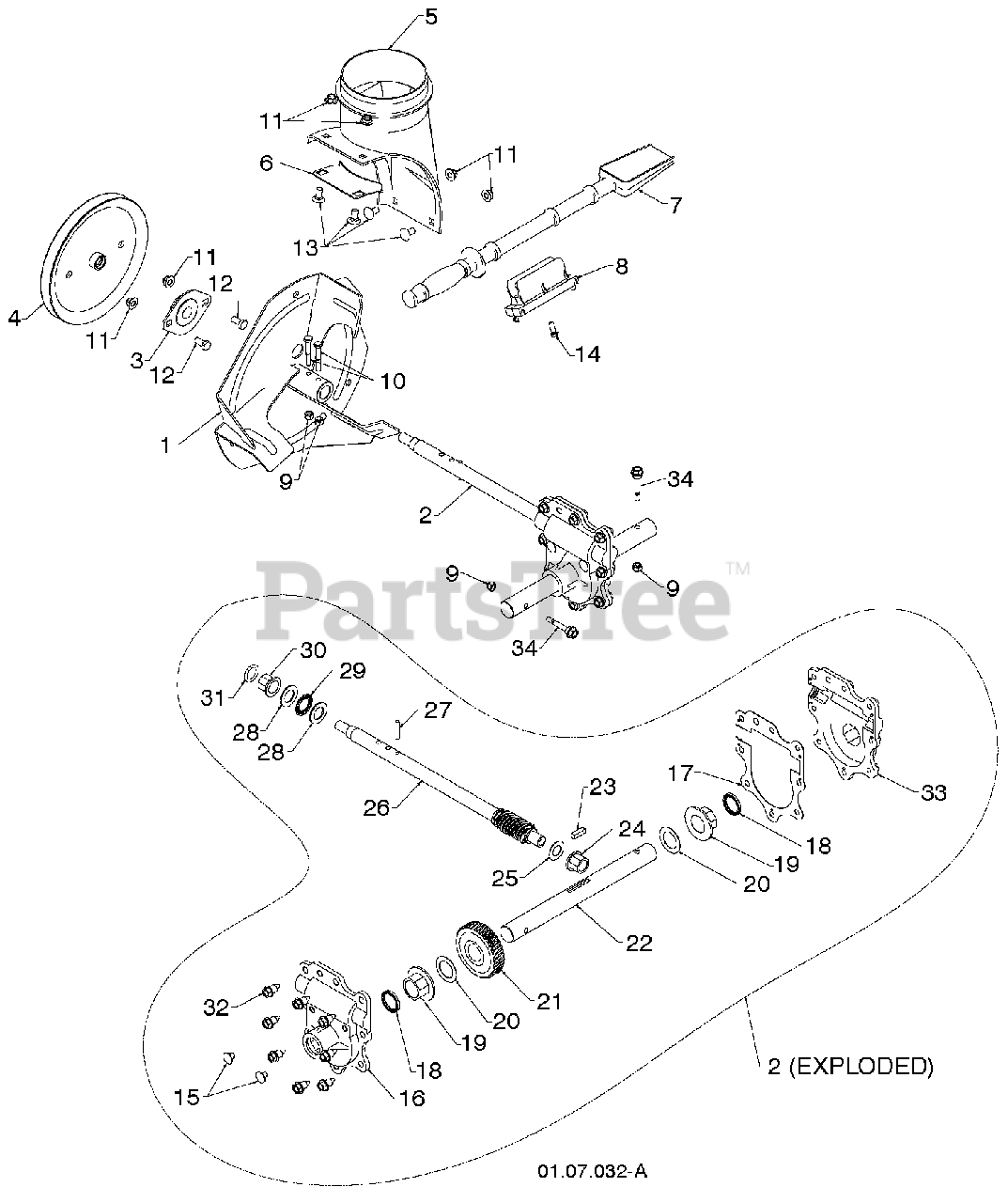

AUGER HOUSING IMPELLER Parts Diagram

  • Title

1

Poulan 532184105

Impeller Weldment, Black
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 584648301

GEARBOX.AUGER.SCREW.ON.PULLEY
(Superseded to 586854201)

$279.99

$

Usually ships in 3-10 days

0

3

Poulan 532188909

BEARING FLANGE

$28.99

$

In Stock, only 3 left!

0

4

Poulan 585093201

PULLEY.IMPELLER.7.5IN.SCREW.ON

$44.99

$

Usually ships in 3-10 days

0

5

Poulan 532442438

BASE.DISCHARGE.CHUTE
(Superseded to 585056901)

$11.99

$

Usually ships in 3-10 days

0

6

Poulan 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 532178675)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 2 left!

0

8

Poulan 532405400

CLIP.CLEANOUT.TOOL

$6.49

$

In Stock, only 1 left!

0

9

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 874780426

SCREW.HEX.HD1/4-20X

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532427942

NUTNYLOK.FLRANGE.5/16-18

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

14

Poulan 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

15

Poulan 532407760

(Superseded to 532086447)

$

$

Not available

16

Poulan 532427302

GEAR.BOX.COVER.RIGHT.SIDE

$42.99

$

Usually ships in 3-10 days

0

17

Poulan 532427345

GASKET.GEAR.BOX

$6.49

$

In Stock, only 1 left!

0

18

Poulan 532407770

(Superseded to 532174698)

$

$

Not available

19

Poulan 532407762

(Superseded to 532174701)

Note: RH

$

$

Not available

20

Poulan 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

21

Poulan 532407763

(Superseded to 532174659)

$279.99

$

Usually ships in 3-10 days

0

22

Poulan 532407764

(Superseded to 532174657)

$68.99

$

Usually ships in 3-10 days

0

23

Poulan 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

24

Poulan 532407758

(Superseded to 532174686)

$

$

Not available

25

Poulan 532174683

WASHER, THRUST 5/8

$7.99

$

Usually ships in 3-10 days

0

26

Poulan 584648401

SHAFT INOUT 1/2-20
(Superseded to 586854201)

$279.99

$

Usually ships in 3-10 days

0

27

Poulan 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 7836M)

$

$

Not available

28

Poulan 532174681

WASHER, THRUST 3/4

$14.99

$

In Stock, only 3 left!

0

29

Poulan 532174684

BEARING TRUST 3/4 NTA-1220

$9.99

$

In Stock, only 2 left!

0

30

Poulan 532407769

BUSHING, FLANGE 3/4
(Superseded to 407769)

$2.99

$

Usually ships in 3-10 days

0

31

Poulan 532407768

O-RING

$6.49

$

In Stock, only 2 left!

0

32

Poulan 532407767

(Superseded to 532150078)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 532427317

GEAR.BOX.COVER.LEFT.SIDE

$42.99

$

Usually ships in 3-10 days

0

34

Poulan 532192090

BOLT.SHOULDER.SHEAR.1/4-20.
(Superseded to 588077502)

$5.99

$

In Stock, Qty 15

0
