P 61 GH (13AP61GH897) - Columbia 46" Lawn Tractor (2009) Seat & Fender Assembly Parts Diagram

46" Lawn Tractor

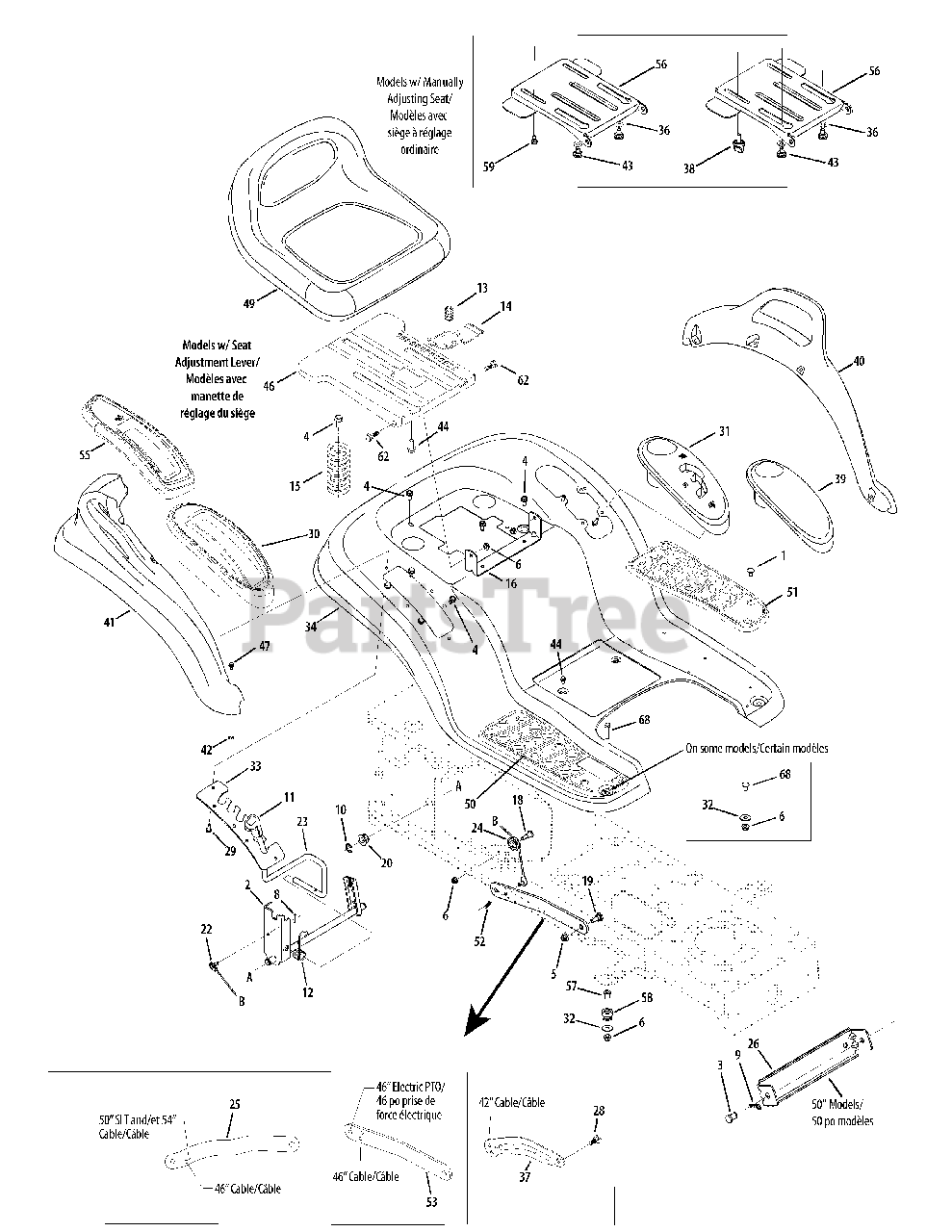

Seat & Fender Assembly Parts Diagram

  • Title

1

White Outdoor 710-0451

Carriage Bolt 5/16 x 18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 683-04223-0637

Lift Shaft Assembly(42" and 46" Deck)

$

$

Not available

3

White Outdoor 911-0332

Clevis Pin

$16.99

$

In Stock, Qty 16

0

4

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-04065

Hex Flange Locknut 3/8-16 Gr. F,Nylon

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-04063

Hex Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-3004A

Flg. L-Nut 5/16-18 Gr. 5

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 914-0104

Int. Cotter Pin 5/16 Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 914-04023

Internal Cotter Pin .080 x 1.5625
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

10

White Outdoor 716-0106A

E-ring

$5.49

$

In Stock, only 2 left!

0

11

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

12

White Outdoor 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

White Outdoor 732-04563

Compression Spring .68 x 1.065 x .055

$5.49

$

In Stock, only 2 left!

0

14

White Outdoor 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 1 left!

0

15

White Outdoor 732-04561

Compression Spring 1.71 x 3.735 x .238

$16.99

$

Usually ships in 3-6 days

0

16

White Outdoor 783-06088-0606

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$21.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0138A

Shoulder Scr. .437 Dia x .47

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 938-0380

Shoulder Screw .500 x .25 (46"/50")
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

20

White Outdoor 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 20+

0

22

White Outdoor 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

White Outdoor 747-04447

Lift Handle

$44.99

$

In Stock, only 3 left!

0

24

White Outdoor 756-1154

Roller Pulley

$7.99

$

In Stock, only 1 left!

0

25

White Outdoor 783-04963A-0637

Arm Lift (46" deck w/manual PTO & 50" deck)

$26.99

$

Usually ships in 3-6 days

0

26

White Outdoor 783-0720C-0637

Deck Stabilizer Bracket

$45.99

$

In Stock, only 2 left!

0

28

White Outdoor 738-04130

Shoulder Screw .625 x .175: 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

29

White Outdoor 710-0895

Hex Scr. 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

30

White Outdoor 731-06795

Lift Lever Cover

$24.99

$

Usually ships in 3-6 days

0

31

White Outdoor 931-2104C

Shift Lever Cover w/Cup Holder

$35.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-3078

Flat Washer .344 ID x 1.0

$4.49

$

In Stock, only 4 left!

0

33

White Outdoor 783-0677B-0637

Lift Adjustment Bracket

$

$

Not available

34

White Outdoor 783-06246-0606

Fender

$

$

Not available

36

White Outdoor 936-0300

Flat Washer .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 783-04494B-0637

Deck Lift Arm RH (42" Deck)
(Superseded to 783-04494C-0637)

$21.99

$

In Stock, only 1 left!

0

37

White Outdoor 783-04711B-0637

Deck Lift Arm LH (Not Shown)
(Superseded to 783-04711C-0637)

$24.99

$

Usually ships in 3-6 days

0

38

White Outdoor 720-04061

Knob, 3/8-16 x .625

$5.49

$

In Stock, Qty 20+

0

39

White Outdoor 731-1993A

Cover w/Cup Holder

$25.99

$

Usually ships in 3-6 days

0

40

White Outdoor 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

41

White Outdoor 731-2618

RH Fender Flare

$

$

Not available

42

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

43

White Outdoor 738-04012A

Shoulder Spacer .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

44

White Outdoor 710-04482

Hex Flg. Bolt 3/8-16 x.875

$4.49

$

In Stock, Qty 16

0

45

White Outdoor 938-0296

Shoulder Bolt .437 Dia. x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 783-06049-0606

Seat Mounting Bracket

$68.99

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0932

Carriage Bolt 1/4-20 x 1.00" Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

49

White Outdoor 757-04086

High Back Seat Black
(Superseded to 757-05232)

$290.99

$

Usually ships in 3-6 days

0

50

White Outdoor 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

51

White Outdoor 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

52

White Outdoor 914-0111

Cotter Pin 3/32 dia. x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

53

White Outdoor 783-05546-0637

Arm Lift (46"/54" deck w/elec tric PTO)
(Superseded to 783-05546A-0637)

$20.99

$

In Stock, only 2 left!

0

55

N/A

Lift Lever Cover (Model 60R)

Note: Not used in this application

$

$

Not available

56

White Outdoor 783-04081C-0637

Seat Pivot Bracket, Manually Adjusted
(Superseded to 783-04081D-0637)

$41.99

$

In Stock, only 1 left!

0

57

White Outdoor 735-0690

Grommet

$11.99

$

In Stock, only 1 left!

0

58

White Outdoor 750-3310

Flg. Spacer .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0

59

White Outdoor 710-0870

Hex Wash Hd Scr. 3/8-16 x .625 Gr. 5

$6.49

$

In Stock, only 1 left!

0
