P 61 GH (13AP61GH897) - Columbia 46" Lawn Tractor (2009) Mower Deck 46 Inch Parts Diagram

46" Lawn Tractor

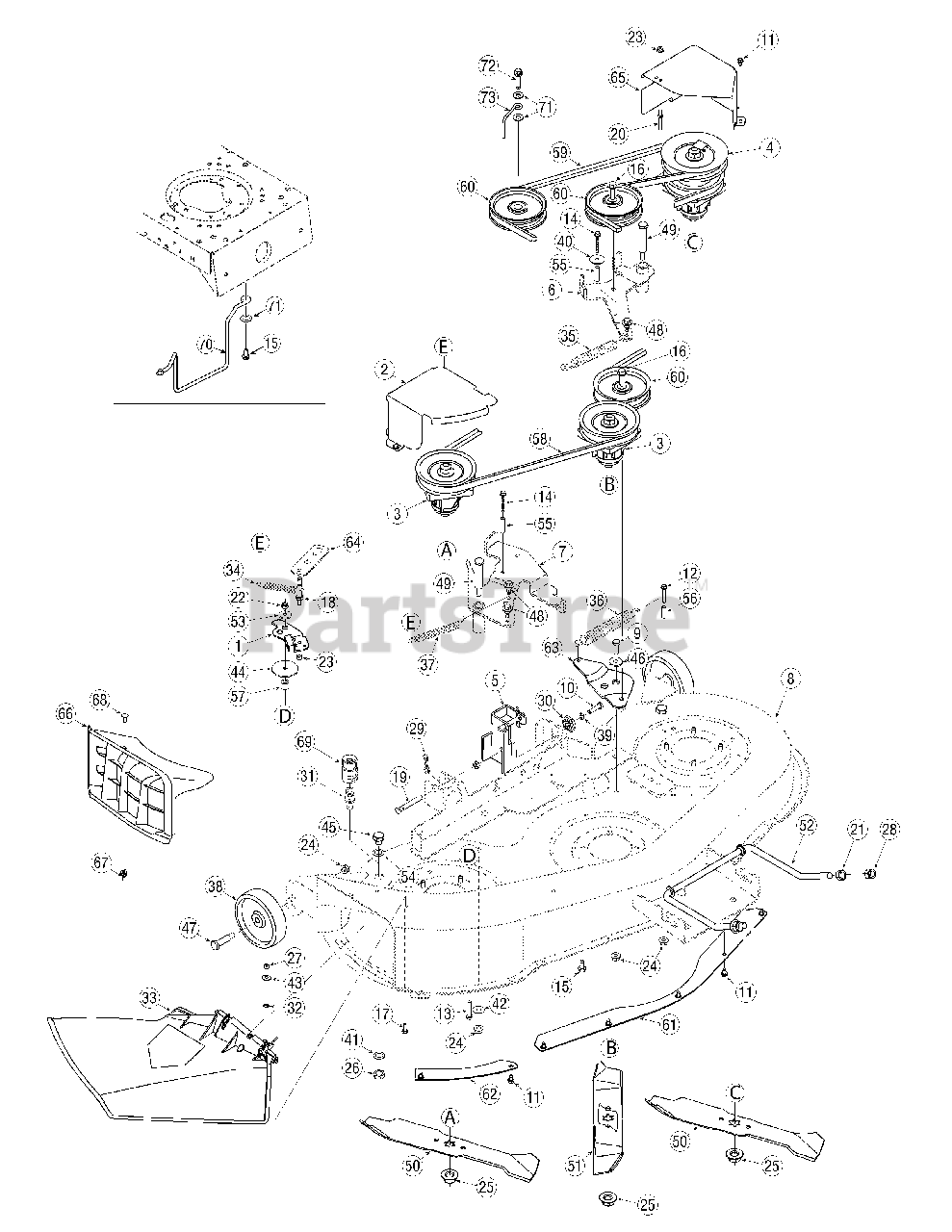

Mower Deck 46 Inch Parts Diagram

  • Title

1

White Outdoor 97116

Deck Brake Bracket Ass’y

$52.99

$

In Stock, only 1 left!

0

2

White Outdoor 17258E-0606

Belt Cover Brkt RH
(Superseded to 17258E-0637)

$54.99

$

In Stock, only 2 left!

0

3

White Outdoor 918-0430B

Spindle Assembly, 5.0 Dia.
(Superseded to 918-0240C)

$136.99

$

In Stock, only 3 left!

0

3

White Outdoor 619-04205

Deck Spindle Housing W/ HOL
(Superseded to 753-07015)

Note: Not shown

$57.99

$

In Stock, only 1 left!

0

3

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

3

White Outdoor 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 738-0927

Spindle Shaft:4.450 LG.

Note: Not shown

$36.99

$

Usually ships in 3-6 days

0

3

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

3

White Outdoor 748-0434

Spacer:.750 x 1.150 x .230

Note: Not shown

$4.49

$

In Stock, Qty 5

0

3

White Outdoor 750-04936

Spacer:.792 x 1.060 x 1.860

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

3

White Outdoor 756-1187

Deck Pulley:5.00 Dia

Note: Not shown

$38.99

$

In Stock, only 2 left!

0

4

White Outdoor 918-04134C

Spindle, Double Pulley 46" Deck
(Superseded to 918-04134D)

$164.99

$

In Stock, only 1 left!

0

4

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

4

White Outdoor 736-0315

Flat Washer:.760 x 1.50 X .120

Note: Not shown

$6.99

$

In Stock, Qty 6

0

4

White Outdoor 938-1128

Spindle Shaft:6.58 LG.

Note: Not shown

$46.99

$

In Stock, Qty 13

0

4

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

4

White Outdoor 750-04440

Spacer:.792 x 1.060 x 1.680

Note: Not shown

$6.49

$

Usually ships in 3-6 days

0

4

White Outdoor 750-04936

Spacer:.792 x 1.060 x 1.860

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

4

White Outdoor 750-1304

Spacer:.792 x 1.060 x .400

Note: Not shown

$5.99

$

Usually ships in 3-6 days

0

4

White Outdoor 756-04094

Deck Pulley:5.00 Dia x .80

Note: Not shown

$33.99

$

Usually ships in 3-6 days

0

4

White Outdoor 756-1188

Deck Pulley:5.75 Dia

Note: Not shown

$36.99

$

In Stock, Qty 8

0

5

White Outdoor 683-0254B-0606

Deck Adjustment Bracket w/Weld Nut
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

6

White Outdoor 683-04250A-0637

Idler Bracket Assembly - LH

$54.99

$

In Stock, only 1 left!

0

7

White Outdoor 683-04251A-0637

Idler Bracket Assembly - RH

$46.99

$

Usually ships in 3-6 days

0

8

White Outdoor 983-04254-0637

46" Deck (shell)

$1265.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-0514

Hex Screw 3/16 x 1.00

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

11

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0805

Hex Bolt 5/16-18 x 1,50" Lg. Gr. 5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-1026

Hex TT-Tap Scr 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

15

White Outdoor 710-04484

Hex TT Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 710-3015

Hex Cap Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 711-04636

Pin, 1/4-20, 3/8 x 2.0

$6.49

$

Usually ships in 3-6 days

0

19

White Outdoor 711-04669

Clevis Pin, 3/8 x 2.75

$4.99

$

Usually ships in 3-6 days

0

20

White Outdoor 711-0993

Belt Guard Pin
(Superseded to 911-0993)

$4.49

$

In Stock, Qty 14

0

21

White Outdoor 912-0206

Hex Nut 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

White Outdoor 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

27

White Outdoor 712-3006

Hex Nut 1/4-20 Gr. 5

$4.99

$

In Stock, Qty 17

0

28

White Outdoor 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 714-04043

Bow Tie Cotter Pin 1/8 x 1.25

$4.99

$

In Stock, Qty 12

0

30

White Outdoor 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 9

0

31

White Outdoor 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

32

White Outdoor 726-0233

Bolt Retainer 1/4" x .50" OD

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 931-1032B

Chute Deflector (Plastic)
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0

34

White Outdoor 932-0429A

Tension Spring .50 OD x 3.97" Lg.

$8.99

$

In Stock, Qty 20+

0

35

White Outdoor 732-04400

Extension Spring .75 x 6.835

$11.99

$

In Stock, only 1 left!

0

36

White Outdoor 932-0594A

Extension Spring

$14.99

$

In Stock, Qty 20+

0

37

White Outdoor 732-0814

Extension Spring

$7.99

$

In Stock, only 3 left!

0

38

White Outdoor 734-0973

Wheel Ass’y - Deck 5" x 1.38"

$12.99

$

In Stock, Qty 20+

0

39

White Outdoor 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 936-0211

Flat Washer .285 ID x 1.25 OD x .060
(Superseded to 736-0211)

$6.99

$

In Stock, only 3 left!

0

41

White Outdoor 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

42

White Outdoor 736-0258

Flat Washer .385 ID x 1.0 OD x .130

$4.49

$

In Stock, only 4 left!

0

43

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 736-0418A

Flat Washer .34 ID x 2.25 OD x .100

$10.99

$

Usually ships in 3-6 days

0

45

White Outdoor 738-04146

Screw Plug M16 x 1.50

$9.49

$

Usually ships in 3-6 days

0

46

White Outdoor 938-0347

Shoulder Spacer

$10.99

$

Usually ships in 3-6 days

0

47

White Outdoor 938-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-04091

Shoulder Screw .43 x .29, 5/16-18
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 738-04216A

Shoulder Screw .625 x 2.515 x .875

$8.49

$

In Stock, Qty 6

0

50

White Outdoor 942-0611A

Three-in-one Blade, Star 16.28"

Note: Outside

$29.99

$

In Stock, Qty 20+

0

51

White Outdoor 942-0612A

Three-in-one Blade, Star 14.88"

$29.99

$

In Stock, Qty 13

0

52

White Outdoor 747-1130B

Deck Front Hanger Rod

$41.99

$

In Stock, only 3 left!

0

53

White Outdoor 748-0234

Shoulder Spacer .25 THK

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 736-0187

Flat Washer .640 ID x 1.24 OD x .06

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 750-04456

Spacer .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

56

White Outdoor 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

57

White Outdoor 750-1320

Spacer .375 x .63 x .595

$

$

Not available

58

White Outdoor 954-0349

V-Belt

$40.99

$

In Stock, Qty 20+

0

59

White Outdoor 954-04122

Belt, V-type, à x 90.24

$41.99

$

In Stock, Qty 14

0

60

White Outdoor 756-04129

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

61

White Outdoor 783-0141-0637

Center Deck Skirt

$65.99

$

Usually ships in 3-6 days

0

62

White Outdoor 783-0142-0637

RH Deck Skirt

$48.99

$

Usually ships in 3-6 days

0

63

White Outdoor 783-04641A-0637

Idler Bracket

$

$

Not available

64

White Outdoor 783-05321-0637

Brake Bracket 46"

$

$

Not available

65

White Outdoor 783-1348D-0606

Belt Cover LH
(Superseded to 783-1348D-0637)

$50.99

$

In Stock, only 3 left!

0

66

White Outdoor 731-05264

Mulching Plug

$28.99

$

In Stock, only 2 left!

0

67

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

68

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

70

White Outdoor 747-04857

Belt Keeper Rod

$22.99

$

In Stock, Qty 9

0

71

White Outdoor 936-0300

Flat Washer .385 ID x .87 OD x .06
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

72

White Outdoor 710-1007

Hex L-Wash HD Scr 3/8-16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

73

White Outdoor 747-04530

Belt Keeper Rod, 42" Idler

$7.49

$

In Stock, Qty 20+

0
