P 61 GG (13AP61GG897) - Columbia 42" Lawn Tractor (2009) Mower Deck 42 Inch Parts Diagram

42" Lawn Tractor

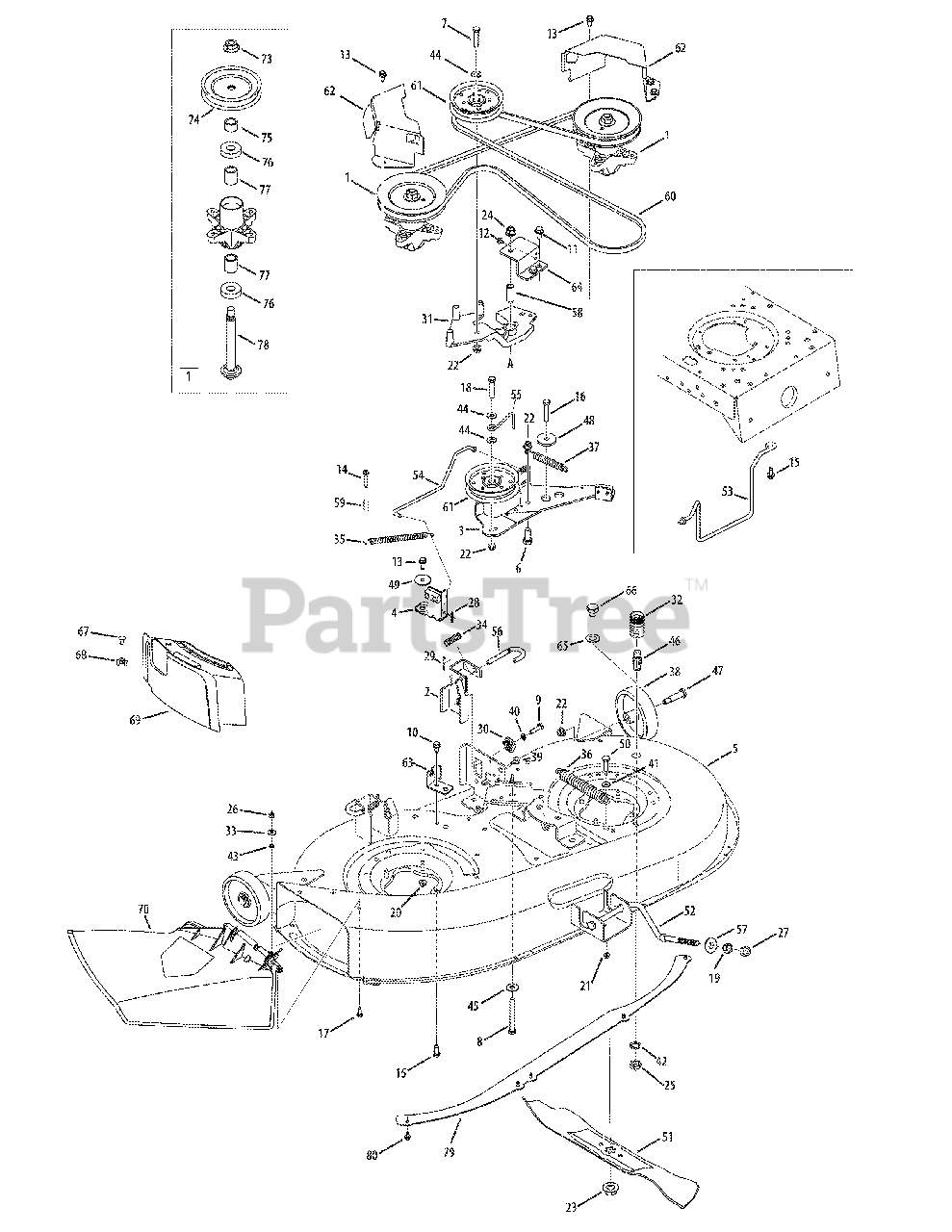

Mower Deck 42 Inch Parts Diagram

  • Title

1

White Outdoor 918-04456

Spindle Ass’y Pulley 6.3 Dia.
(Superseded to 918-04456B)

$128.99

$

In Stock, Qty 6

0

2

White Outdoor 683-0254B-0606

Deck Adjustment Bracket w/Weld Nut
(Superseded to 683-06474-0637)

$36.99

$

Usually ships in 3-6 days

0

3

White Outdoor 683-04138B-0606

Brake Assembly 42" Deck
(Superseded to 683P04138C)

$117.99

$

In Stock, only 1 left!

0

4

White Outdoor 983-04167

Deck Brake Assembly

$47.99

$

In Stock, only 2 left!

0

5

White Outdoor 983-04261-0606

Deck Ass’y 42" w/wh. brkt
(Superseded to 983-04261-0637)

$667.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

7

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0510

Hex Screw 1/4-20 X 2.00

$11.99

$

In Stock, only 1 left!

0

9

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0623

Hex S-Tapp Scr 3/8-24 X .50

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

13

White Outdoor 710-3008

Hex Hd. Cap Scr. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-3015

Hex Cap Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-3144

Hex Bolt 3/8-16 x 2.0" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 912-0206

Hex Nut 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

24

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

26

White Outdoor 712-3006

Hex Nut 1/4-20 Gr. 5

$4.99

$

In Stock, Qty 19

0

27

White Outdoor 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 14

0

31

N/A

Idler Bracket

Note: Not Used in this application

$

$

Not available

32

White Outdoor 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

33

White Outdoor 726-0233

Bolt Retainer 1/4" x .50" OD

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 932-0306A

Compression Spring .531 OD x 1.75 Lg.

$8.49

$

In Stock, only 4 left!

0

35

White Outdoor 732-04287

Extension Spring .50 dia x 6.37

$15.99

$

In Stock, only 1 left!

0

36

White Outdoor 732-0459C

Extension Spring .94 x 6.74

$18.99

$

In Stock, only 3 left!

0

37

White Outdoor 732-0470A

Ext. Spring 4.74" Lg.
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

38

White Outdoor 734-0973

Wheel Ass’y - Deck 5" x 1.38"

$12.99

$

In Stock, Qty 20+

0

39

White Outdoor 735-0271A

Bumper

$8.99

$

In Stock, only 2 left!

0

40

White Outdoor 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

41

White Outdoor 736-0173

Flat Washer .28 ID x .74 DE x .063

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

43

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 936-0300

Flat Washer .385 ID x .87 OD x .06
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 7

0

46

White Outdoor 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

47

White Outdoor 938-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-04162A

Shoulder Spacer .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

49

White Outdoor 738-04166

Shoulder Spacer .50 x .1475

$6.49

$

In Stock, Qty 8

0

50

White Outdoor 738-04272

Shoulder Screw .374 x 1.16

$

$

Not available

51

White Outdoor 942-0616A

3 in 1 Blade 21.23" Lg.

$31.99

$

In Stock, Qty 20+

0

52

White Outdoor 747-04269A

Adjustable Front Deck Rod

$27.99

$

In Stock, only 4 left!

0

53

White Outdoor 747-04857

Belt Keeper Rod 42" Deck

$22.99

$

In Stock, Qty 11

0

54

White Outdoor 747-04501

Brake Control Rod 42"

$

$

Not available

55

White Outdoor 747-04530

Belt Keeper Rod, 42" Idler

$7.49

$

In Stock, Qty 20+

0

56

White Outdoor 747-1116

Deck Re lease Pin

$12.99

$

In Stock, Qty 6

0

57

White Outdoor 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

58

White Outdoor 750-04637B

Spacer .455 x .697 x 1.585

$

$

Not available

59

White Outdoor 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

60

White Outdoor 954-04045

V-Belt

$56.99

$

In Stock, Qty 10

0

61

White Outdoor 756-04129

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

62

White Outdoor 783-04327B-0606

Belt Cov ers 6.0 dia.
(Superseded to 783-04327B-0637)

$24.99

$

In Stock, Qty 20+

0

63

White Outdoor 783-04740-0637

Cable Deck Engage Bracket

$10.99

$

In Stock, only 2 left!

0

64

White Outdoor 783-05490-0637

Support Bracket

$

$

Not available

65

White Outdoor 736-0187

Flat Washer .640 ID x 1.24 OD x .06

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 738-04146

Screw Plug M16 x 1.50

$9.49

$

Usually ships in 3-6 days

0

67

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

69

White Outdoor 731-2363

Mulching Plug

$29.99

$

In Stock, only 4 left!

0

70

White Outdoor 931-1032B

Chute Deflector (Plastic)
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

73

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

74

White Outdoor 956-1227

Deck Pulley 6.3 Dia.

$26.99

$

In Stock, only 4 left!

0

75

White Outdoor 750-04739

Spacer .820 x 1.150 x .480

$13.99

$

In Stock, Qty 6

0

76

White Outdoor 941-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

77

White Outdoor 750-1000

Spacer .080 x 1.10 x 1.322" Lg.

$4.49

$

In Stock, Qty 7

0

78

White Outdoor 938-04241

Spindle Shaft 5.50" lg.

$34.99

$

In Stock, only 1 left!

0

79

White Outdoor 753-0884

Deck Skirt 42"

$82.99

$

Usually ships in 3-6 days

0

80

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0
