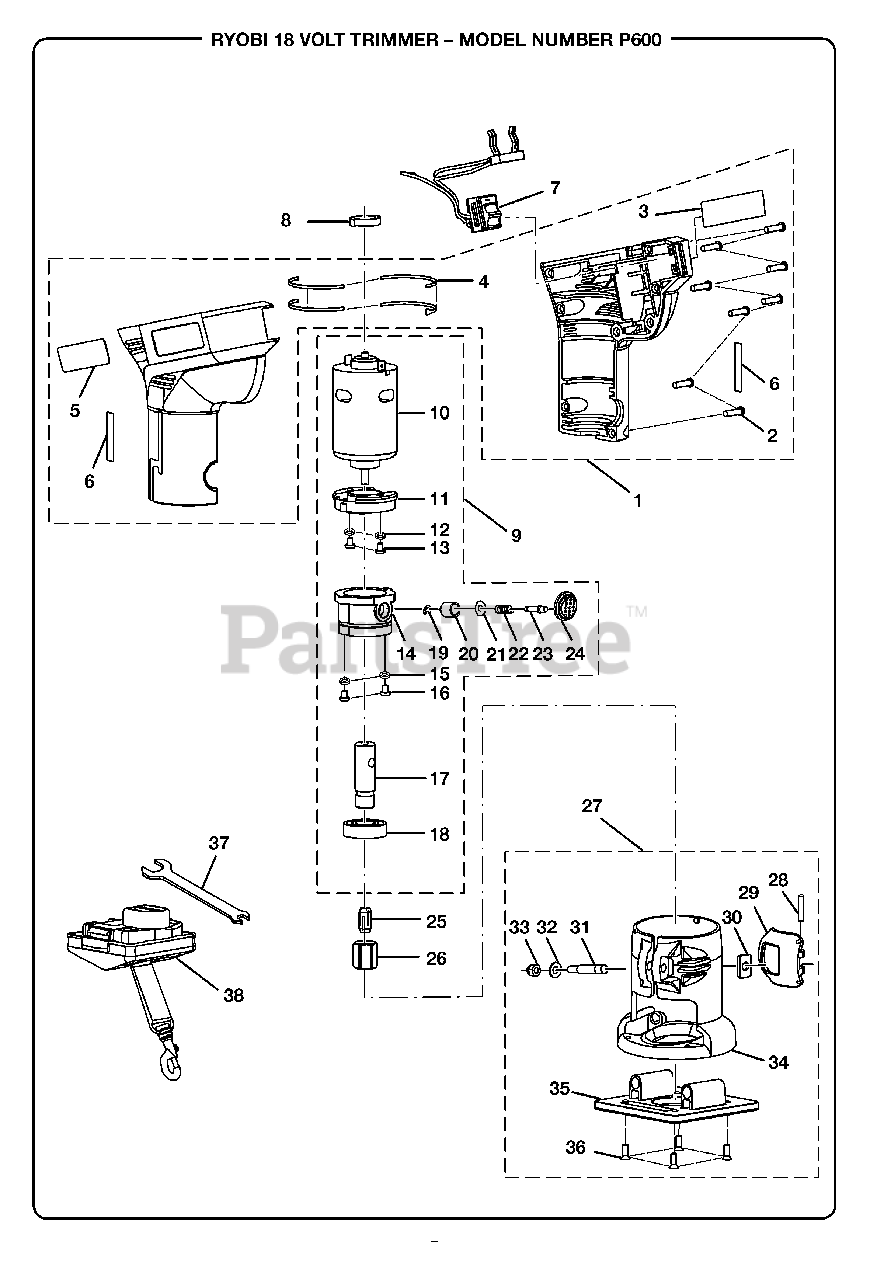

P 600 - Ryobi 18V String Trimmer Trimmer Parts Diagram

18V String Trimmer

Trimmer Parts Diagram

  • Title

1

Homelite 200202321

HOUSING ASSEMBLY W / LABELS

Note: (INC. KEY NOS. 2-6)

$

$

Currently unavailable

2

Homelite 6620805

SCREW (M4 X 16 mm PAN HD.)
(Superseded to 660208052)

Note: (Purchase locally)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 940078058

DATA LABEL

$

$

Currently unavailable

4

Homelite 5605513

FOAM RUBBER

$

$

Currently unavailable

5

Homelite 940114108

LOGO LABEL

$

$

Currently unavailable

6

Homelite 940299506

SCALE LABEL

$

$

Currently unavailable

7

Homelite 270017056

SWITCH ASSEMBLY

$

$

Currently unavailable

8

Homelite 5991501

MOTOR BACK RING

$

$

Currently unavailable

9

Homelite 200315001

MOTOR & OUTPUT SHAFT & LOCK PIN ASSEMBLY (INC. KEY NOS.10-24)

$

$

Currently unavailable

10

Homelite 7439401

MOTOR

$

$

Currently unavailable

11

Homelite 640882001

MOTOR BASE

$

$

Currently unavailable

12

Homelite 6796001

SPRING WASHER

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 6621902

SCREW (M5 X 12 mm PAN HD.)

Note: (Purchase locally)

$

$

Currently unavailable

14

Homelite 640881001

BEARING HOLDER TOP COVER

$

$

Currently unavailable

15

Homelite 6702801

SPRING WASHER

$

$

Currently unavailable

16

Homelite 6621101

SCREW (M3 X 8 mm PAN HD.)

Note: (Purchase locally)

$

$

Currently unavailable

17

Homelite 620365001

OUTPUT SHAFT

$

$

Currently unavailable

18

Homelite 671608001

BALL BEARING

$

$

Currently unavailable

19

Homelite 6725101

RETAINING RING

$

$

Currently unavailable

20

Homelite 670230003

BUSHING

$

$

Currently unavailable

21

Homelite 680661001

CURVED WASHER

$

$

Currently unavailable

22

Homelite 6723101

SPRING

$

$

Currently unavailable

23

Homelite 670229002

SHAFT LOCK PIN

$

$

Currently unavailable

24

Homelite 512947001

LOCK PIN CAP

$

$

Currently unavailable

25

Homelite 6904501

COLLET (1/4 in.)

$

$

Currently unavailable

26

Homelite 690043002

COLLET NUT

$

$

Currently unavailable

27

Homelite 200234005

BASE ASSEMBLY (INC. KEY NOS. 28-36)

$

$

Currently unavailable

28

Homelite 690401002

SPRING PIN

$

$

Currently unavailable

29

Homelite 640708003

CLAMP LEVER

$

$

Currently unavailable

30

Homelite 671352001

SQUARE WASHER

$

$

Currently unavailable

31

Homelite 620319001

ADJUST SCREW SHAFT

$

$

Currently unavailable

32

Homelite 670060001

WASHER

$

$

Currently unavailable

33

Homelite 6797401

NYLON INSERT NUT

$

$

Currently unavailable

34

Homelite 342073001

BASE SUPPORT

$

$

Currently unavailable

35

Homelite 512047002

SQUARE BASE

$

$

Currently unavailable

36

Homelite 660279004

SCREW (M4 X 12 mm FLAT HD.)

Note: (Purchase locally)

$

$

Currently unavailable

37

Homelite 690604002

WRENCH

$

$

Currently unavailable

38

Homelite 200292003

PLUG IN LANYARD

$

$

Currently unavailable

39

Homelite 200334001

WOODWORKING SUBBASE

Note: (NOT SHOWN)

$

$

Currently unavailable

Homelite 983000600

OPERATOR'S MANUAL (960223392)

$

$

Currently unavailable

Homelite 983000600R

REPAIR SHEET (REV:03) 03-09-06

$

$

Currently unavailable
