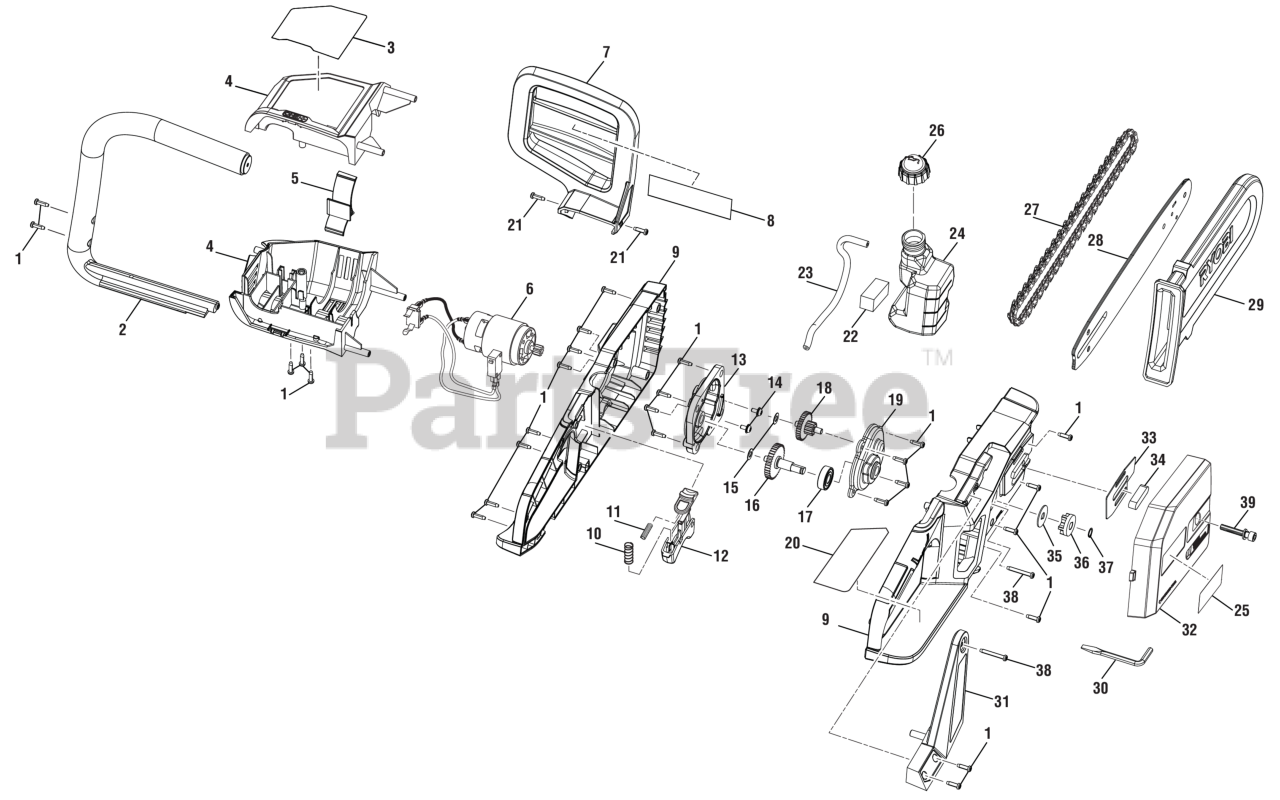

P 546 (107175013) - Ryobi 18V Chainsaw, Rev 02 (2020-08) General Assembly Parts Diagram

18V Chainsaw, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.))

$1.99

$

In Stock, only 1 left!

0

2

Homelite 529190001

Front Handle

$

$

Not available

3

Homelite 940851051

Warning Label

$

$

Not available

4

Homelite 203660001

Motor Housing Assembly

Note: (Incl. Key No. 3)

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 529217001

Wind Plate

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 203658001

Motor and Wiring Harness Assembly

$53.99

$

Usually ships in 3-7 days

0

7

Homelite 203661001

Front Handle Guard

Note: (Incl. Key No. 8)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 940657170

Icon Warning Label

$

$

Not available

9

Homelite 351430001

Housing Assembly

Note: (Incl. Key No. 20)

$23.99

$

Usually ships in 3-7 days

0

10

Homelite 679002004

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 679055011

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 203643001

Trigger Assembly

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 220308001

Gear Box Base Assembly

$

$

Not available

14

Homelite 661861001

Screw w/Washer (M4 x 8 mm)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 690060001

Washer (ID6.5 x OD13 x 0.5t)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 311125002

Output Gear and Shaft Assembly

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 679979001

Ball Bearing (6000 2RS)

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 311124002

Input Gear Assembly

$9.99

$

Usually ships in 3-7 days

0

19

Homelite 311123002

Gear Box Cover Assembly

$8.49

$

Usually ships in 3-7 days

0

20

Homelite 941588699

Data and Warning Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 661817003

Screw (M4 x 14 mm, Tamper Proof)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 563863001

Filter

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 570807005

Outlet Tube

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 580163001

Oil Tank

$4.99

$

Usually ships in 3-7 days

0

25

Homelite 941588700

Logo Label

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 203642001

Oil Cap Assembly

$

$

Not available

27

Homelite 682115001

Chain

$23.99

$

In Stock, only 3 left!

0

28

Homelite 316668001

Guide Bar

$34.99

$

Usually ships in 3-7 days

0

29

Homelite 580162001

Scabbard

$6.99

$

Usually ships in 3-7 days

0

30

Homelite T612805001

Hexagon Key

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 529189001

Front Handle Arm

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 317182001

Bar Cover w/Chain Tensioner Assembly

Note: (Inc. Key No. 25)

$

$

Currently unavailable

33

Homelite 563865002

Rubber Gasket

$1.99

$

Usually ships in 0 days

0

34

Homelite 563443001

Rubber Plate

$1.99

$

In Stock, only 1 left!

0

35

Homelite 690733001

Cover Plate (Internal "D" Washer)

$1.99

$

In Stock, Qty 7

0

36

Homelite 610323001

Sprocket

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 670608002

Retaining Ring

$1.99

$

In Stock, Qty 6

0

38

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

39

Homelite 660058002

Screw w/Washer (M6 x 35 mm, Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

Homelite 998000273

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
