P 5452 VNM (107548101) - Ryobi 18V Pruning Chainsaw, Rev 03 (2022-11) General Assembly Parts Diagram

18V Pruning Chainsaw, Rev 03

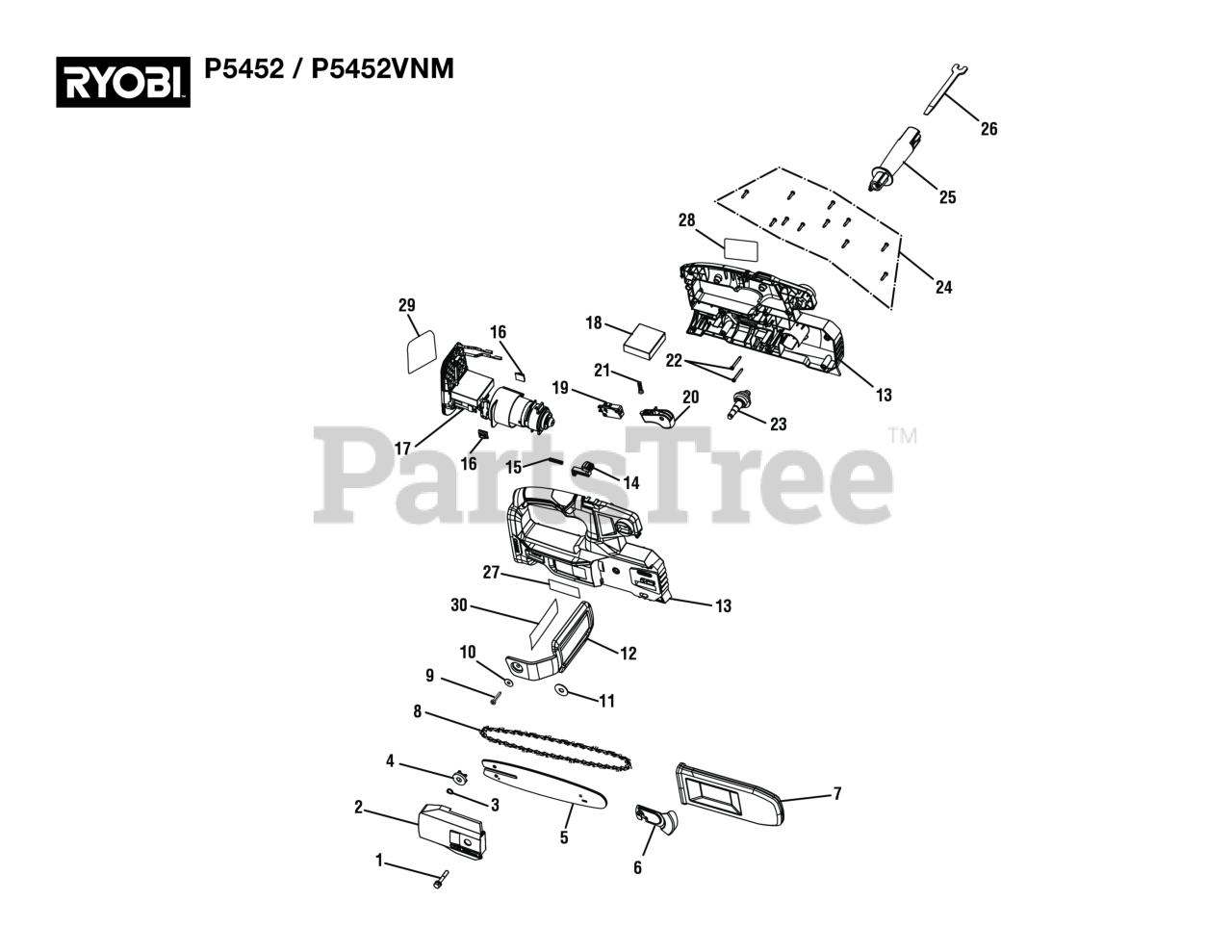

General Assembly Parts Diagram

  • Title

1

Homelite 663095001

Screw with Spring Washer (M6 x 35 mm)

$1.99

$

Usually ships in 0 days

0

2

Homelite 316689001

Sprocket Cover Assembly

$23.99

$

Usually ships in 3-7 days

0

3

Homelite 670608002

Retaining Ring

$1.99

$

In Stock, Qty 6

0

4

Homelite 610323001

Sprocket

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 316670001

Guide Bar

$33.99

$

Usually ships in 3-7 days

0

6

Homelite 205436001

Safety Tip Assembly

$6.99

$

Usually ships in 0 days

0

7

Homelite 580788001

Scabbard

$

$

Currently unavailable

8

Homelite 682502001

8 in. Saw Chain

$

$

Currently unavailable

9

Homelite 662053001

Screw (T20 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 671072001

Flat Washer
(Superseded to 12789)

$

$

Not available

11

Homelite 690733001

Cover Plate (Internal "D" Washer)

$1.99

$

In Stock, Qty 7

0

12

Homelite 205422001

Front Guard Assembly (Inc. Key No. 30)

Note: (Inc. Key No. 30)

$7.49

$

Usually ships in 0 days

0

13

Homelite 205434001

Housing Assembly (Inc. Key Nos. 27-28)

Note: (Inc. Key Nos. 27-28)

$27.99

$

Usually ships in 3-7 days

0

14

Homelite 541725002

Lock-Off

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 694143001

Compression Spring (Trigger Lock)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 570115001

Rubber Bumper

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 205435001

Motor, Gear Box, and Battery Foot Assembly (Inc. Key No. 29)

Note: (Inc. Key No. 29) | CN

$

$

Not available

17

Homelite 205435003

Motor, Gear Box, and Battery Foot Assembly (Inc. Key No. 29)

Note: (Inc. Key No. 29) | VN

$109.99

$

In Stock, only 1 left!

0

18

Homelite 699228001

Balance Plate

$13.99

$

Usually ships in 3-7 days

0

19

Homelite 760745001

On/Off Switch

$14.99

$

Usually ships in 3-7 days

0

20

Homelite 541724002

Trigger

$1.99

$

Usually ships in 0 days

0

21

Homelite 679973003

Trigger Spring

$

$

Currently unavailable

22

Homelite 660208104

Screw (M4-18 x 30 mm, T15 Torx Soc. Hd.)

$1.99

$

In Stock, only 2 left!

0

23

Homelite 316943001

Output Shaft Assembly

$

$

Currently unavailable

24

Homelite 662028001

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Currently unavailable

25

Homelite 205423001

Front Handle Assembly

$3.99

$

Usually ships in 3-7 days

0

26

Homelite 639255002

Wrench

$

$

Currently unavailable

27

Homelite 941588720

Logo Label

$

$

Currently unavailable

28

Homelite 941588717

Warning Label

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 941588719

Data Label

Note: CN

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 941097153

Data Label

Note: VN

$1.99

$

Usually ships in 0 days

0

30

Homelite 941041004

Icon Warning Label

$

$

Currently unavailable

Homelite 998000269

Operator's Manual

Note: Not Shown:

$

$

Currently unavailable
