P 53-190 DWA (961410179-04) - Electrolux/AYP Walk-Behind Mower (2010-07) FRAME Parts Diagram

Walk-Behind Mower

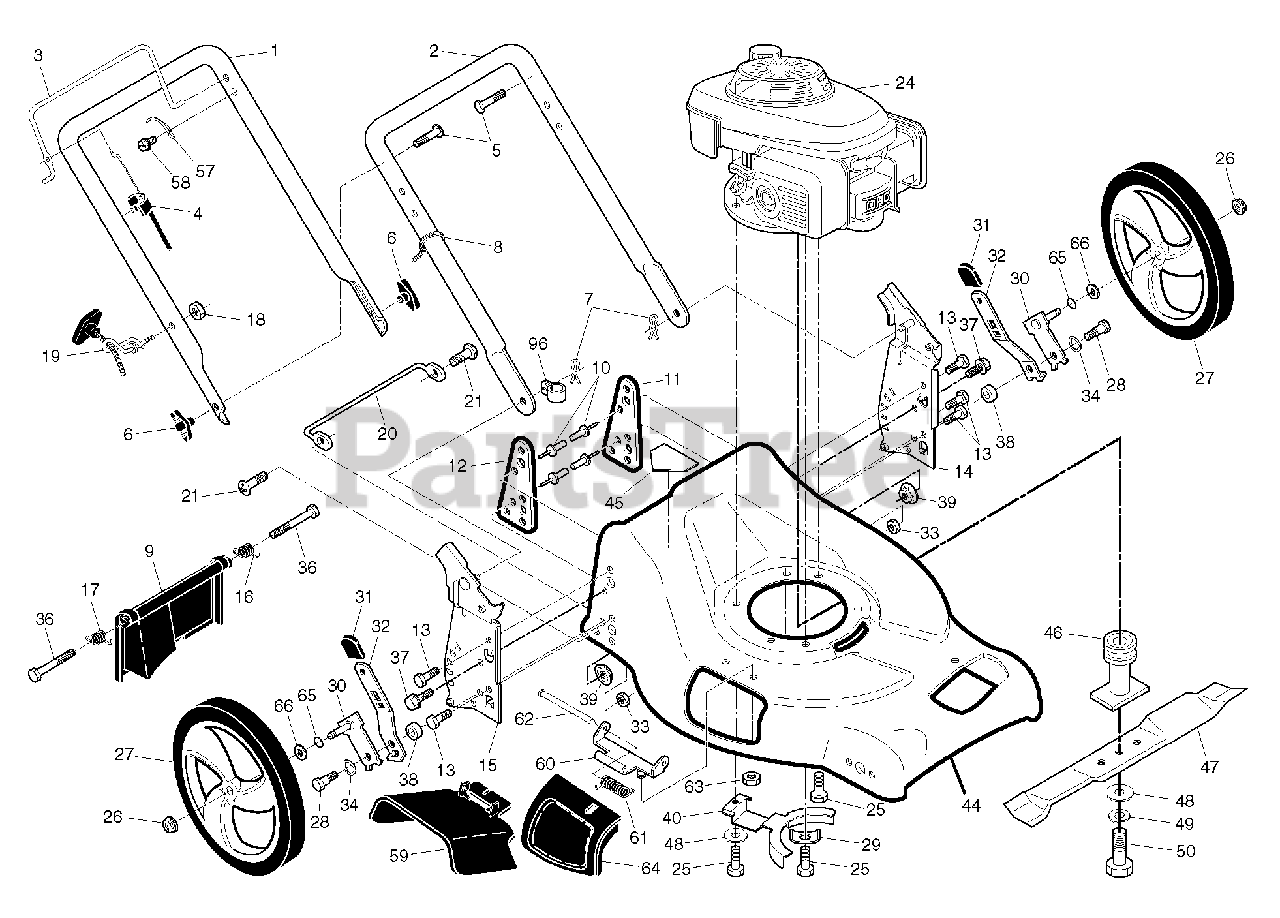

FRAME Parts Diagram

  • Title

1

Electrolux/AYP 532427904

HANDLE.UP.DSTR.EZ.FG/RGD.CREAS

$30.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532434514

HANDLE.LOWER.D-STRAIT.BLACK

$

$

Not available

3

Electrolux/AYP 532427905

BAIL.DSTRT.AW.CREAS.BLACK

$15.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532183567

CABLE.MZR

$17.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532406985

REAR DOOR ASSEMBLY
(Superseded to 532401812)

$34.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532410540

SUPPORT BRACKET LH
(Superseded to 532406573)

$7.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532410542

BRACKET.SUPRT.RH.21.FWGD

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532434513

Handle Bracket Assembly, RH 21 Fgd HW

$13.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532434512

BRACKET.ASM.HNDL.RT.21.FGD.HW

$14.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532405417

SPRING.REAR.DOOR.EZ.21.LT

$9.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532405418

SPRING.REAR.DOOR.EZ.21.RT

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 532436119

FOOT.GUARD.21.DOM/FGD.CE.10

$15.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

24

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: HONDA GVC190-S3H2

$

$

Not available

25

Electrolux/AYP 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532432747

Wheel, 12 X 1.75 MAG2 RAD3 Gray BB

$53.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 7

0

29

Electrolux/AYP 532125078

Engine Washer, Bzp

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532413141

ARM.ASM.AXLE.REAR.5/9.POS.BZP

$7.49

$

In Stock, only 3 left!

0

31

Electrolux/AYP 532087877

KNOB PM

$6.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 532409889

SELECTOR SPRING
(Superseded to 532401626)

$4.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532401630

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 532184193

BOLT

$

$

Not available

37

Electrolux/AYP 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

39

Electrolux/AYP 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

44

Electrolux/AYP 532417094

NO LONGER AVAILABLE

Note: (Includes Key Numbers 10 11 12 and 45)

$

$

Not available

45

Electrolux/AYP 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

46

Electrolux/AYP 532432279

ADAPTER.BLADE.25MM.VS.LOW.CUT
(Superseded to 583478001)

$34.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532199377

BLADE.21.PUSH
(Superseded to 539113233)

$27.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

49

Electrolux/AYP 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

59

Electrolux/AYP 532175071

DISCHARGE DEFLECTOR

$20.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 532175735

HINGE BRACKET ASSEMBLY

$

$

Not available

61

Electrolux/AYP 532193000

SPRING.TORSION

$7.49

$

In Stock, only 4 left!

0

62

Electrolux/AYP 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 11

0

63

Electrolux/AYP 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532175066

DOOR.MULCH.21.REAR

$11.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 532088348

WASHER PM

$7.49

$

In Stock, only 3 left!

0

96

Electrolux/AYP 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

--

Electrolux/AYP 532182191

NO LONGER AVAILABLE

$3.49

$

Usually ships in 3-10 days

0
