P 520 DX (967985201) - Husqvarna Swedish Riding Mower (2021-10) FUEL SYSTEM Parts Diagram

Swedish Riding Mower

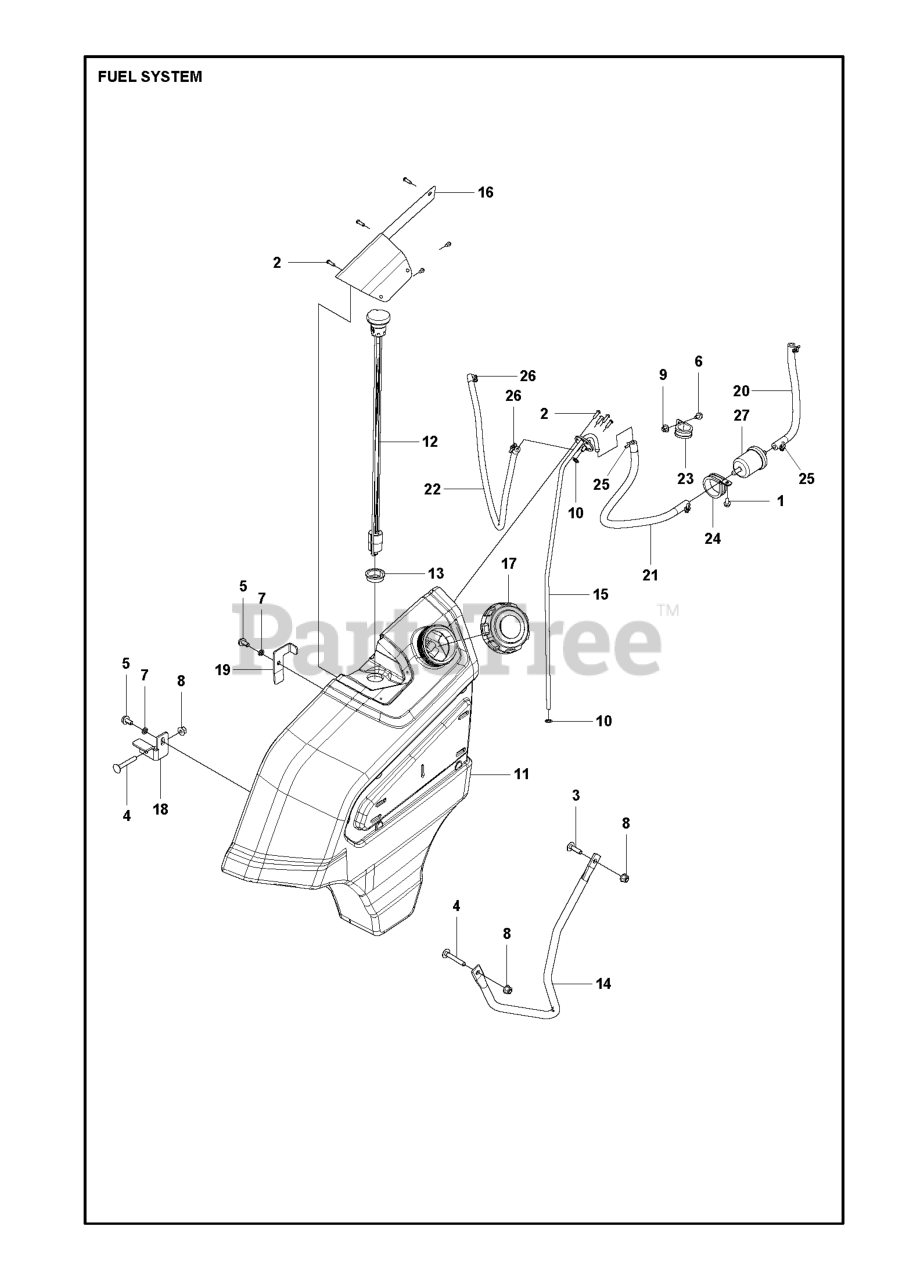

FUEL SYSTEM Parts Diagram

  • Title
23

Husqvarna 574531201

HOSE CLAMP

$

$

Not available

4

Husqvarna 535423802

NEEDS DESCRIPTION

$

$

Not available

11

Husqvarna 597073501

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 599334902

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 574531202

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 597485601

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 597076201

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 579570101

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 585510507

NEEDS DESCRIPTION

$

$

Currently unavailable

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 597074101

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 576645704

NUT FLANGE

$

$

Currently unavailable

19

Husqvarna 597079301

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 597082201

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 544282606

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 535423805

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 576645703

NUT FLANGE

$

$

Currently unavailable

17

Husqvarna 599643001

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 544282601

RP HOSE CLAMP FUEL HOSE
(Superseded to 544282605)

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503230403

WASHER LOCK 8.7X13.5X2.5 ZN FL

$6.49

$

In Stock, Qty 7

0

27

Husqvarna 576955501

NEEDS DESCRIPTION

$

$

Currently unavailable

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

2

Husqvarna 502435301

SCREW ITXPANT T50X16 ZN/FE (A

$2.49

$

Usually ships in 3-10 days

0

13

Husqvarna 590209101

GROMMET, FUEL SENSOR

$5.99

$

In Stock, only 2 left!

0

21

Husqvarna 599334904

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 535475212

SCREW EHHFM

$6.49

$

Usually ships in 3-10 days

0
