P 520 D (966607301) - Husqvarna Swedish Riding Mower (2011) 52"/132CM CUTTING DECK Parts Diagram

Swedish Riding Mower

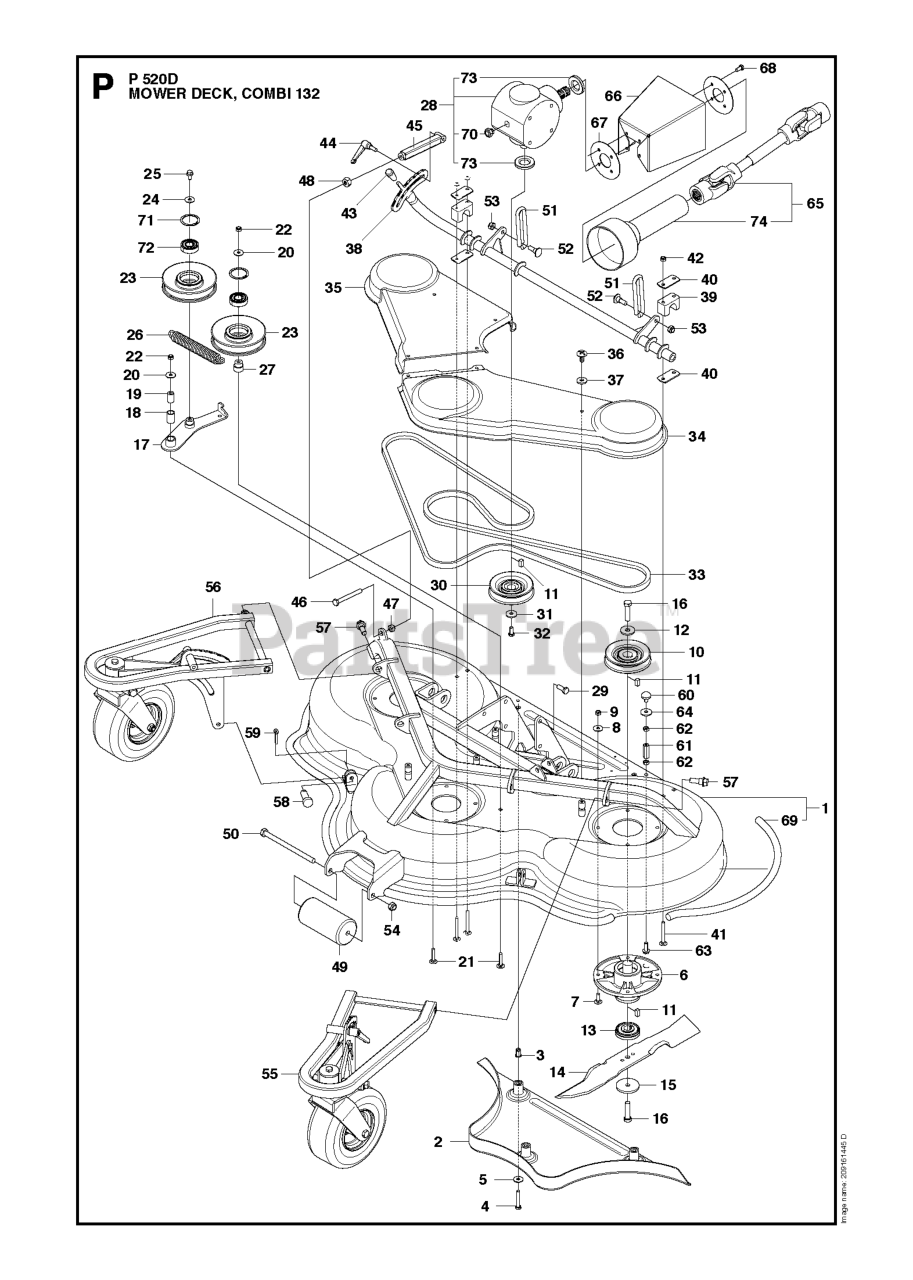

52"/132CM CUTTING DECK Parts Diagram

  • Title

15

Husqvarna 506792302

WASHER

Note: KNIVBRICKA

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 725244961

BOLT FLANGE - M8X16

Note: SKRUV,M6SF 8X16 TAPT

$1.49

$

Usually ships in 3-10 days

0

18

Husqvarna 506986103

BEARING

Note: BUSSNING

$

$

Not available

37

Husqvarna 506559701

WASHER

Note: GUMMIBRICKA

$5.99

$

In Stock, only 4 left!

0

24

Husqvarna 734116441

SPACER

Note: BRICKA SRKB 8.4/25X2

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 732211801

LOCKNUT M8

Note: LÅSMUTTER,M8-8

$4.99

$

In Stock, Qty 12

0

23

Husqvarna 523116201

NEEDS DESCRIPTION

Note: REMSPÄNNARHJUL KPL,A

$

$

Currently unavailable

42

Husqvarna 732211801

LOCKNUT M8

Note: LÅSMUTTER,M8-8

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 535484801

BUSHING

Note: BUSSNING

$26.99

$

Usually ships in 3-10 days

0

72

Husqvarna 738220419

BALL-BEARING 6204-2RS

Note: BALL BEARING

$17.99

$

In Stock, only 2 left!

0

71

Husqvarna 735314010

CIRCLIP SGH 47

Note: CIRCLIP

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 734116401

WASHER BRB 8.4X17

Note: BRICKA,BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

60

Husqvarna 501976601

ANTIVIBRATION ELEMENT

Note: VIBRATIONSISOLATOR

$

$

Not available

28

Husqvarna 544183401

BEVEL GEAR

Note: VINKELVÄXEL

$

$

Not available

40

Husqvarna 506813801

PLATE

Note: FÖRSTÄRKNINGSPLÅT

$6.99

$

Usually ships in 3-10 days

0

61

Husqvarna 544317601

NEEDS DESCRIPTION

Note: DISTANSHYLSA,SEAT

$

$

Currently unavailable

59

Husqvarna 721618301

Split Pin

Note: SAXSPRINT 3.2x25

$

$

Not available

30

Husqvarna 544184001

PULLEY SPB DP106

Note: REMSKIVA,SPB DP118

$

$

Not available

56

Husqvarna 544173202

WHEEL SUSPENSION RIGHT

Note: HJULUPPHÄNGNING,RIGHT

$

$

Not available

53

Husqvarna 732212051

NUT
(Superseded to 732212001)

Note: MUTTER M10-LOCK

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506916203

BLIND RIVET NUT

Note: BLINDNITMUTTER,M8X19

$9.49

$

Usually ships in 3-10 days

0

67

Husqvarna 522750101

NEEDS DESCRIPTION

Note: ATTACHMENT PLATE

$

$

Currently unavailable

57

Husqvarna 506895801

BOLT

Note: ANSATSSKRUV

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 535423802

NEEDS DESCRIPTION

Note: SKRUV,MVBF M8X55 GK

$

$

Not available

39

Husqvarna 504190301

NEEDS DESCRIPTION

Note: LAGERÖVERFALL,Ø25

$

$

Currently unavailable

63

Husqvarna 506570104

BOLT

Note: SKRUV EHHFM,8X20

$6.49

$

In Stock, only 1 left!

0

73

Husqvarna 525249801

NEEDS DESCRIPTION

Note: GASKET

$

$

Currently unavailable

38

Husqvarna 544175201

CROSS BAR

Note: TVÄRSTAG

$

$

Not available

22

Husqvarna 732211801

LOCKNUT M8

Note: LÅSMUTTER,M8-8

$4.99

$

In Stock, Qty 12

0

26

Husqvarna 544218105

DRAW SPRING L=122

Note: DRAGFJÄDER,L=122

$

$

Not available

10

Husqvarna 544255601

NEEDS DESCRIPTION

Note: REMSKIVA,SPB DP118 C

$

$

Currently unavailable

65

Husqvarna 576490601

NEEDS DESCRIPTION

Note: SHAFT ASSY

$

$

Currently unavailable

58

Husqvarna 721845601

Note: BULT,10X25 FZB

$

$

Not available

74

Husqvarna 522750201

NEEDS DESCRIPTION

Note: SAFETY GUARD

$

$

Currently unavailable

4

Husqvarna 725246151

BOLT

Note: SKRUV M6S 8X50 FZ

$5.99

$

In Stock, only 1 left!

0

49

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

Note: RULLE

$

$

Not available

64

Husqvarna 734116441

SPACER

Note: BRICKA SRKB 8.4/25X2

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 727645951

Screw Mvbf 8 X 40

Note: SKRUV RSQM,8X40 8.8

$

$

Not available

14

Husqvarna 586198810

BLADE REAR DISCHARGE/MULCH C13

Note: KNIV,C132

$39.99

$

Usually ships in 3-10 days

0

36

Husqvarna 506982601

SCREW

Note: SKRUV

$6.99

$

In Stock, Qty 6

0

43

Husqvarna 535438201

NEEDS DESCRIPTION

Note: KNOPP

$

$

Currently unavailable

8

Husqvarna 734116401

WASHER BRB 8.4X17

Note: BRICKA,BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

35

Husqvarna 544184601

BELT COVER C132 R

Note: REMKÅPA,C132 R

$

$

Not available

2

Husqvarna 544166202

PLUG ASSY

Note: PLUGG KPL,C132

$

$

Not available

19

Husqvarna 506992001

BUSHING

Note: RÖR,LAGRING

$

$

Not available

13

Husqvarna 535504201

Note: KNIVFÄSTE,XP

$

$

Currently unavailable

52

Husqvarna 544214301

SCREW LINK

Note: SKRUV,LINK

$

$

Not available

34

Husqvarna 544184501

NEEDS DESCRIPTION

Note: REMKÅPA,C132 L

$

$

Currently unavailable

32

Husqvarna 725245171

SCREW

Note: SKRUV M6S 8x20 FZ

$1.49

$

In Stock, Qty 5

0

45

Husqvarna 544201001

PARALLEL ROD C 132

Note: PARALLELLSTÅNG,C 132

$

$

Not available

33

Husqvarna 589535201

NEEDS DESCRIPTION

Note: REM,C132

$

$

Currently unavailable

47

Husqvarna 732212001

NUT

Note: MUTTER,M10 LOC

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 544196801

TURNING KNOB M 8

Note: VRED,M 8

$

$

Not available

70

Husqvarna 525249701

NEEDS DESCRIPTION

Note: WINDOW

$

$

Currently unavailable

55

Husqvarna 544173201

WHEEL SUSPENSION LEFT

Note: HJULUPPHÄNGNING,LEFT

$

$

Not available

50

Husqvarna 544221001

Note: SKRUV EHHM,M12X180

$

$

Currently unavailable

54

Husqvarna 732252201

Nut

Note: MUTTER M12 LOC

$1.99

$

In Stock, only 2 left!

0

7

Husqvarna 535423801

BOLT

Note: SKRUV,MVBF M8X25 GK

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 725249371

Screw M10x25

Note: SKRUV M6S 10x25 FZ

$1.99

$

Usually ships in 3-10 days

0

6

Husqvarna 535428602

NEEDS DESCRIPTION

Note: KNIVLAGRING KPL,OUTER

$

$

Currently unavailable

51

Husqvarna 544185001

LINK

Note: LÄNK

$

$

Not available

68

Husqvarna 506570104

BOLT

Note: SKRUV M8X20

$6.49

$

In Stock, only 1 left!

0

1

Husqvarna 544162502

CUTTING DECK ASSY C132

Note: KLIPPKÅPA KPL,C132

$

$

Not available

46

Husqvarna 725250971

SCREW

Note: SCREW

$8.99

$

Usually ships in 3-10 days

0

48

Husqvarna 731232051

NUT
(Superseded to 731232001)

Note: MUTTER M10 FZ

$6.49

$

In Stock, only 2 left!

0

62

Husqvarna 731231801

NUT
(Superseded to 695008078)

Note: MUTTER M6M8 FZ

$

$

Not available

66

Husqvarna 522750001

NEEDS DESCRIPTION

Note: PROTECTION

$

$

Currently unavailable

16

Husqvarna 725254251

Screw

Note: SKRUV EHHM,12X50 8.8

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 544221601

NEEDS DESCRIPTION

Note: BRICKA,8.4X29X3

$

$

Not available

17

Husqvarna 544175501

BELT TENSIONER CUTTING DECK

Note: REMSPÄNNARE,CUTTING

$

$

Not available

11

Husqvarna 506533501

KEY

Note: PLATTKIL,6X6X14

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 522523501

NEEDS DESCRIPTION

Note: REINFORCEMENT

$

$

Currently unavailable

20

Husqvarna 734116441

SPACER

Note: BRICKA SRKB 8.4/25X2

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 535429201

Note: BRICKA

$

$

Currently unavailable
