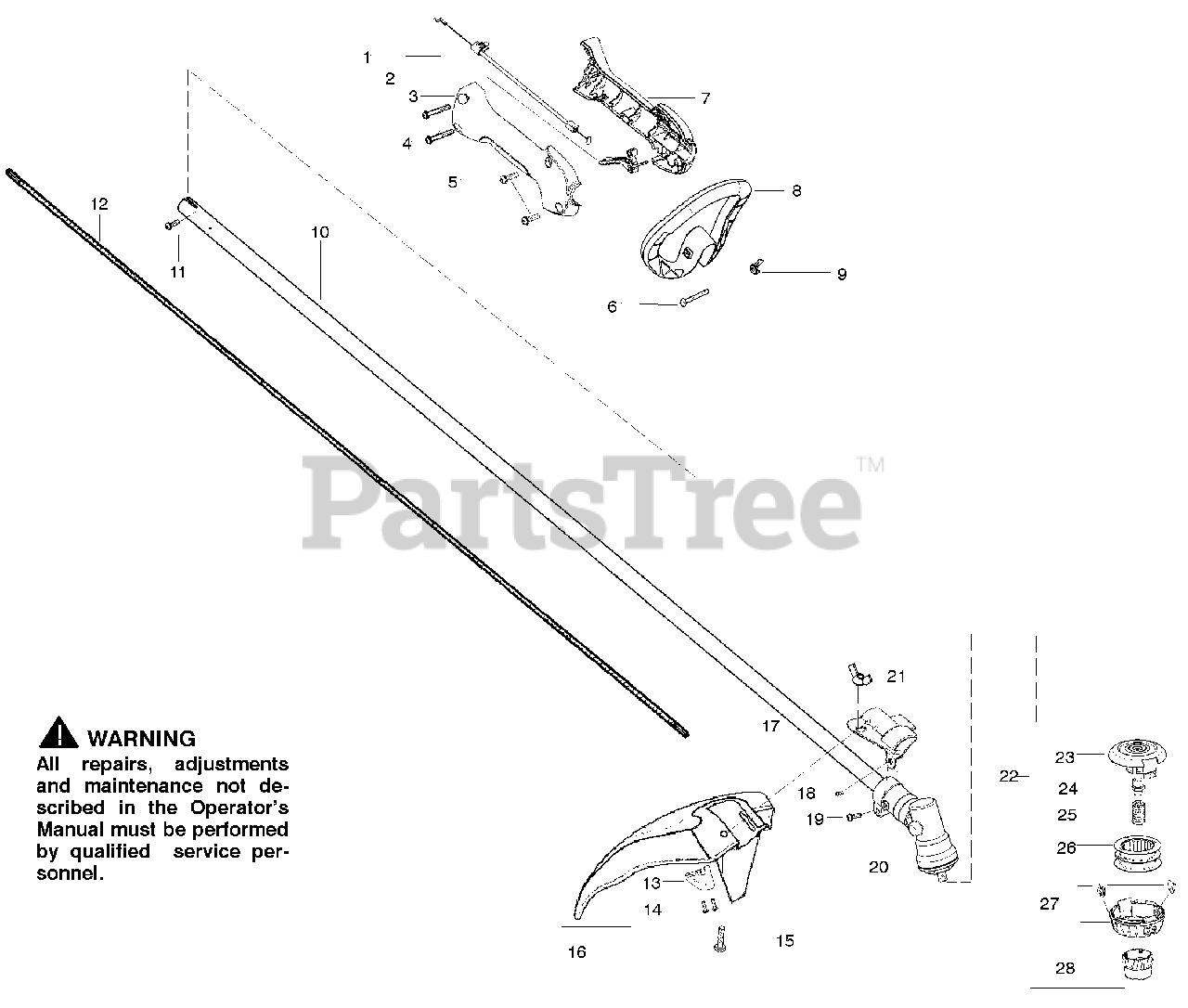

P 4500 - Poulan String Trimmer (2009-04) Shaft Parts Diagram

String Trimmer

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 530057566

Assy-Throttle Cable

$

$

Not available

2

Electrolux/AYP 530049107

Trigger

$

$

Not available

3

Electrolux/AYP 530058751

Throttle Hsg. (Right)

$

$

Not available

4

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

6

Electrolux/AYP 530015786

Bolt-Handle

$4.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 530058750

Throttle Hsg. (Left)

$

$

Not available

8

Electrolux/AYP 530058753

Assy-Handle

Note: (Incl. 6,9)

$

$

Not available

9

Electrolux/AYP 530016152

Wingnut-Handle
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 545008316

Assy-Drive Shaft Hsg.

$

$

Not available

11

Electrolux/AYP 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530096169

Shaft- Flex

$

$

Not available

13

Electrolux/AYP 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

15

Electrolux/AYP 530015820

Bolt-Shield

$4.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530071823

Kit-Shield Assy

Note: (Incl.13,14)

$

$

Not available

17

Electrolux/AYP 545150701

Bracket-Shield

$5.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530096099

Assy-Gearbox

$53.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 537419202

Assy - TNG7 Head
(Superseded to 596585805)

Note: (Incl. 23,24,25,26,27,28)

$31.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 537419302

Housing

$11.99

$

In Stock, only 2 left!

0

24

Electrolux/AYP 537419801

Adapter
(Superseded to 537419801)

$8.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 537338801

Spring
(Superseded to 537338801)

$6.49

$

In Stock, only 2 left!

0

26

Electrolux/AYP 952711631

Accy-Wound Spool

$10.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 545003365

Kit-Cover and Eyelet

$9.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 537419601

Knob
(Superseded to 537419601)

$6.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 545154719

Operator Manual

Note: Not Shown

$

$

Not available

28

Electrolux/AYP 545144405

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
